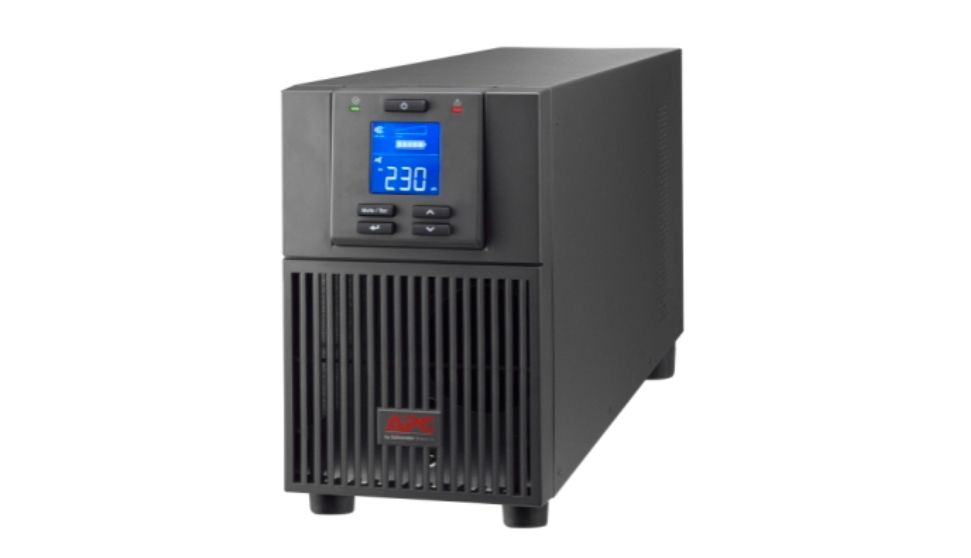

EASY UPS ON-LINE SRV 2000VA 1800
Introduction
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Specifications
| Power | |
|---|---|
| Output power | 1800 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 88% |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |

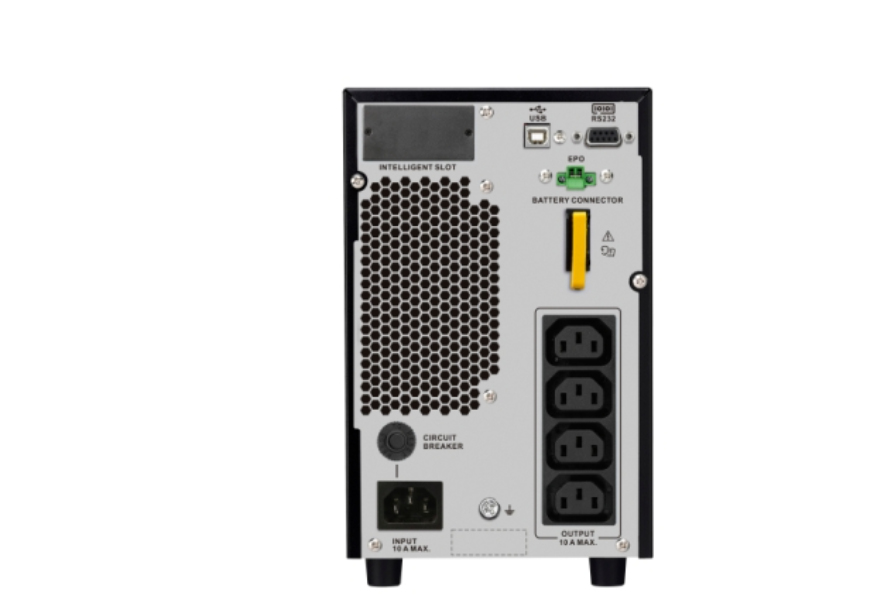

| Ports & interfaces | |
| Cable length | 1.5 m |
| USB port | Yes |
| SmartSlot | Yes |
| AC outlet types | C13 coupler |
| Power plug | C19 coupler |
| RS-232 ports | 1 |
| SmartConnect port | No |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Surge protection | Yes |
| Noise level | 50 dB |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 1800 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 285 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 88% |
| Surge protection | Yes |
| Noise level | 50 dB |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Input frequency | 50/60 Hz |
| Power source type | AC |
| Battery | |
| Battery voltage | 48 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Design | |
| International Protection (IP) code | IP20 |
| Product colour | Black |
| Cable length | 1.5 m |
| Display type | LCD |
| Technical details | |
| Output frequency | 50/60 Hz |
| Packaging content | |
| Management card included | No |
| Weight & dimensions | |
| Package width | 525 mm |
| Package depth | 235 mm |
| Package height | 355 mm |
| Weight | 17 kg |
| Width | 145 mm |
| Package weight | 18.9 kg |
| Height | 238 mm |
| Depth | 400 mm |
| Packaging data | |
| Package width | 525 mm |
| Package depth | 235 mm |
| Package height | 355 mm |
| Package weight | 18.9 kg |
| Management card included | No |
