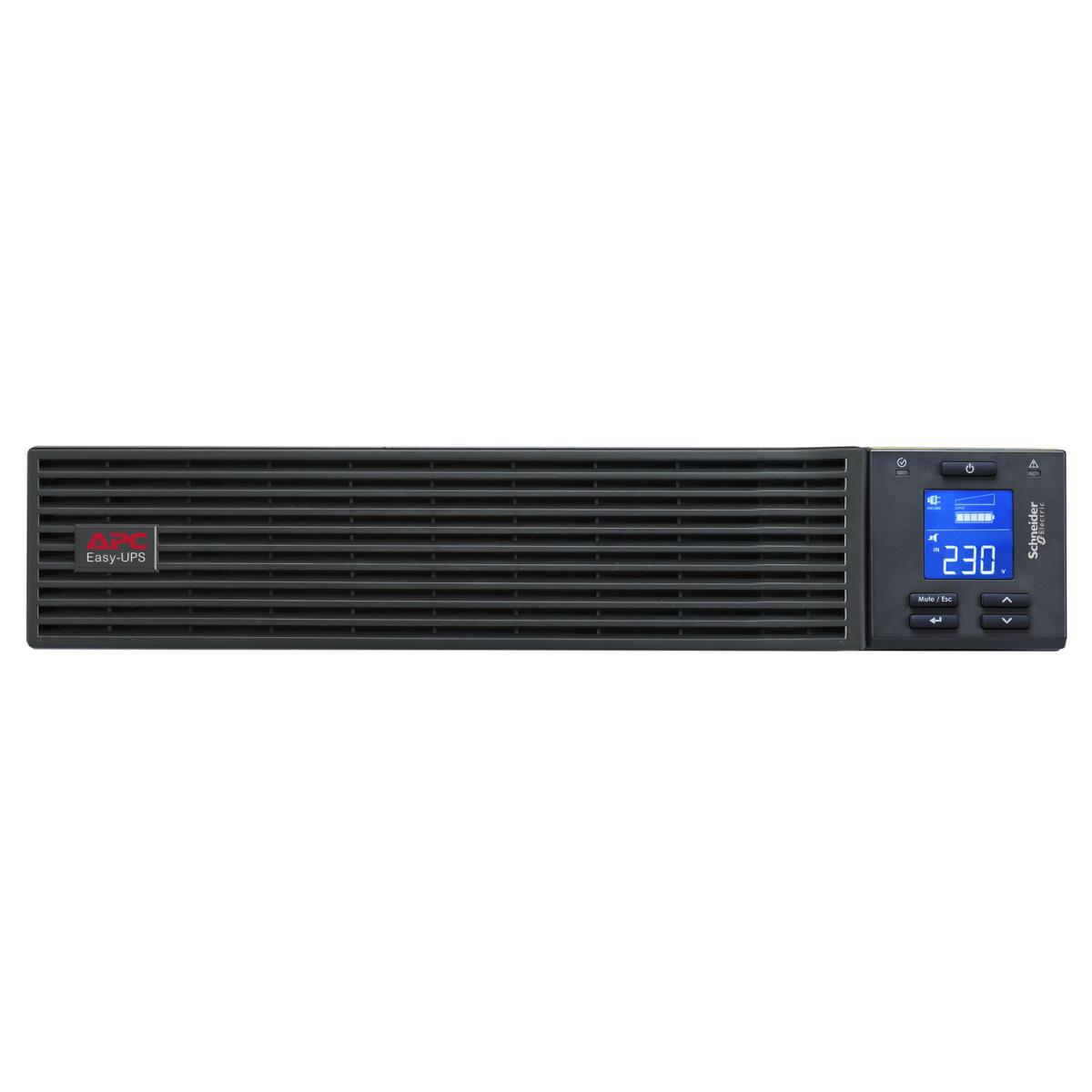

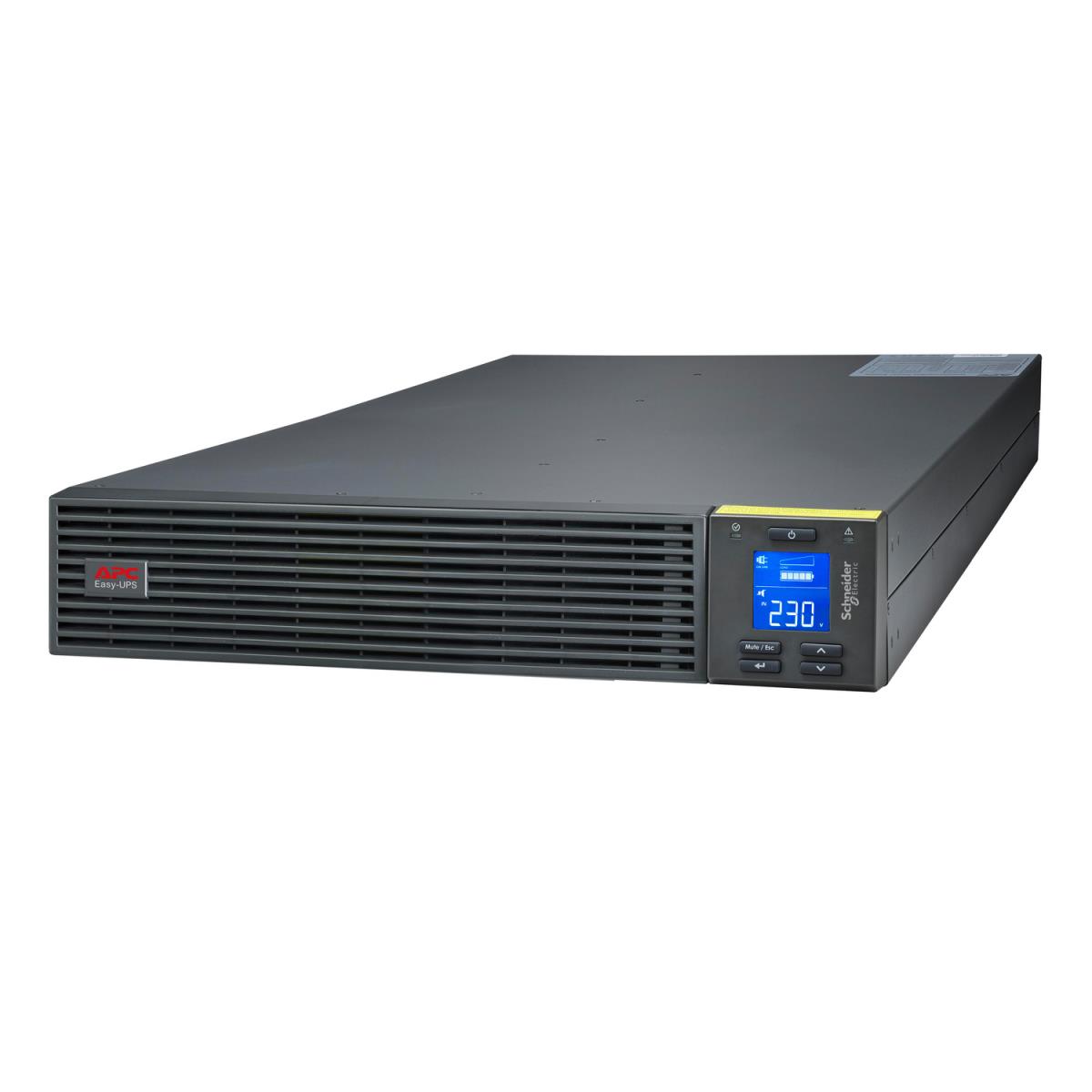

Easy UPS SRV SRVPM6KRIL - UPS (rack-mountable) - AC 220/230/240 V - 6000 watt - 6000 VA - no battery - RS-232, USB

Introduction

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 6kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions." "The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately." "The Easy UPS has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Specifications

Power
Output power	6000 W
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	6 kVA
ECO mode	Yes
Single-phase input voltage supported	230 V
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Audible alarm(s)	Yes
Maintenance-free	Yes
Features
Country of origin	China
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
Number of output phases	1
Number of input phases	1
Output power	6000 W
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	6 kVA
ECO mode	Yes
Single-phase input voltage supported	230 V
Maintenance-free	Yes
Input frequency	40/70 Hz

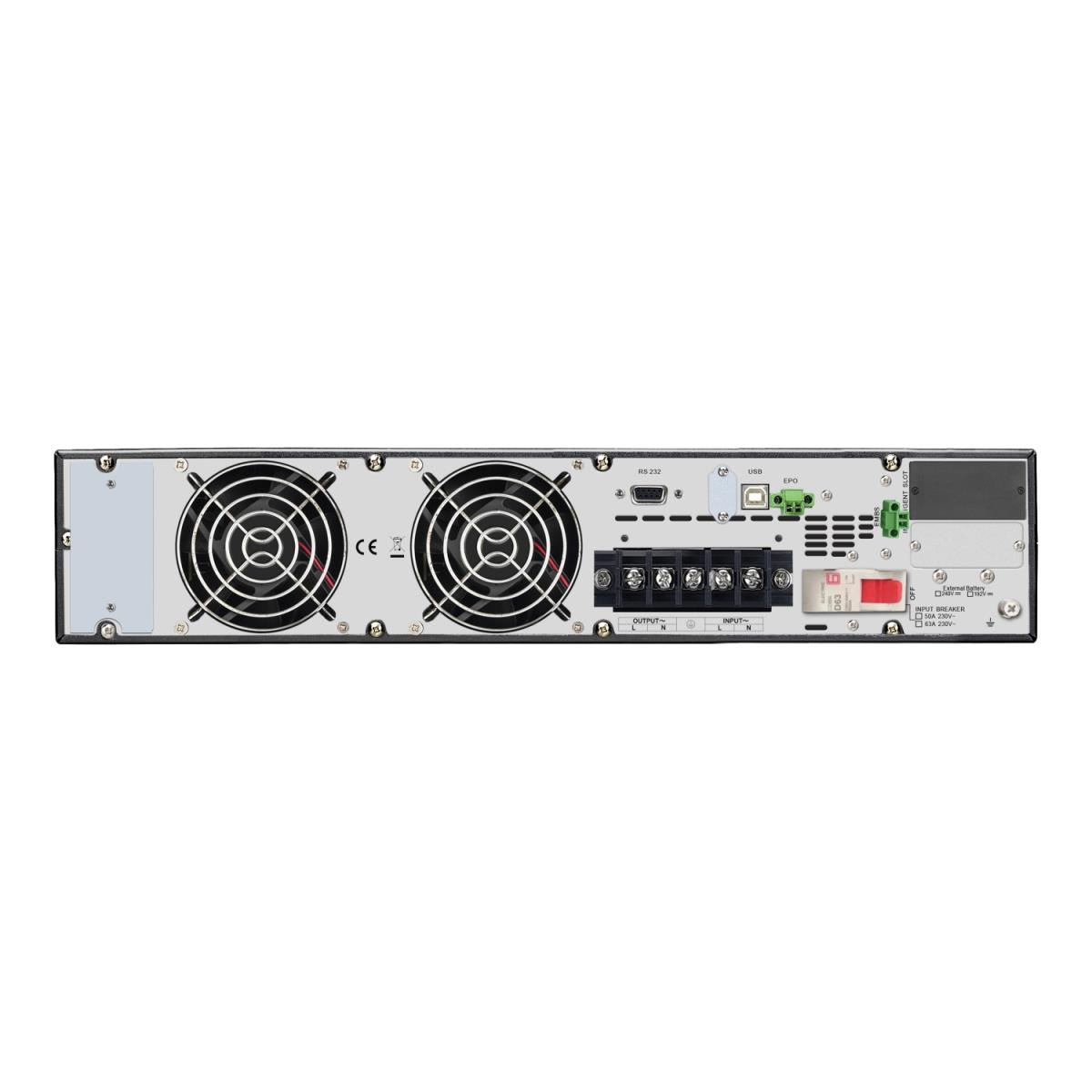

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
SmartSlot	Yes
AC outlet types	Hard Wire 3-wire (1P + N + E)
Power plug	Terminal
USB 2.0 ports quantity	1
Serial ports quantity	1
USB port type	USB Type-B
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h
Automatic battery test	Yes
Design
Country of origin	China
Rack capacity	2U
Form factor	Rackmount
LED indicators	Yes
Product colour	Black
Certification	CE; EAC
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 14763.6 m
Technical details
Output voltage	230 V
Mounting	front; horizontal
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3557.503130030406
Compliance certificates	RoHS, REACH, WEEE
Certificates
Certification	CE; EAC
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	RoHS, REACH, WEEE
Packaging content
Cables included	USB cable
Manual	Yes
Software CD	Yes
Certification
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Weight & dimensions
Package width	600 mm
Package depth	760 mm
Package height	240 mm
Weight	14 kg
Width	438 mm
Package weight	18 kg
Height	86.5 mm
Depth	615 mm
Packaging data
Cables included	USB cable
Manual	Yes
Software CD	Yes
Package width	600 mm
Package depth	760 mm
Package height	240 mm
Package weight	18 kg
Logistics data
Country of origin	China
Customs product code (TARIC)	8504409590
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3557.503130030406
Other features
Output voltage	230 V
Mounting	front; horizontal
Output connection type	hard wire 3-wire (1P + N + E) for 1 zone(s)
Nominal output voltage	230 V
Nominal input voltage	230 V
