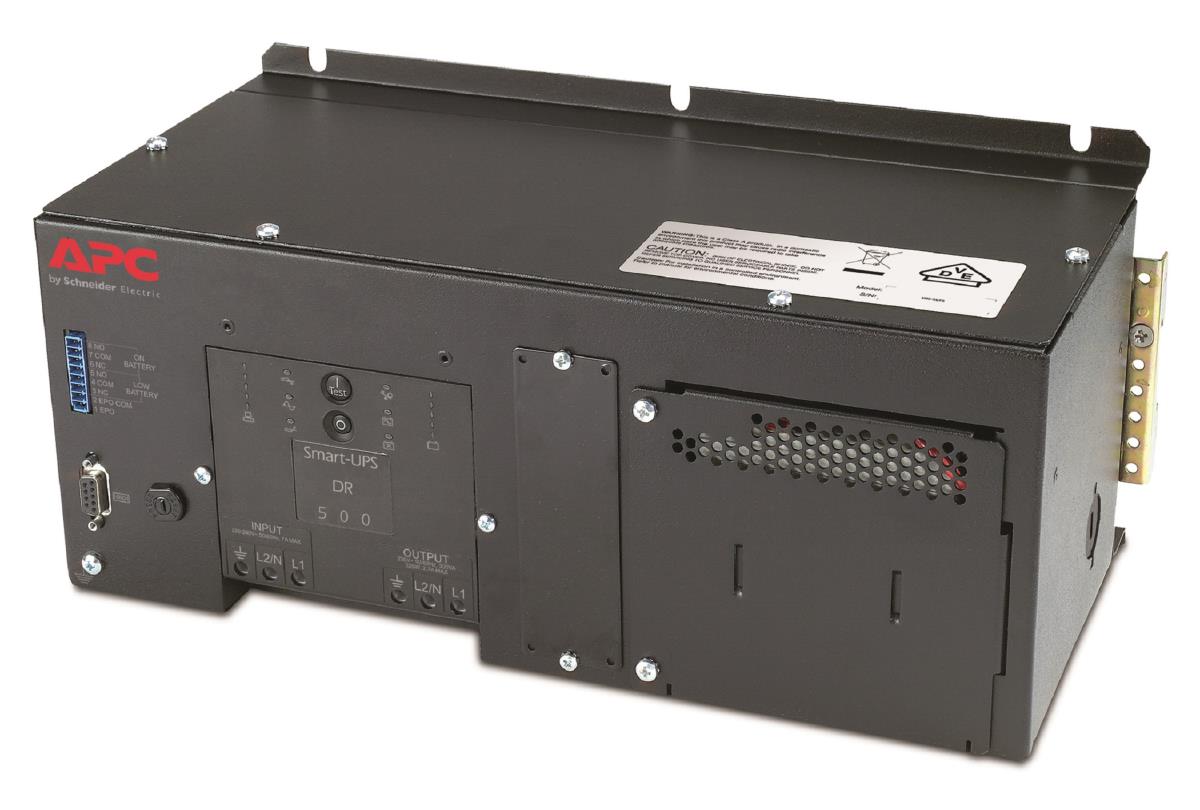

SUA500PDRI-S

Introduction

APC SUA500PDRI-S. Output power capacity: 0.5 kVA, Output power: 325 W, Input operation voltage (min): 151 V. Battery technology: Sealed Lead Acid (VRLA). Product colour: Black, Certification: CE, VDE. Width: 362 mm, Depth: 171 mm, Height: 148 mm

Specifications

Power
Output power	325 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	540 J
Efficiency	94%
Output voltage Total Harmonic Distortion (THD)	5%
Output power capacity	0.5 kVA
Performance
Surge protection	Yes
Noise level	55 dB
Features
Output power	325 W
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	540 J
Efficiency	94%
Surge protection	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	55 dB
Output power capacity	0.5 kVA
Input frequency	50/60 Hz
Ports & interfaces
RS-232 ports	1
Battery
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Design
Product colour	Black
Certification	CE, VDE
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Weight & dimensions
Package width	297 mm
Package depth	481 mm
Package height	297 mm
Weight	12.9 kg
Width	362 mm
Package weight	13.3 kg
Height	148 mm
Depth	171 mm
Packaging data
Manual	Yes
Package width	297 mm
Package depth	481 mm
Package height	297 mm
Package weight	13.3 kg
Logistics data
Harmonized System (HS) code	85078000
Certificates
Certification	CE, VDE
Packaging content
Manual	Yes
