SUA750IX38
Introduction
"Intelligent and efficient power protection enabling multi-regional deployment."
Specifications
| Power | |
|---|---|
| Output power | 500 W |
| Surge energy rating | 340 J |
| Output power capacity | 0.75 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| LED indicators | Yes |
| Audible alarm(s) | Yes |
| Features | |
| Country of origin | Philippines |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output power | 500 W |
| Surge energy rating | 340 J |
| Audible alarm(s) | Yes |
| Output power capacity | 0.75 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| AC outlet types | IEC 60320 |
| Battery | |
| Battery recharge time | 3 h |
| Typical backup time at half load | 16.4 min |
| Typical backup time at full load | 4.8 min |
| Hot-swap battery | Yes |
| Replacement battery cartridge | RBC48 |
| Battery replacement accessibility | End-user |
| Design | |
| Country of origin | Philippines |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Output voltage | 230 V |
| Voltage | 230 V |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 708.9040745776 |
| Compliance certificates | RoHS, REACH, WEEE |
| Packaging data | |
| Package dimensions (WxDxH) | 270 x 500 x 290 mm |
| Package weight | 14.6 kg |
| Certificates | |
| Certification | CE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
| Weight | 13.2 kg |
| Width | 137 mm |
| Package weight | 14.6 kg |
| Height | 157 mm |
| Logistics data | |
| Country of origin | Philippines |
| Customs product code (TARIC) | 8504409590 |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 708.9040745776 |
| Other features | |
| Output voltage | 230 V |
| Voltage | 230 V |

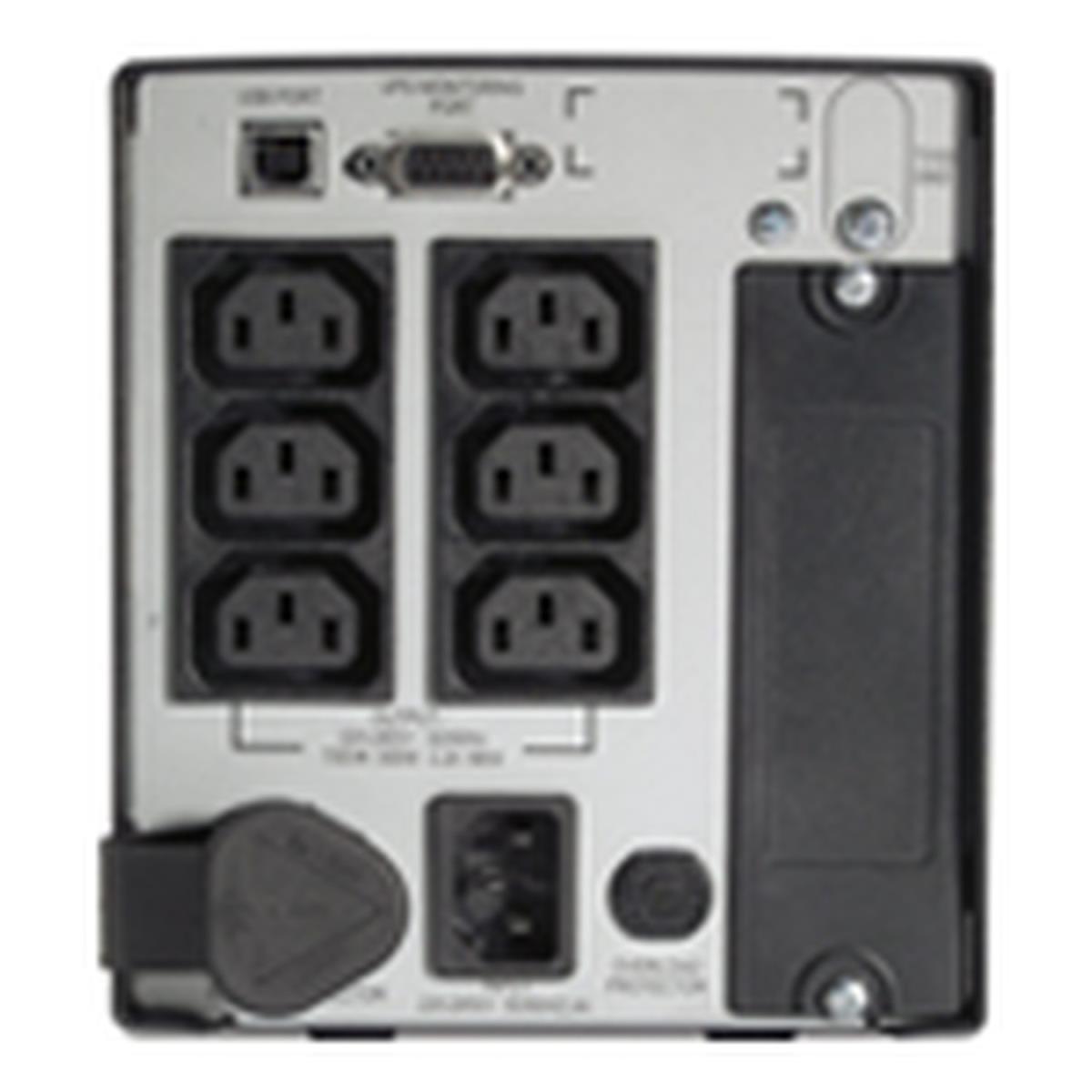

| Output connections | 6 x IEC 320 C13 1 x IEC Jumpers |
| Input connection type | IEC 320 C14 |
| Dimensions (WxDxH) | 137 x 358 x 157 mm |
| Package dimensions (WxDxH) | 270 x 500 x 290 mm |
| Output connection type | 6 IEC 320C13; 2 IEC Jumpers |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
