4PORT USBC USBA HUB
Introduction

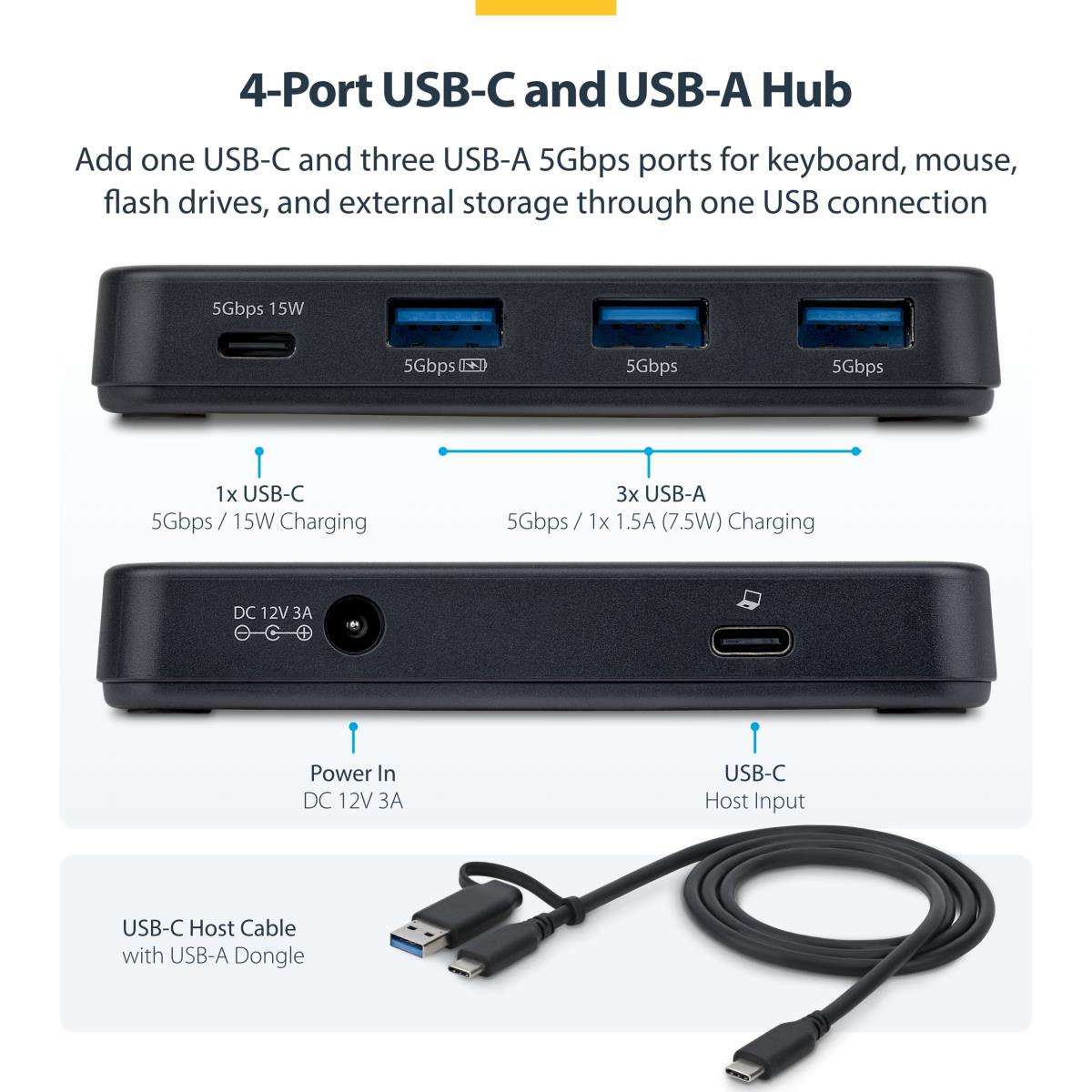

Turn a USB-C or USB-A port on your laptop or PC into three USB-A ports (one with BC 1.2) and one USB-C port (with 15W charging)

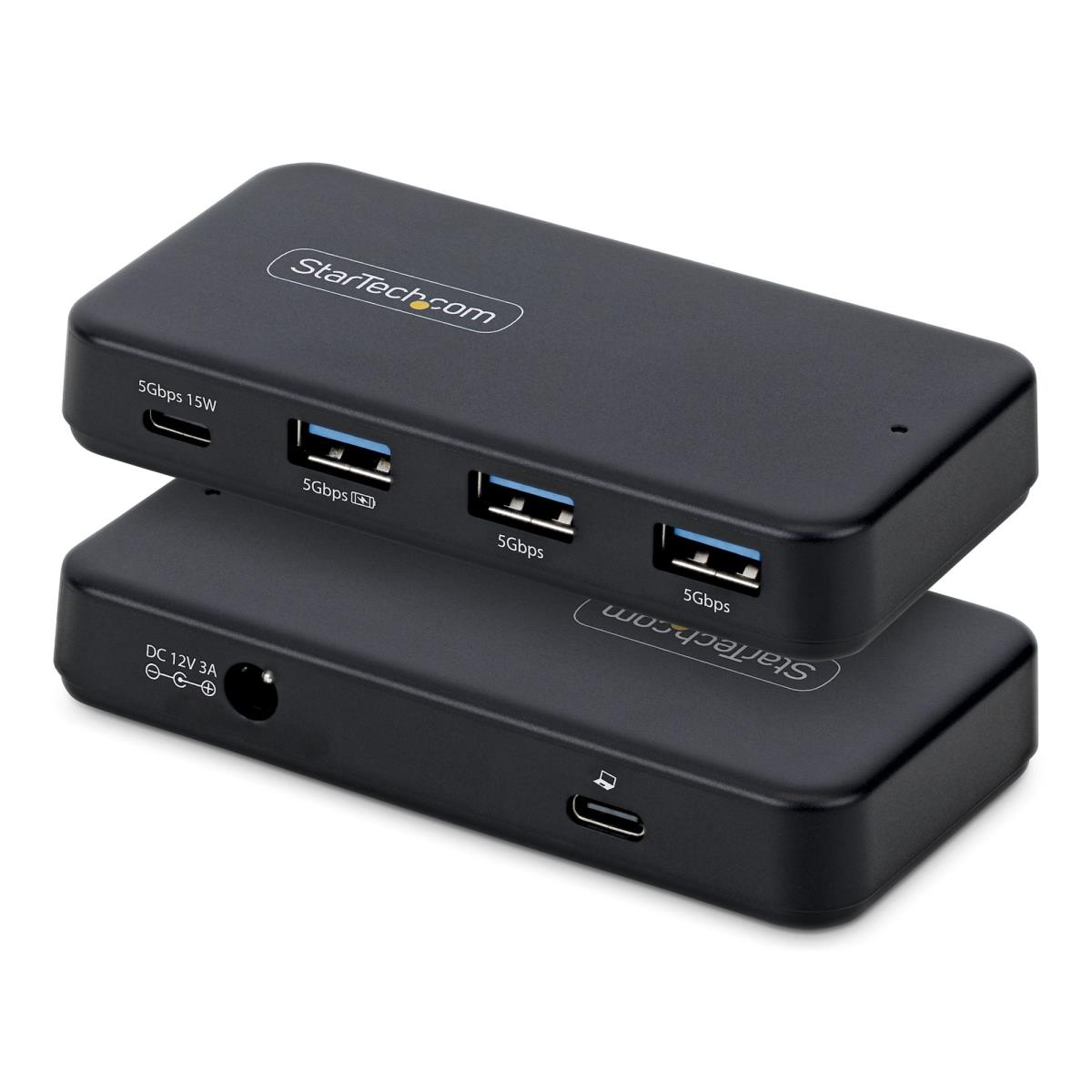

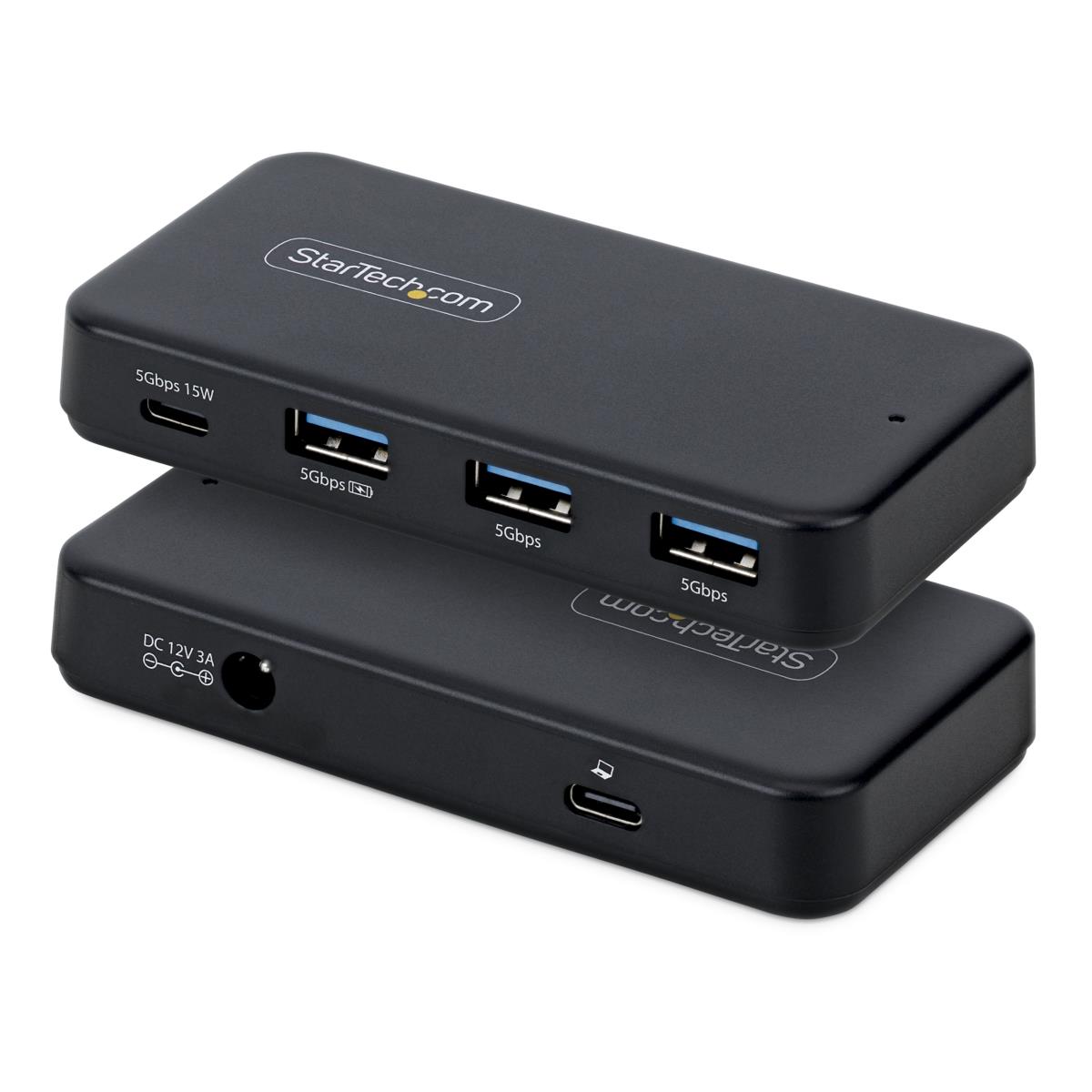

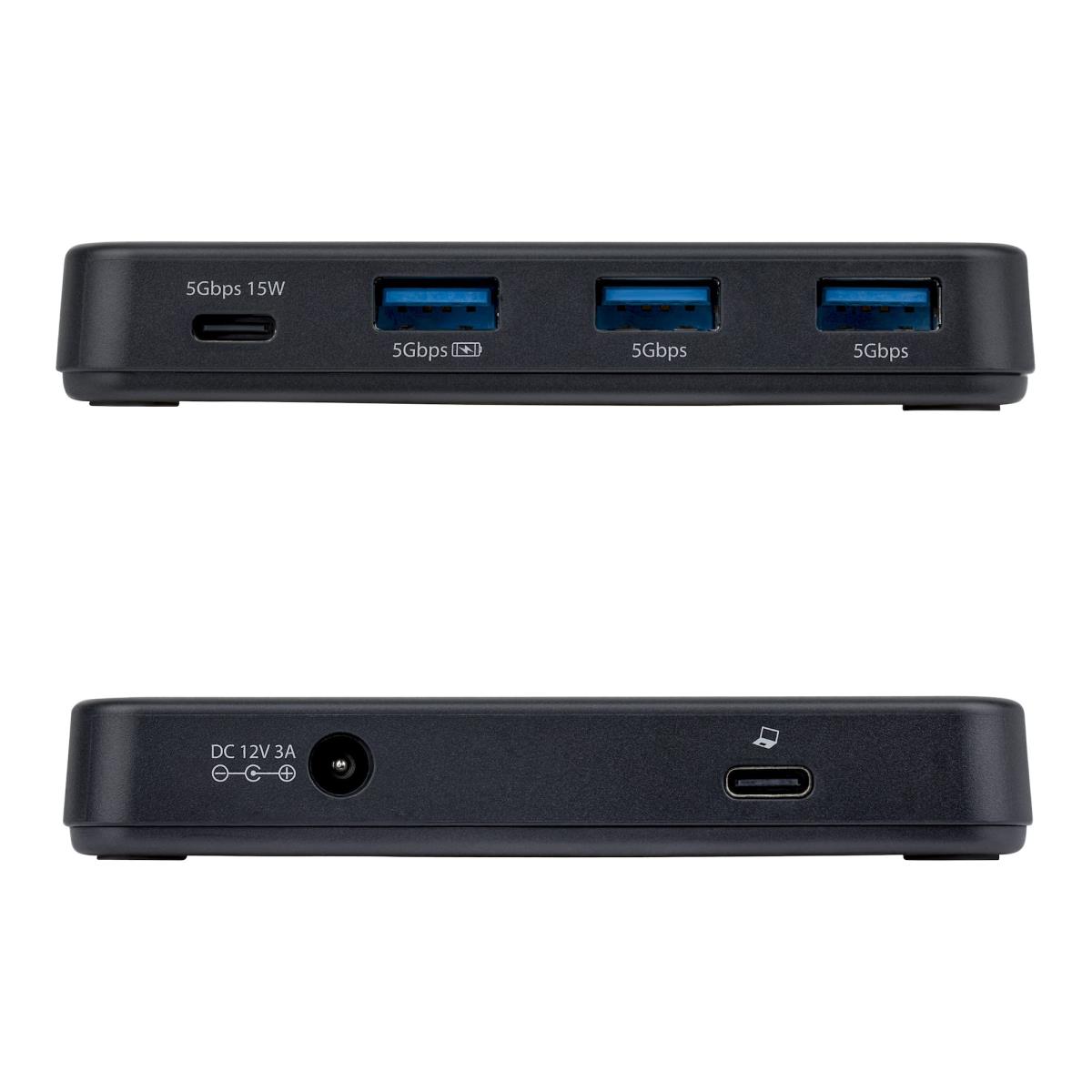

This 4-port USB hub lets you instantly expand a USB connection with three SuperSpeed USB-A 3.0 ports (one BC 1.2 charging) and a USB-C port with up to 15W charging, making it easy to connect flash drives, webcams, external storage, and more simultaneously.
Fast Charge, Even Without a Host
Deliver up to 15W from the USB-C PD port and 7.5W from the BC 1.2 USB-A port to power phones and tablets, whether or not the hub is connected to a computer. A 36W total power budget is shared across all ports for consistent operation.

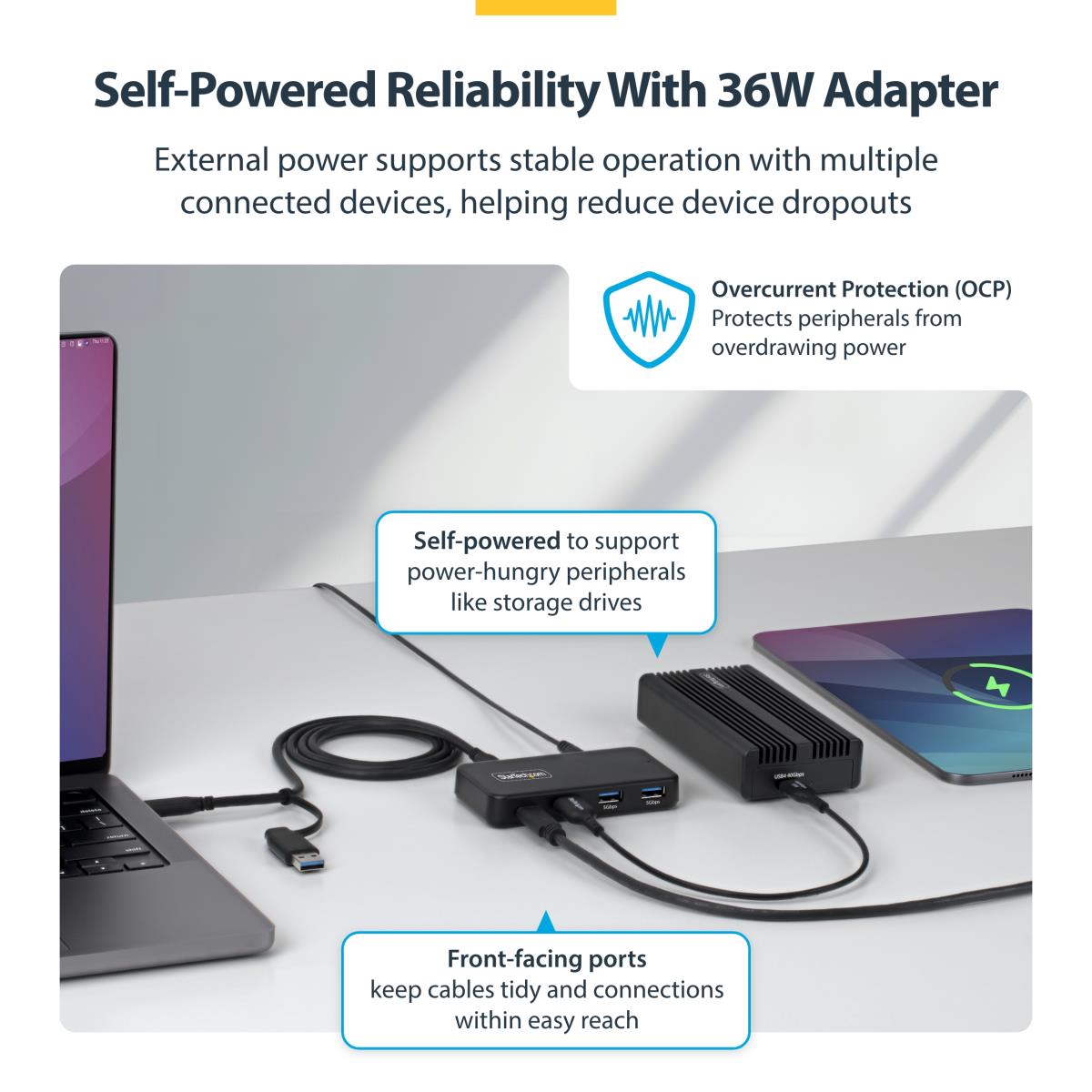

Self-Powered Reliability with Protection

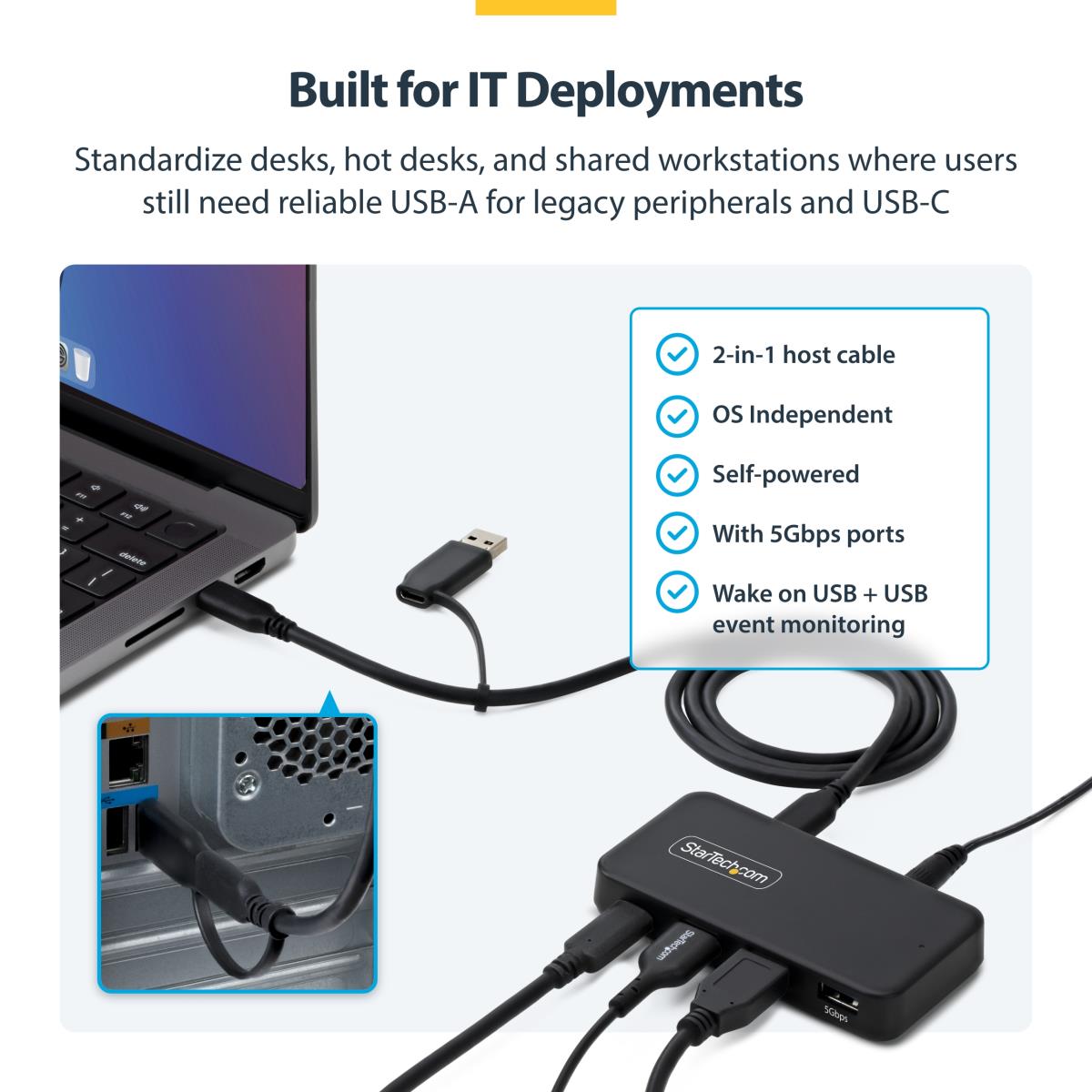

The included 36W external adapter ensures stable charging and device operation, with built-in overcurrent and overvoltage protection to help reduce device dropouts and host shutdown risk. Support for Wake on USB and USB event monitoring enhances usability in mixed environments.
Easy Integration

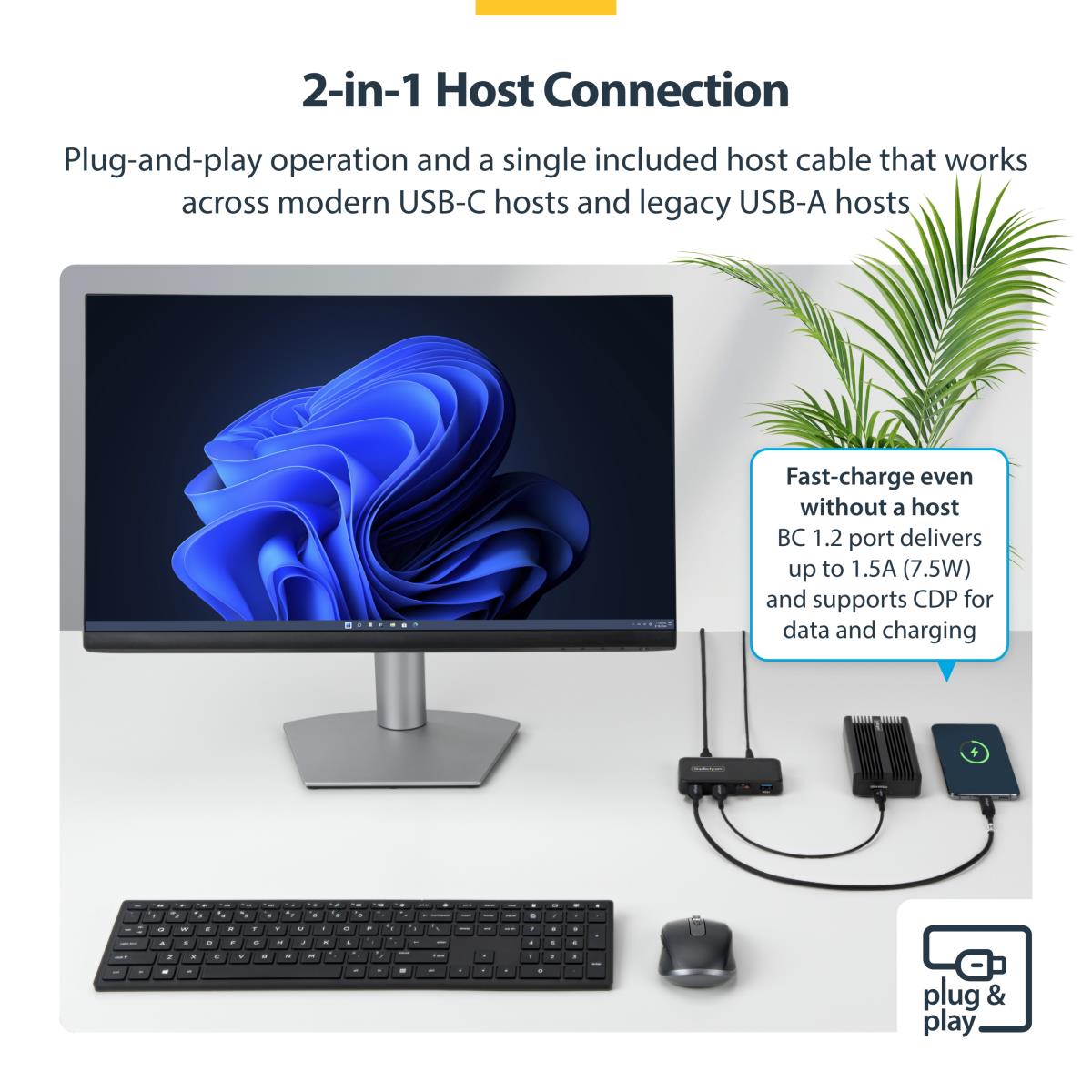

A removable 2-in-1 USB-C/USB-A host cable provides flexible connectivity across modern and legacy systems.
Sustainable Design
The hub features a 70% post-consumer recycled (PCR) plastic enclosure and a 35% PCR TPE jacket, helping reduce environmental impact and support ESG requirements.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Ports quantity | 4 |
| USB 2.0 Type-C ports quantity | 1 |
| Cable length | 1 m |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 1 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Plastic |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Network | |
| UASP support | Yes |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input current | 1.5 A |
| Power consumption (typical) | 36 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 100 - 240 V |
| Power supply type | DC |
| Technical details | |
| Product colour | Black |
| Weight & dimensions | |
| Weight | 55.9 g |
| Width | 52 mm |
| Depth | 101 mm |
| Height | 16.5 mm |
| Package width | 202 mm |
| Package depth | 112 mm |
| Package height | 45 mm |
| Package weight | 237 g |
| Packaging data | |
| Package width | 202 mm |
| Package depth | 112 mm |
| Package height | 45 mm |
| Package weight | 237 g |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 117452 h |

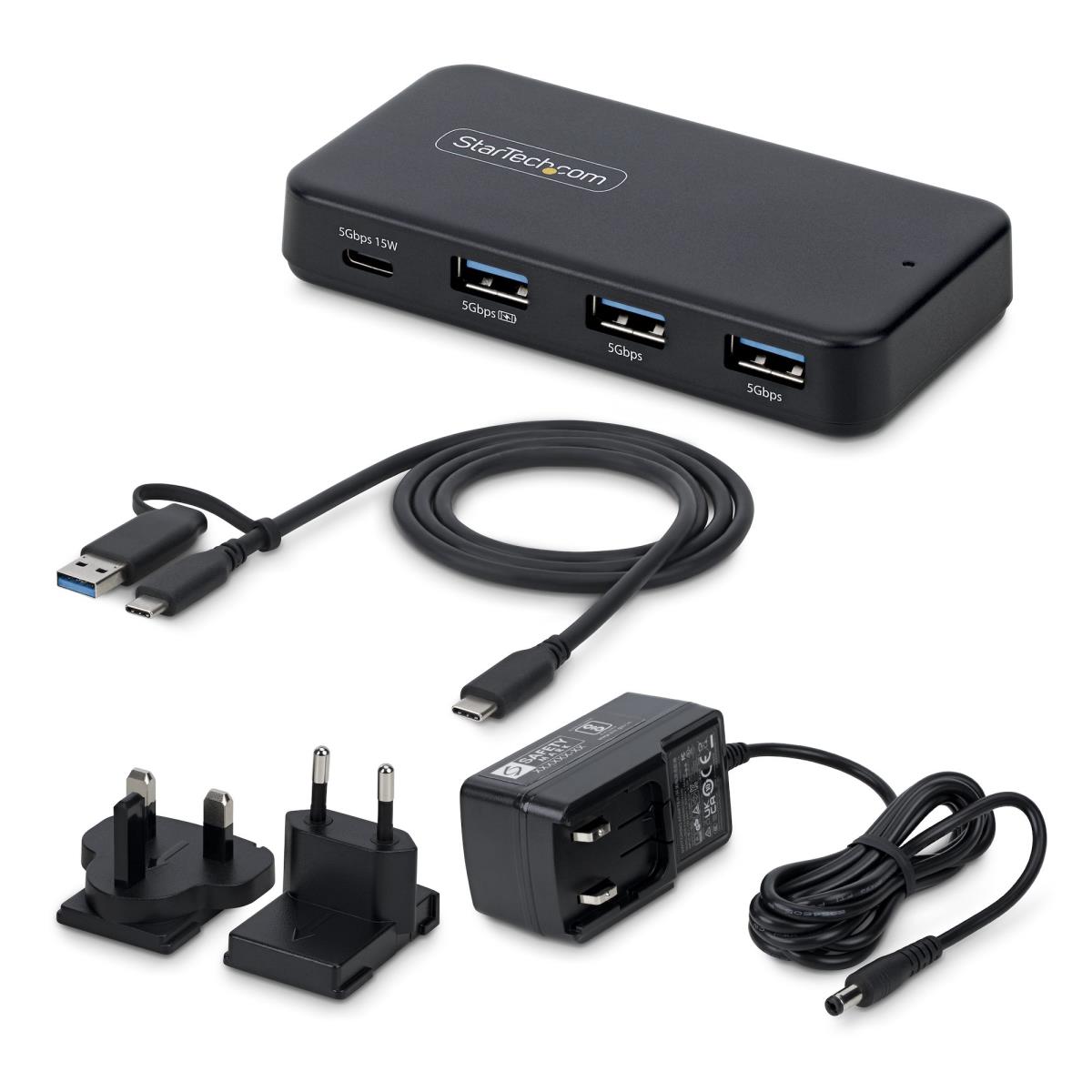

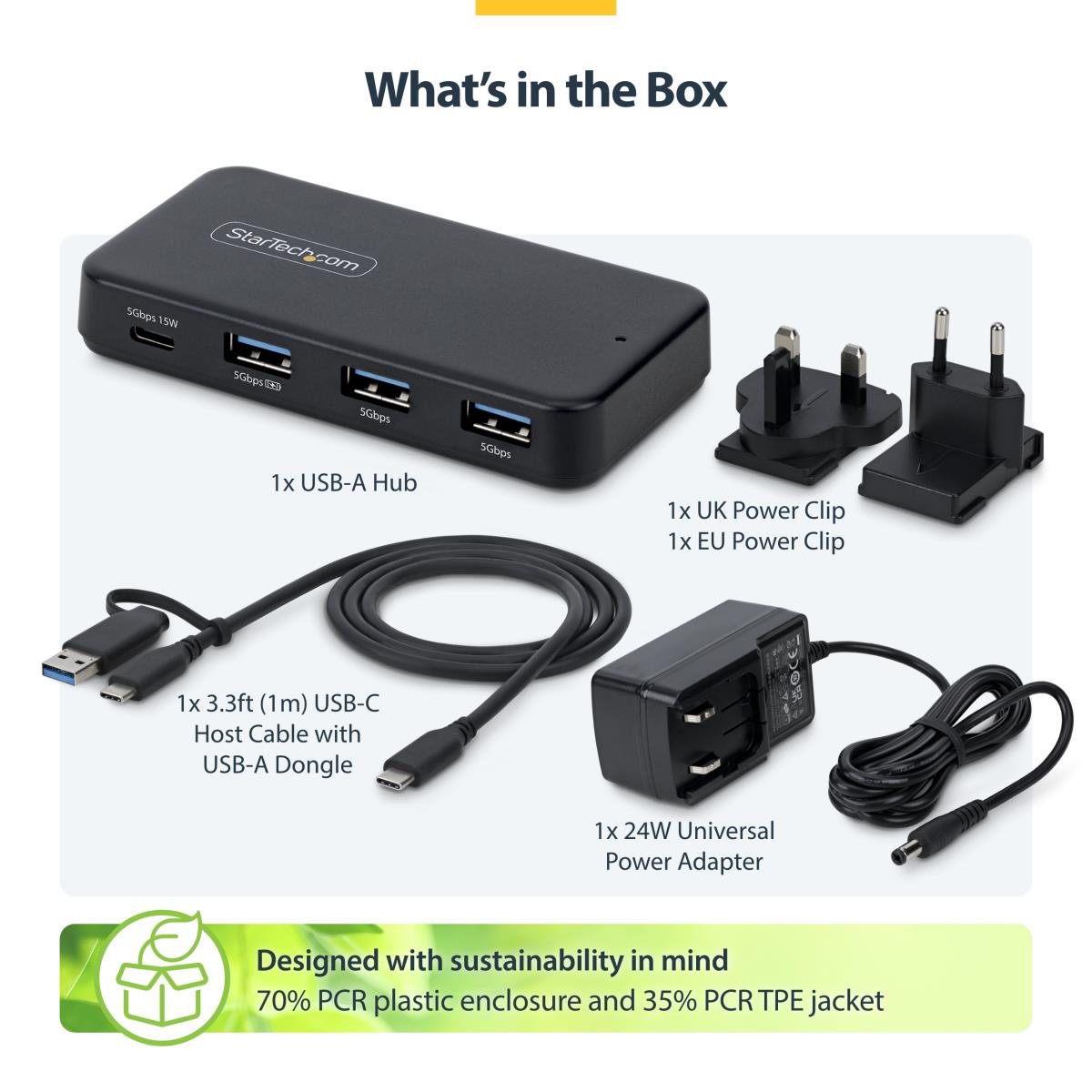

| Packaging content | |
| Included power plug types | UK, EU |
| Cables included | USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Interface adapters included | USB Type-C female - USB Type-A male |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Cable length | 1 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 325 mm |
| Products per master (outer) case | 20 pc(s) |
| Other features | |
| Chipset | VIA - VL817S |
