EU Product - Inerfce hu US 3.2 Gen 1
Introduction

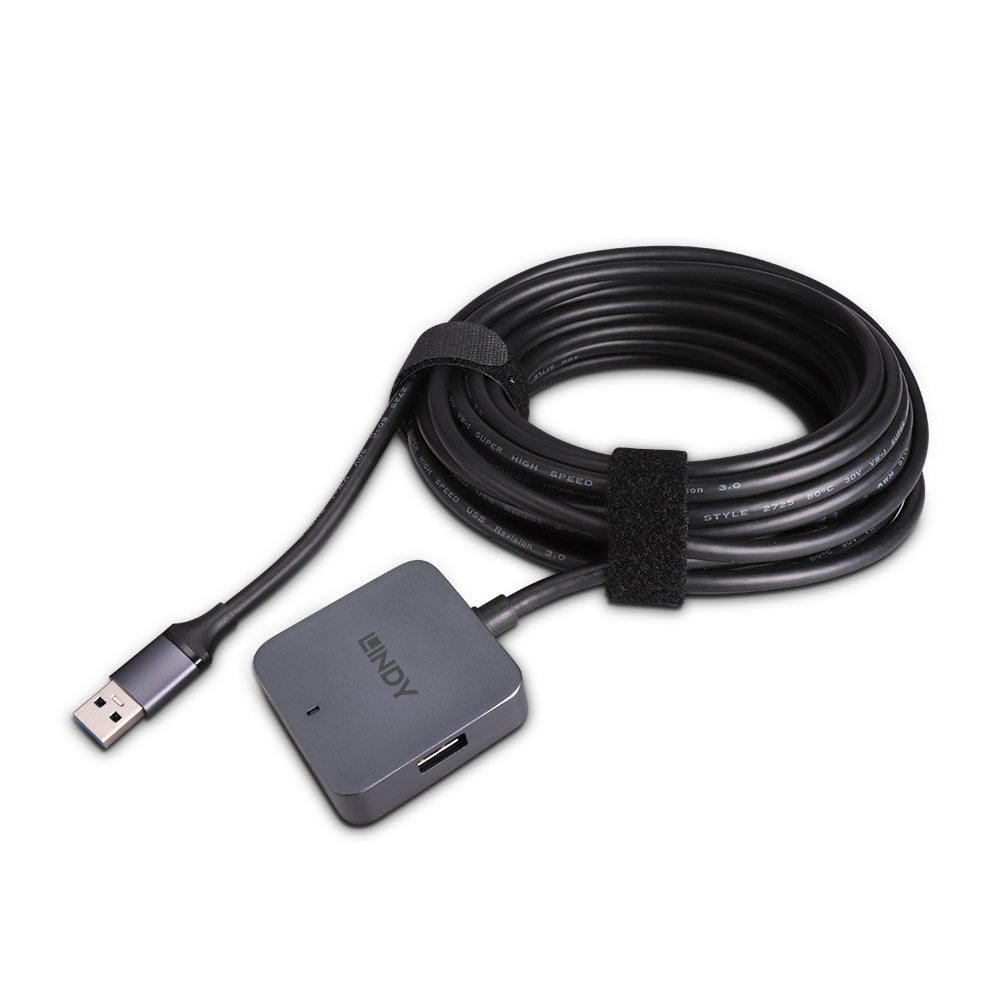

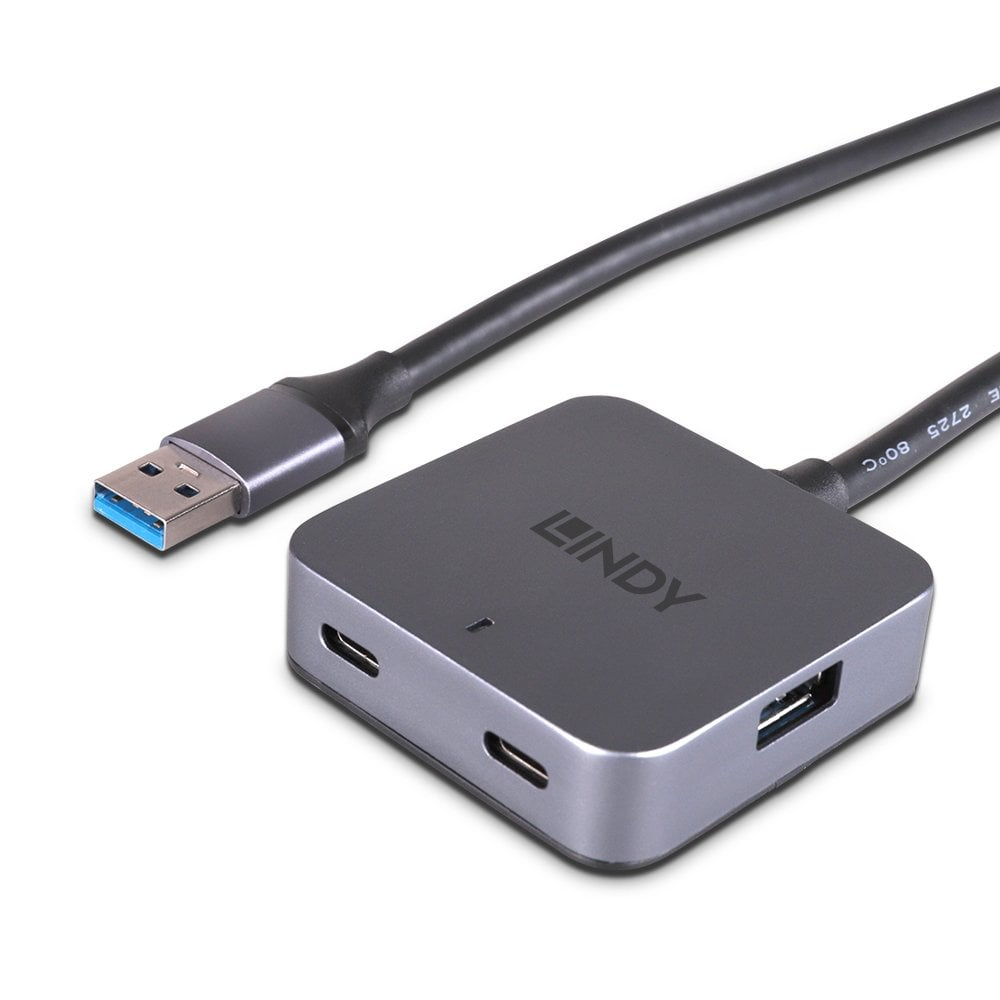

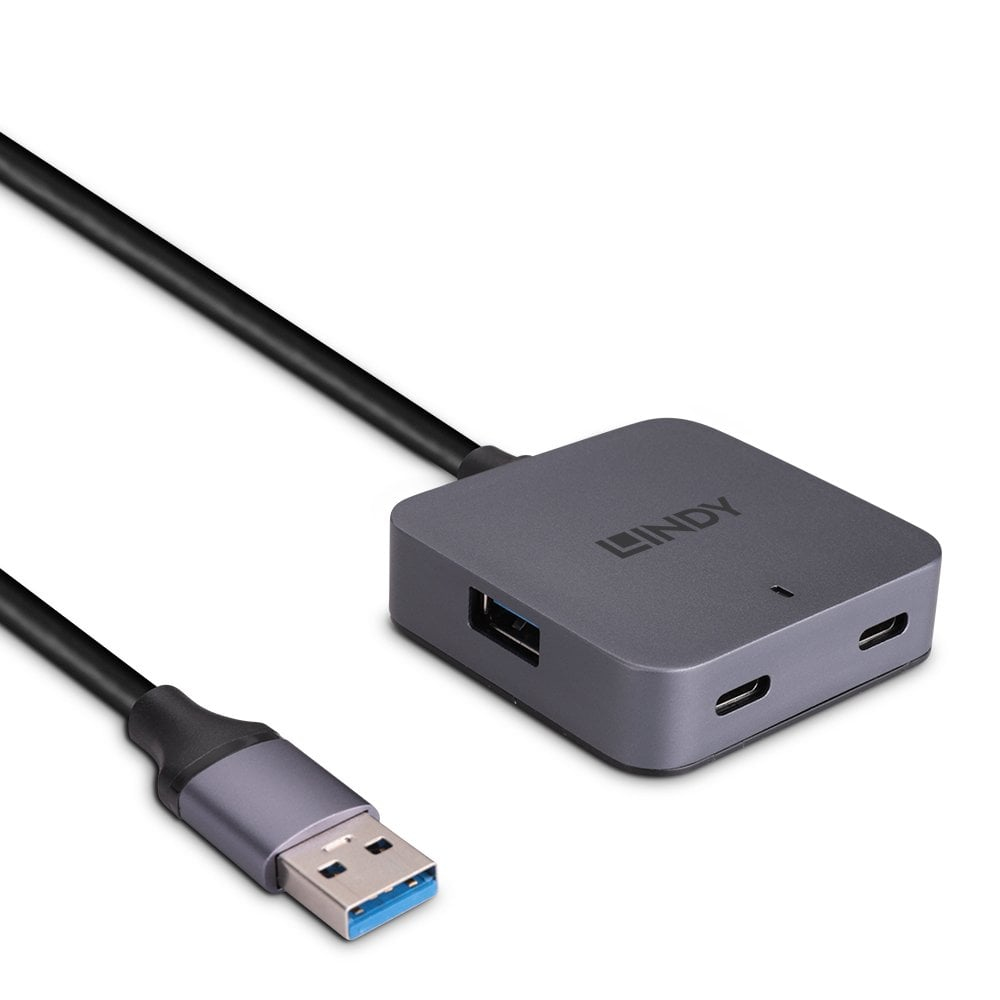

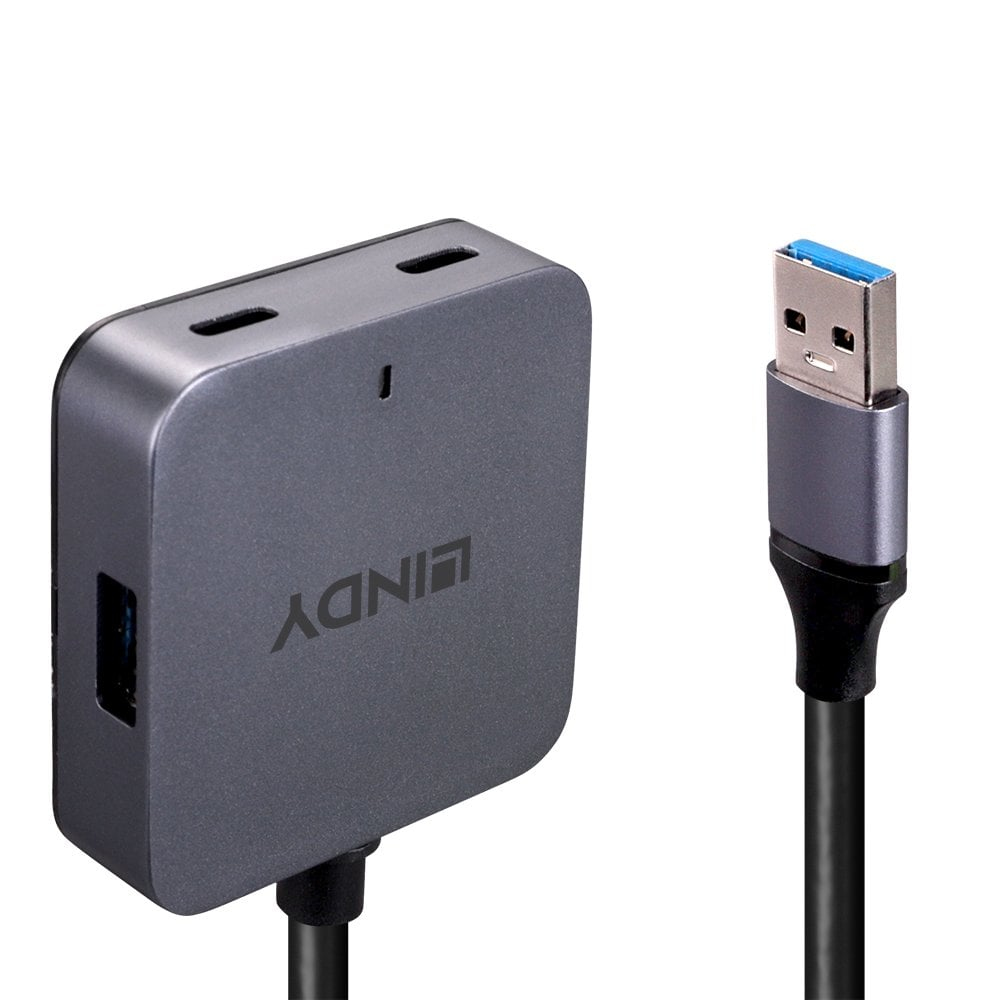

The Lindy 5m USB 3.0 Hubuses built-in active electronics to extend the cable length of up to four USB devices by an additional 5m. It provides 2 USB Type A and 2 USB Type C SuperSpeed ports for connecting up to 4 peripheralssuch as storage devices, printers or webcamsto a USB Type A equipped computer at longer distances, while also ensuring flexible positioning. Capable of data transfer speeds of up to 5Gbps, the hub is also backwards compatible with USB 2.0 and 1.1.

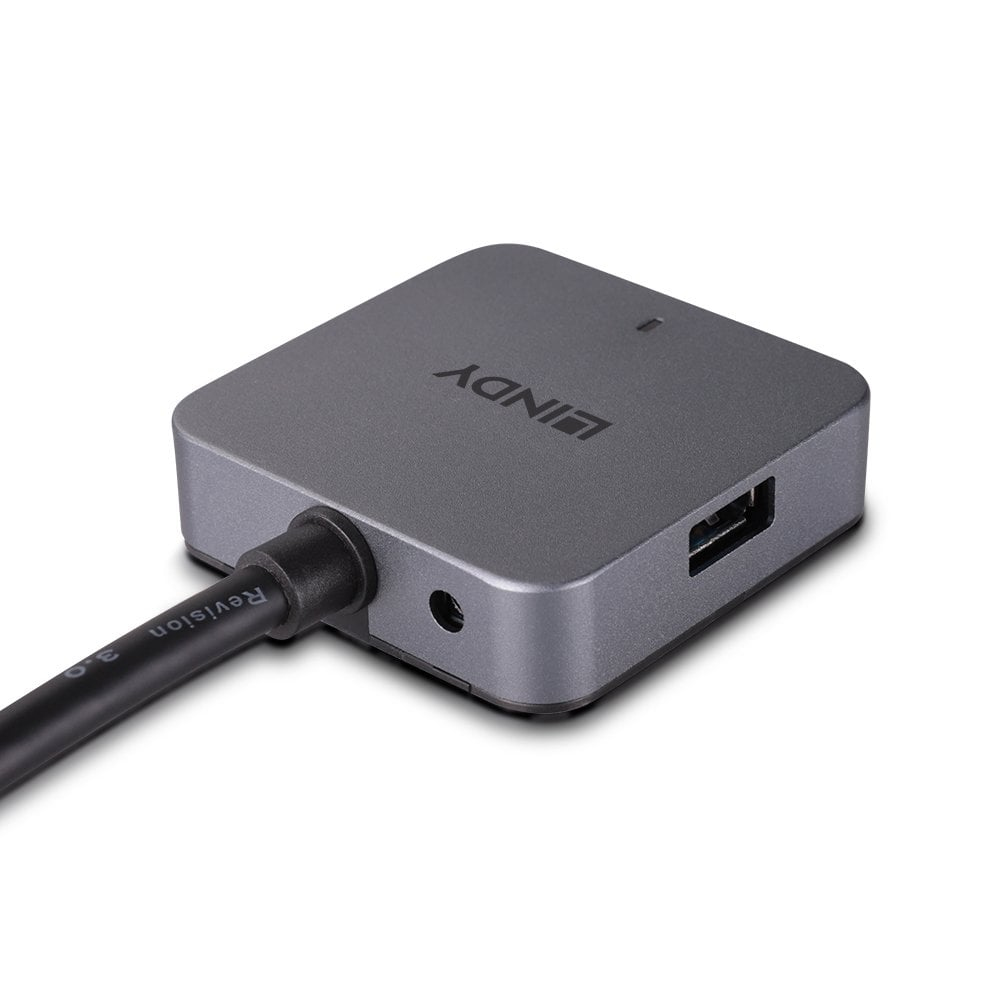

The hub is powered by the USB Bus, while it also features a DC socket for connecting an external 5VDC power supply (not included) when using USB peripherals which have higher power requirements.With 'Plug and Play' installation, no drivers are required, therefore this hub can be installed with minimum difficulty.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| DC-in jack | Yes |
| Ports quantity | 4 |
| Cable length | 5 m |
| Features | |
| Product colour | Black, Grey |
| Cable length | 5 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Aluminium, Plastic |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input current | 0.9 A |
| Input voltage | 5 V |
| Technical details | |
| Product colour | Black, Grey |
| Operating temperature (T-T) | 32 - 113 °F |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Weight & dimensions | |
| Weight | 281 g |
| Width | 52.5 mm |
| Depth | 52.5 mm |
| Height | 14 mm |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package height | 40 mm |
| Package weight | 300 g |
| Packaging data | |
| Package type | Polybag |
| Package width | 236 mm |
| Package depth | 255 mm |
| Package height | 40 mm |
| Package weight | 300 g |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Data transfer rate | 5000 Mbit/s |
| Design | |
| Product colour | Black, Grey |
| Cable length | 5 m |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 113 °F |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 40% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 45 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Packaging content | |
| Package type | Polybag |
