UNMANAGED SWITCH 5-PORT TAA -
Introduction
Expand your network connectivity with simple plug-and-play setup

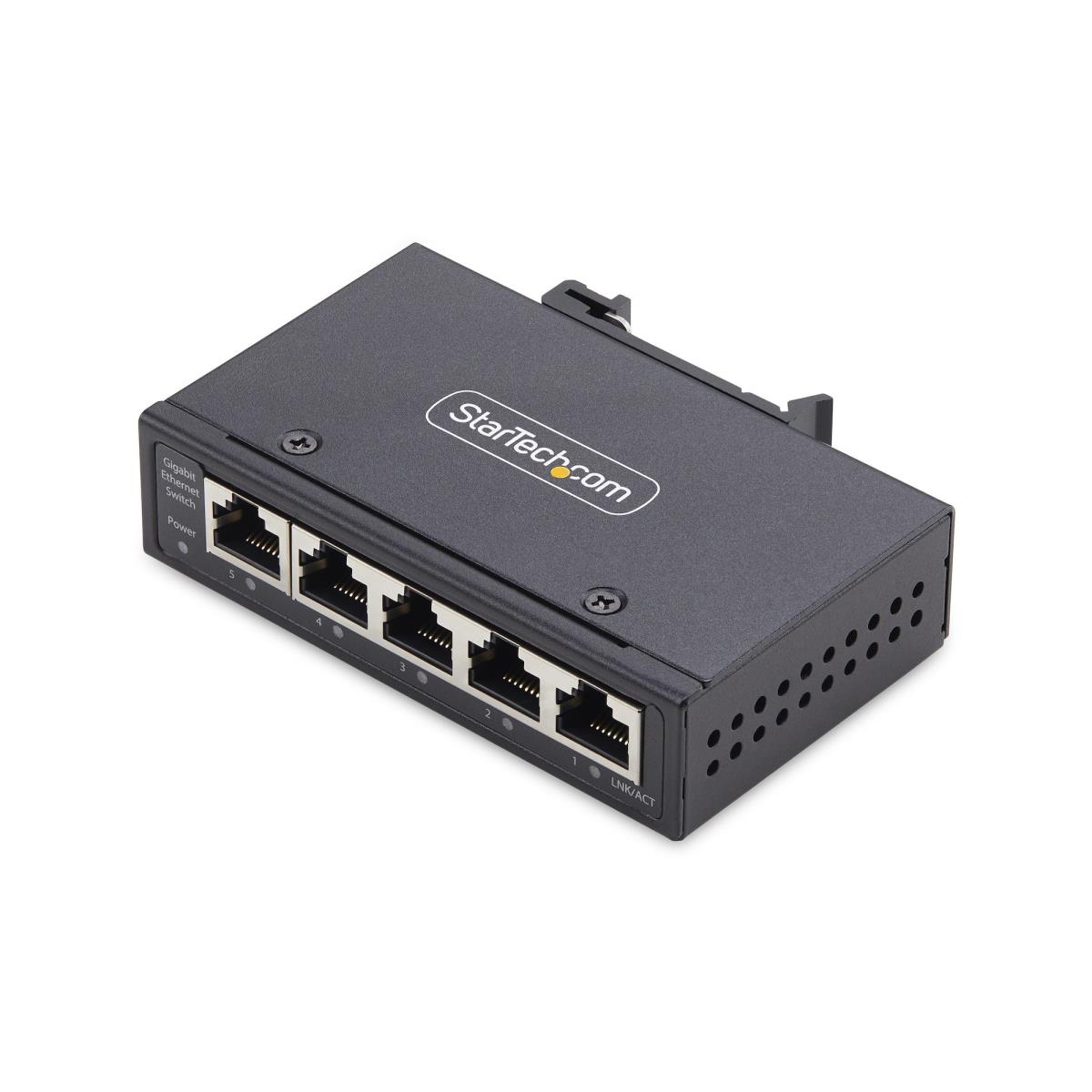

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.
Enhance Your Network
Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.
Rugged TAA Switch

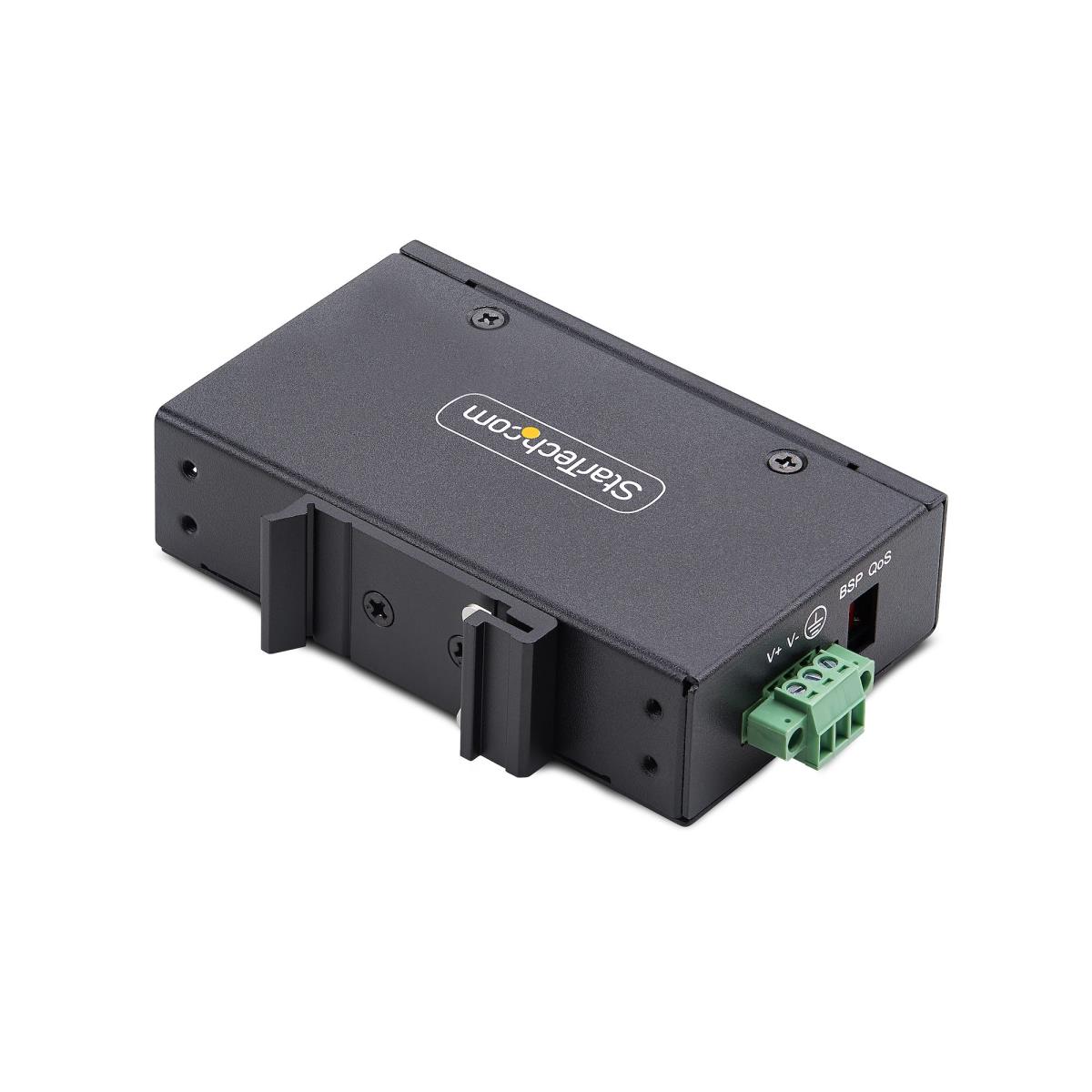

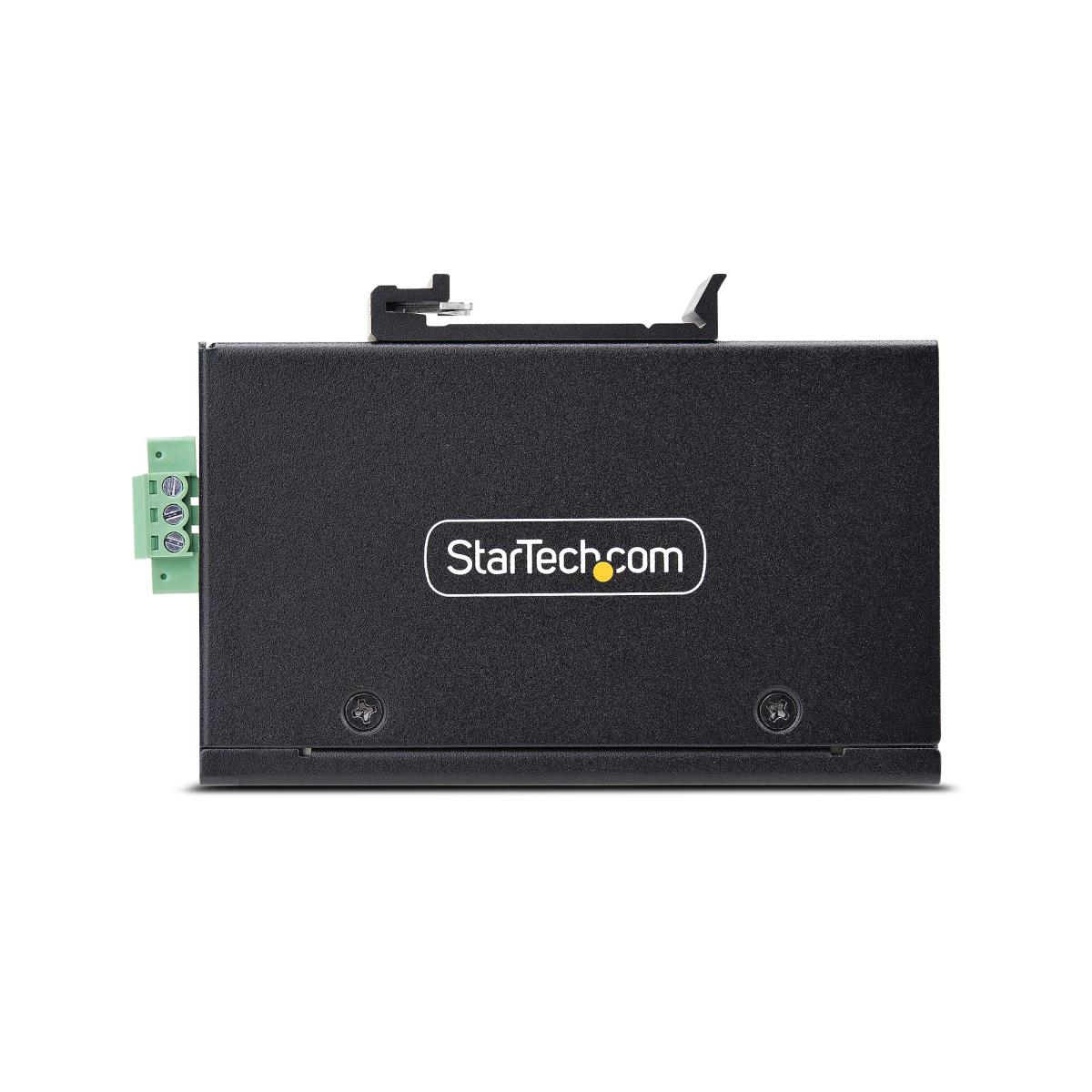

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (-40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.
Designed for Demanding Environments

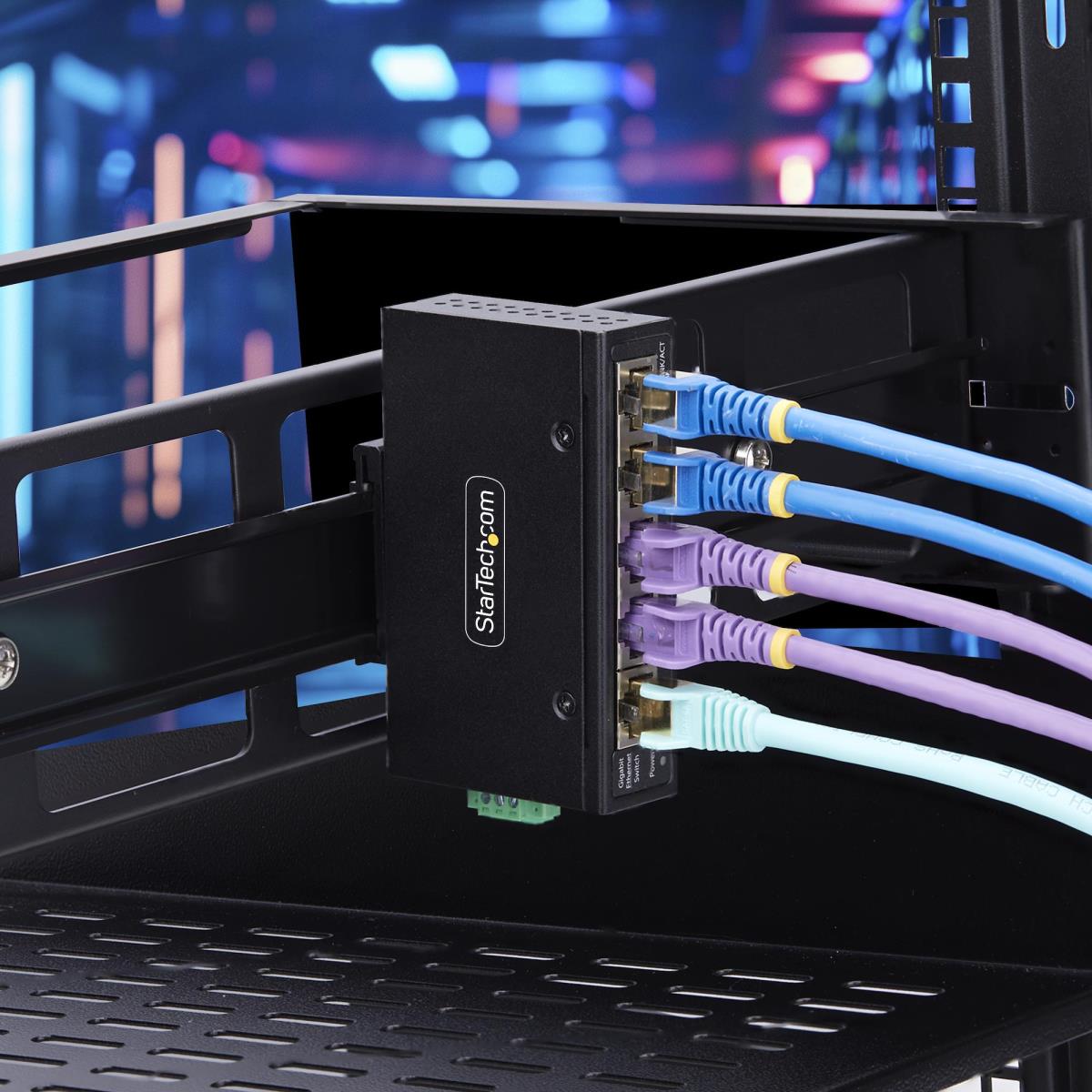

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 5 |

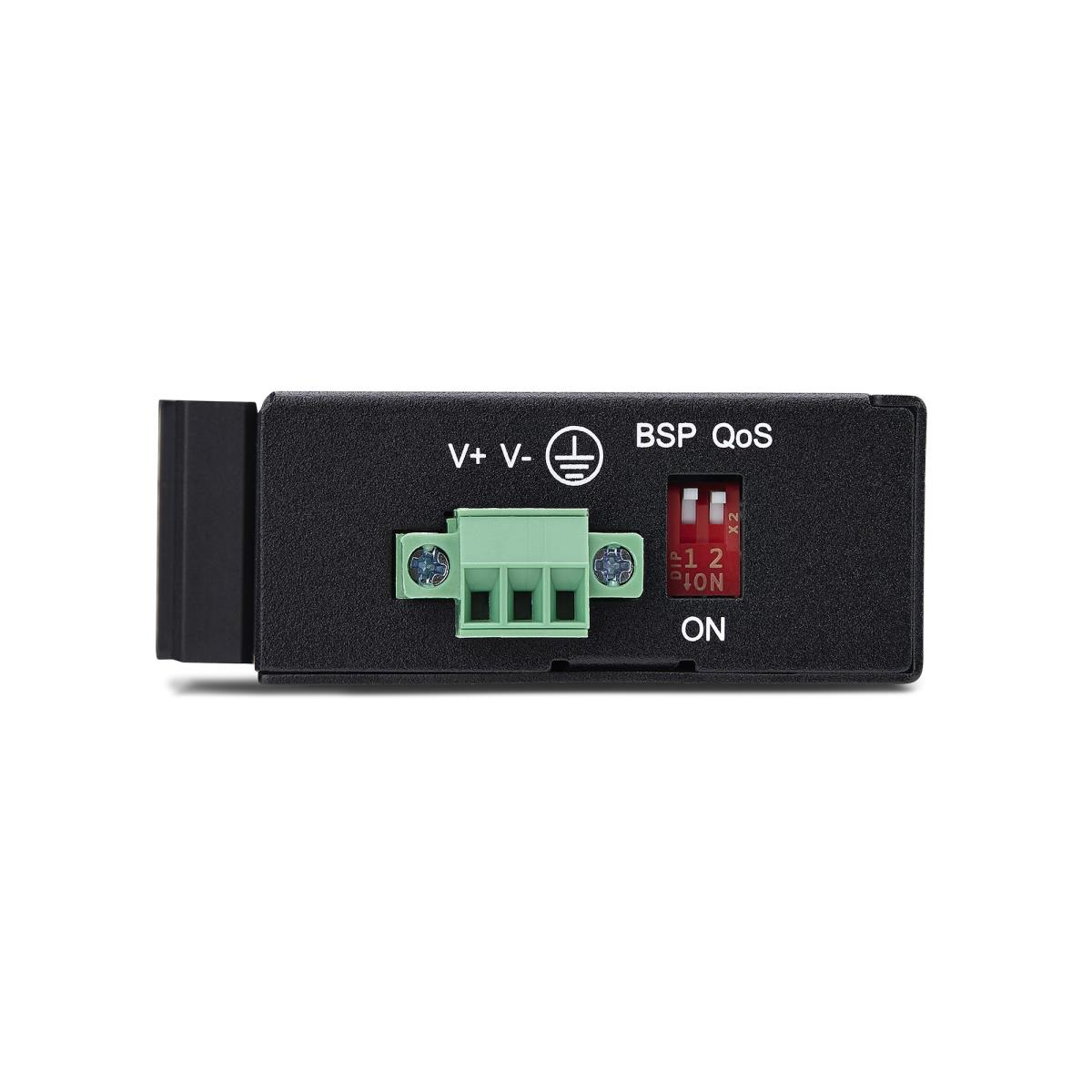

| Power connector | Terminal block (3-pin) |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |

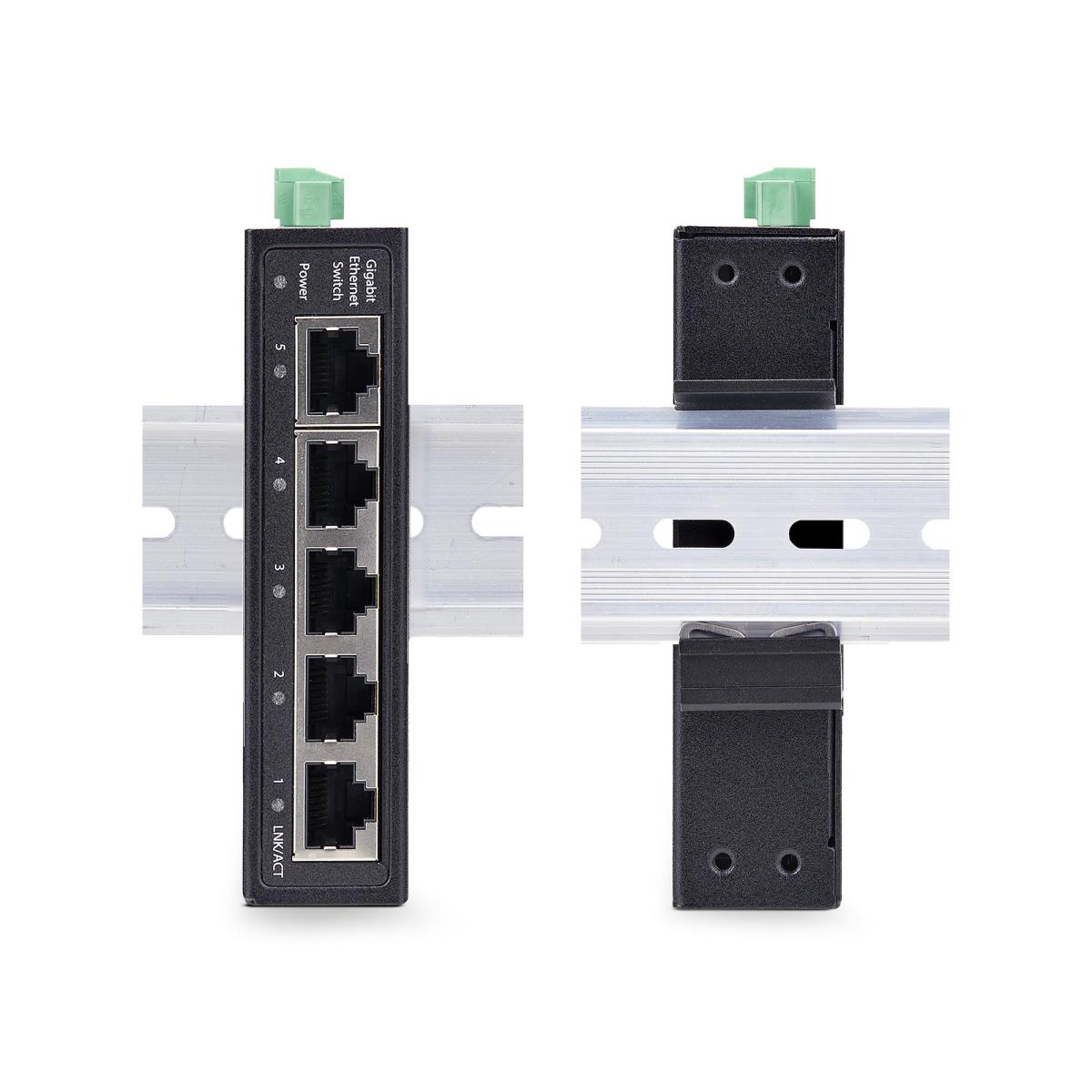

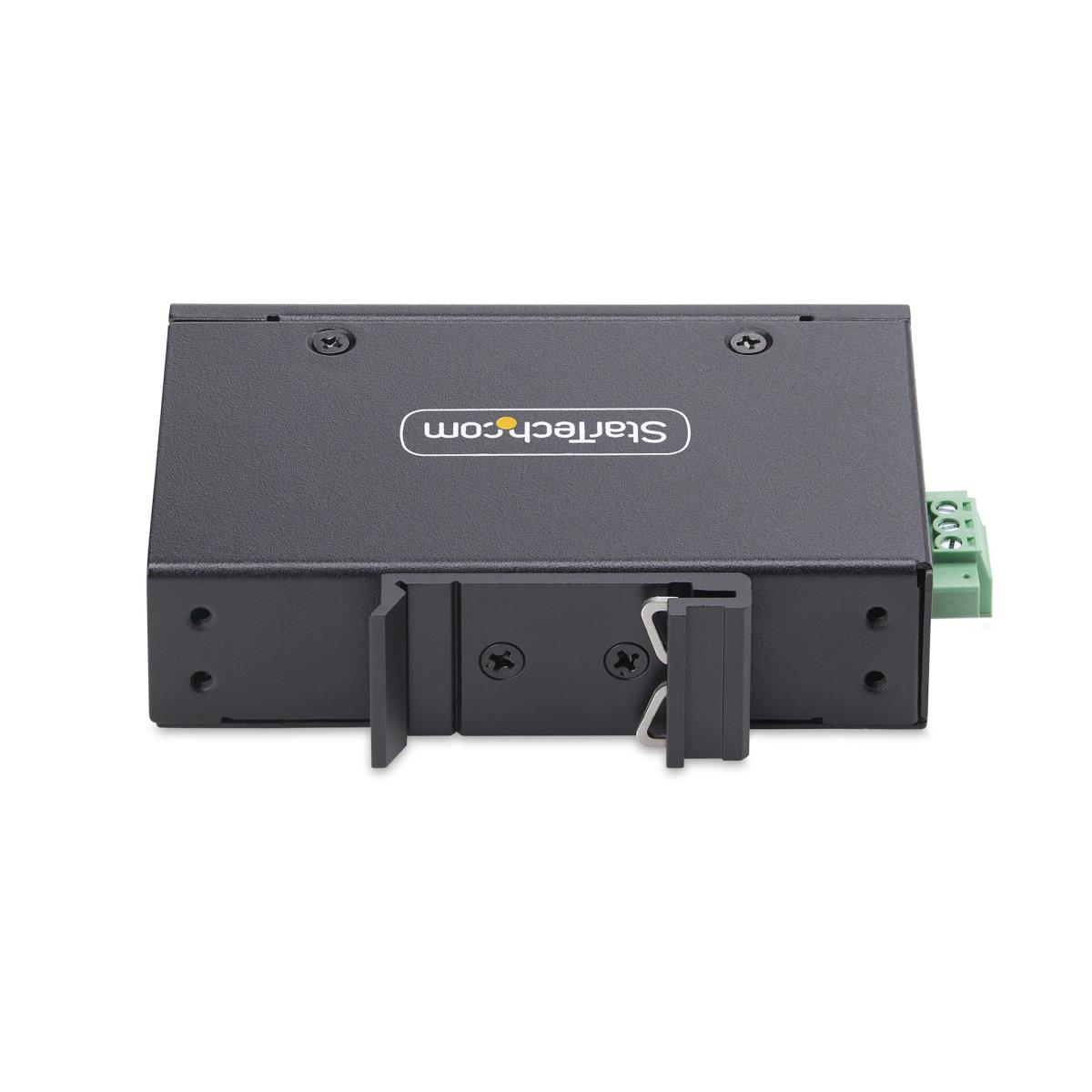

| DIN rail mounting | Yes |
| Product colour | Black |

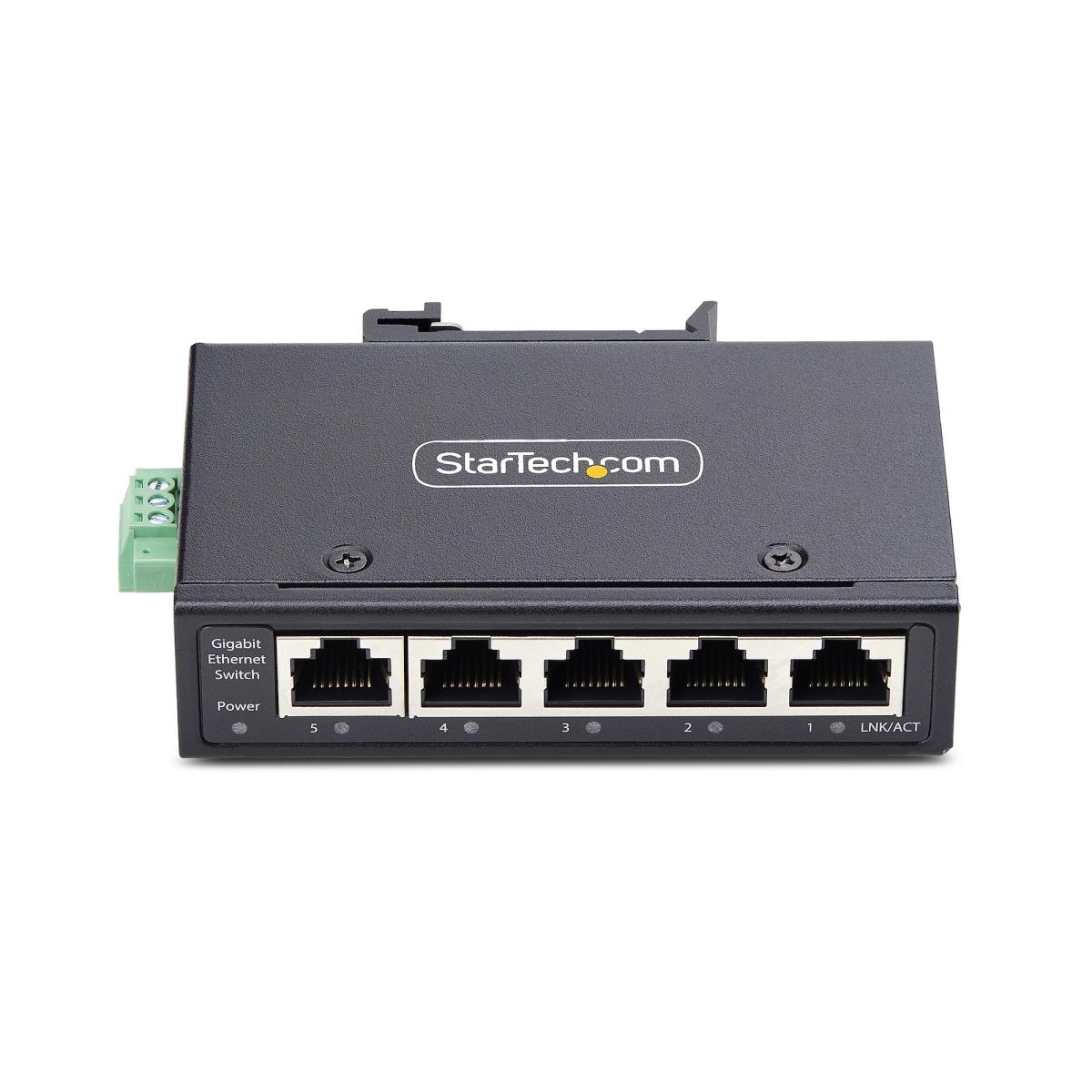

| LED indicators | Yes |
| Housing material | Metal |
| Performance | |
| Mean time between failures (MTBF) | 556710 h |
| Power | |
| Power supply included | Yes |
| Input voltage | 9 - 60 V |
| Power connector | Terminal block (3-pin) |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 60 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 221.7 g |
| Packaging content | |
| Quick start guide | Yes |
| Terminal block included | Yes |

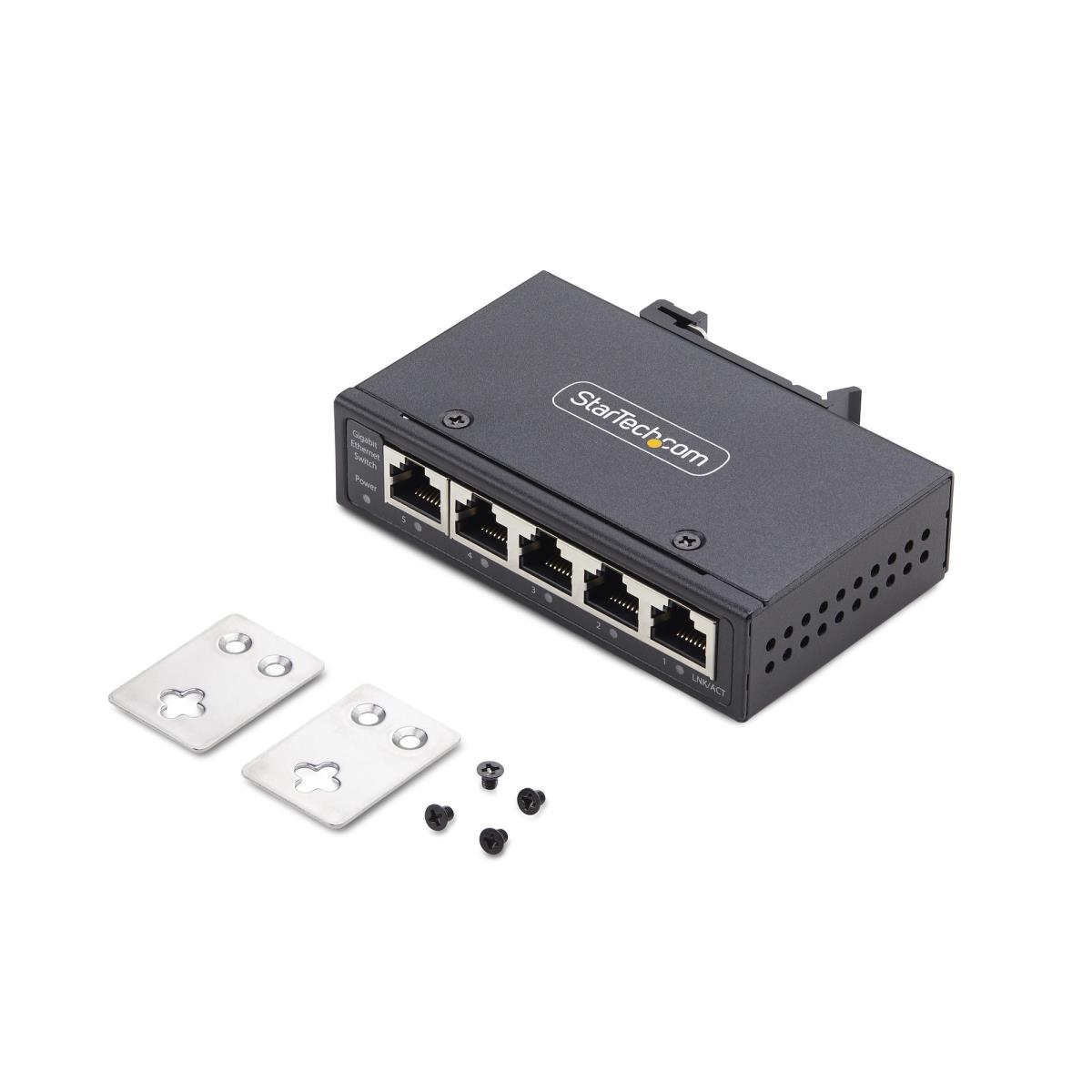

| Mounting brackets included | Yes |
| DIN rail included | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Mounting brackets included | Yes |
| DIN rail included | Yes |
| Package width | 111 mm |
| Package depth | 159 mm |
| Package height | 58 mm |
| Package weight | 293.7 g |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 556710 h |
| Housing material | Metal |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Certificates | |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 9 - 60 V |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 295 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 30 pc(s) |
