4 PORT USB 3.0 HUB METAL
Introduction
Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection
The ST4300U3C3 USB 3.2 Gen 1 Hub enables simultaneous data hub and USB charging functionality by adding three dedicated USB charge ports, as well as four USB 3.2 Gen 1 data ports, for a total of seven ports, all through a single USB 3.2 Gen 1 host connection.
The USB hub ports are compliant with the SuperSpeed USB 3.2 Gen 1 specification, offering data transfer rates up to 5 Gbps, and are backward compatible with USB 2.0 and 1.x specifications.
This externally powered USB hub also integrates 3 dedicated USB charging ports, providing 2 x 1A and 1 x 2A ports, enabling both data hub and USB charging station functionality. Support for USB Battery Charging Specification 1.2 lets you charge most mobile devices, including the Apple® iPhone®, iPad®, Microsoft® Surface™, Samsung Galaxy Tab™ and more.

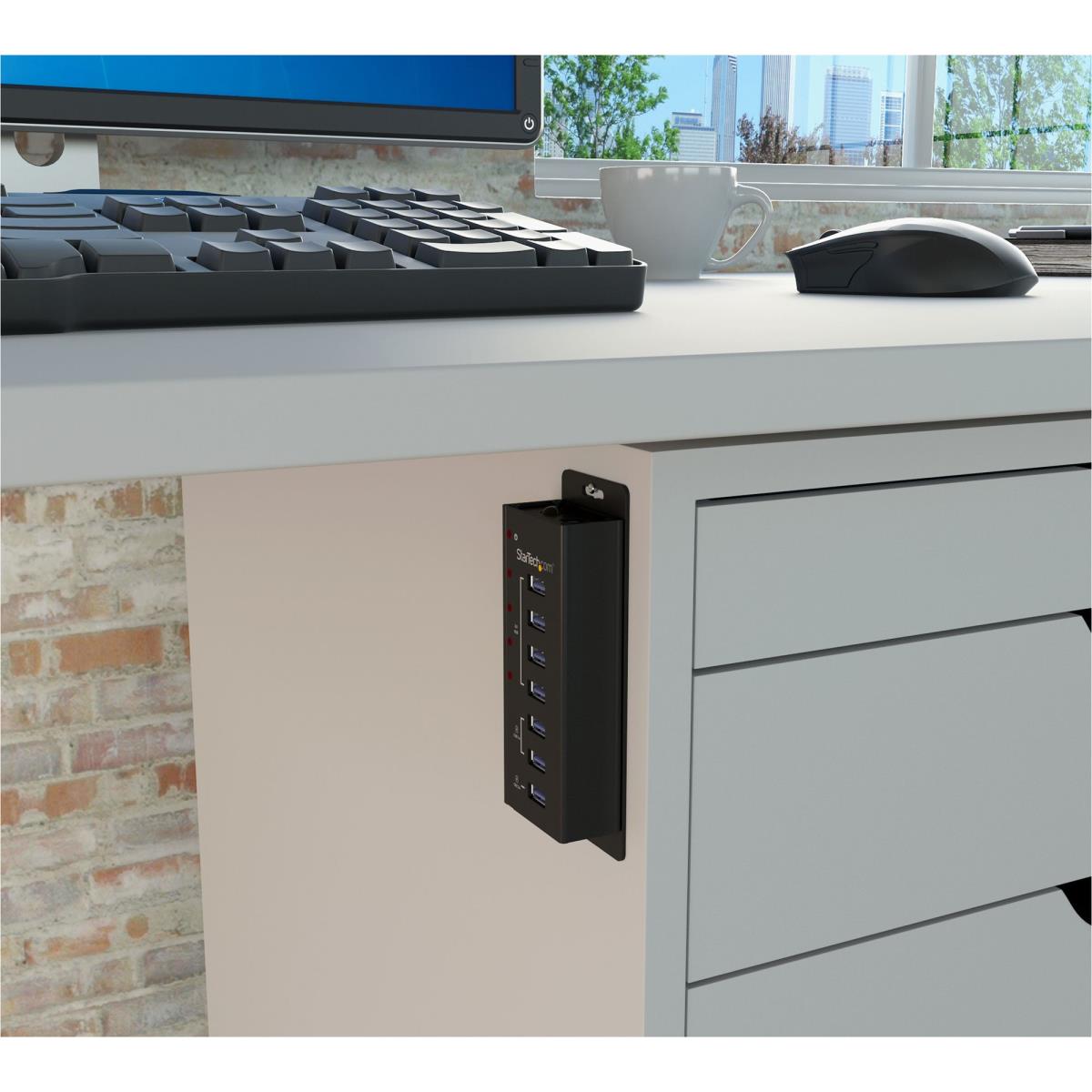

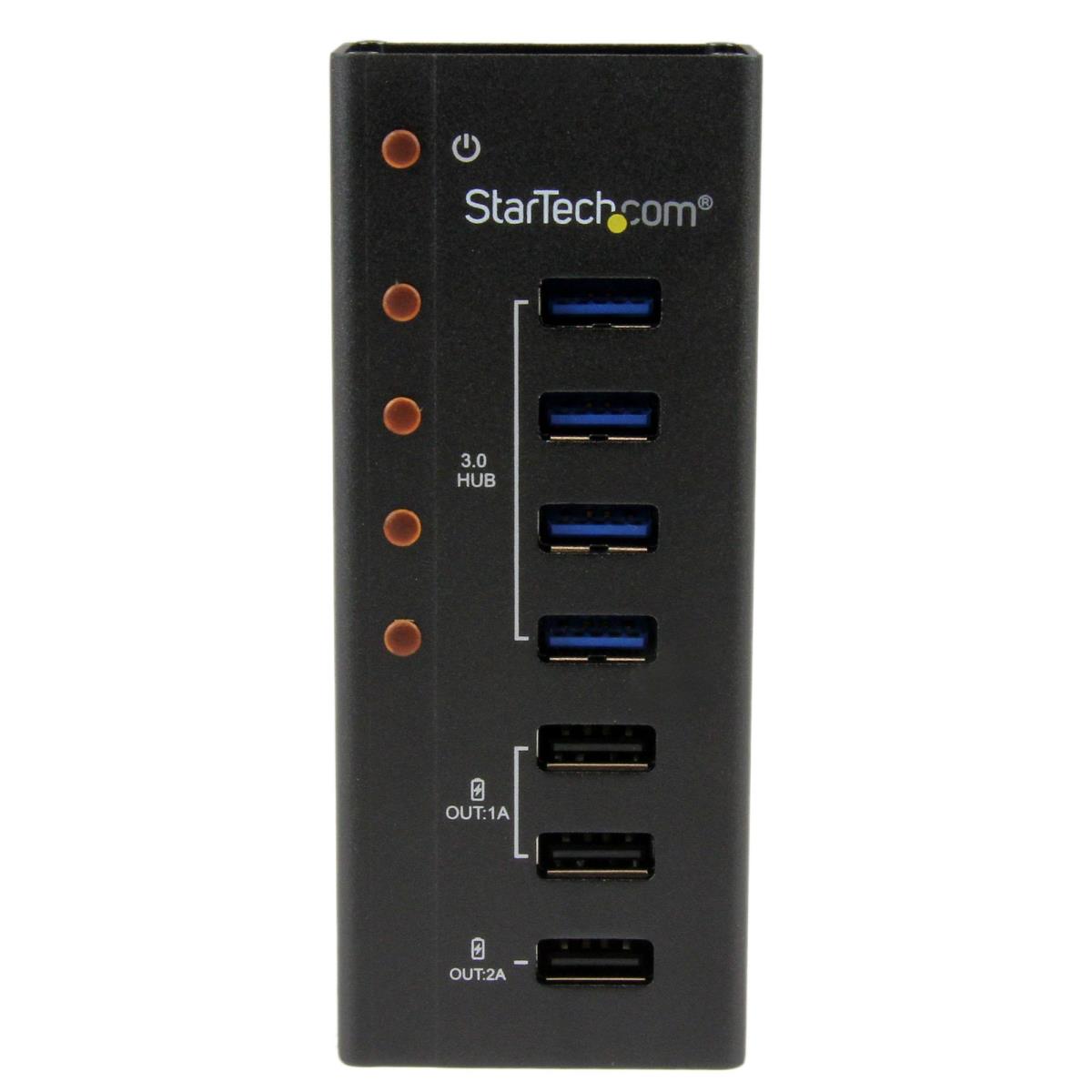

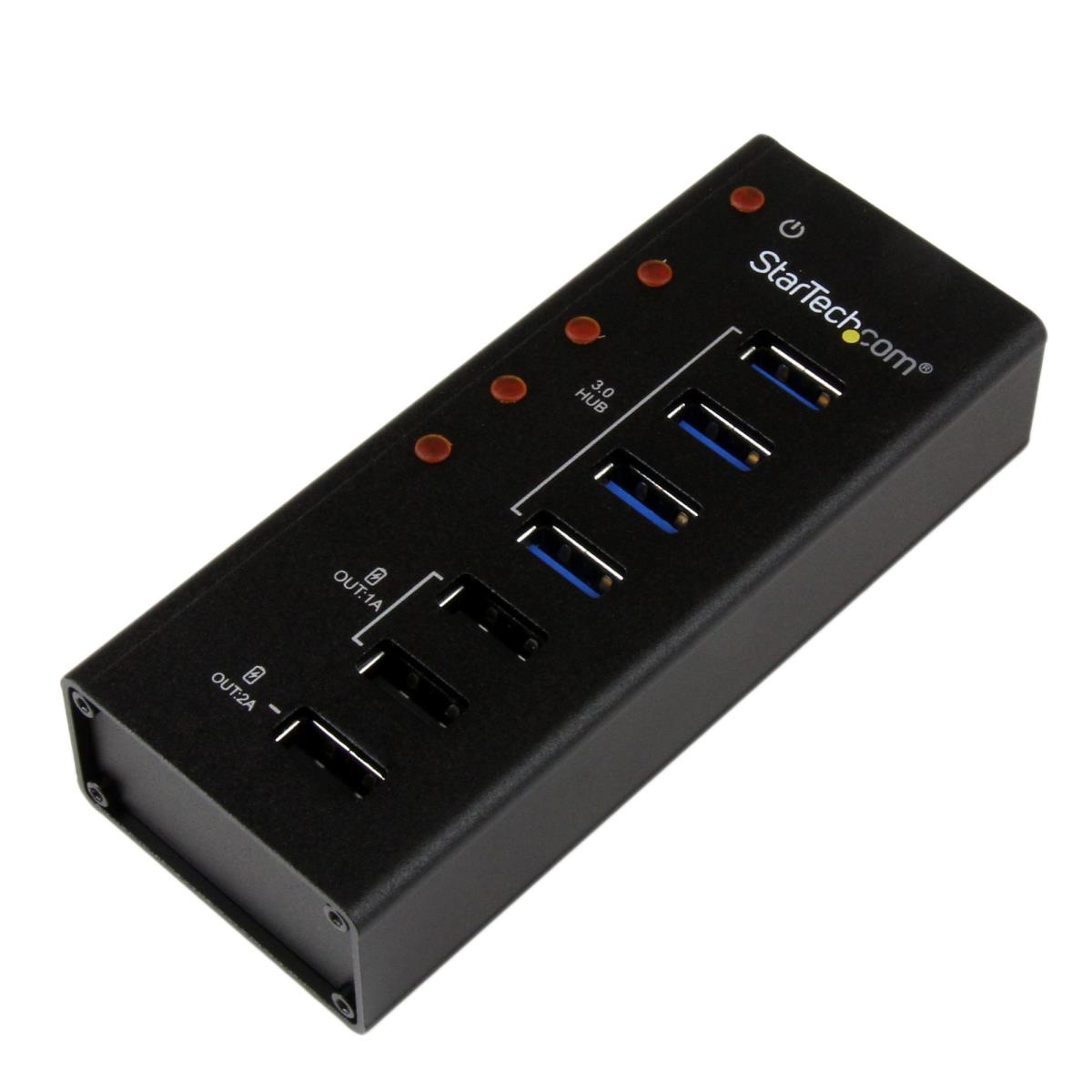

Designed for easy access to the ports when connecting or disconnecting devices, the hub features an upright port orientation, in a compact and durable metal enclosure. For added flexibility, the hub includes a bracket for wall-mounted installations.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|

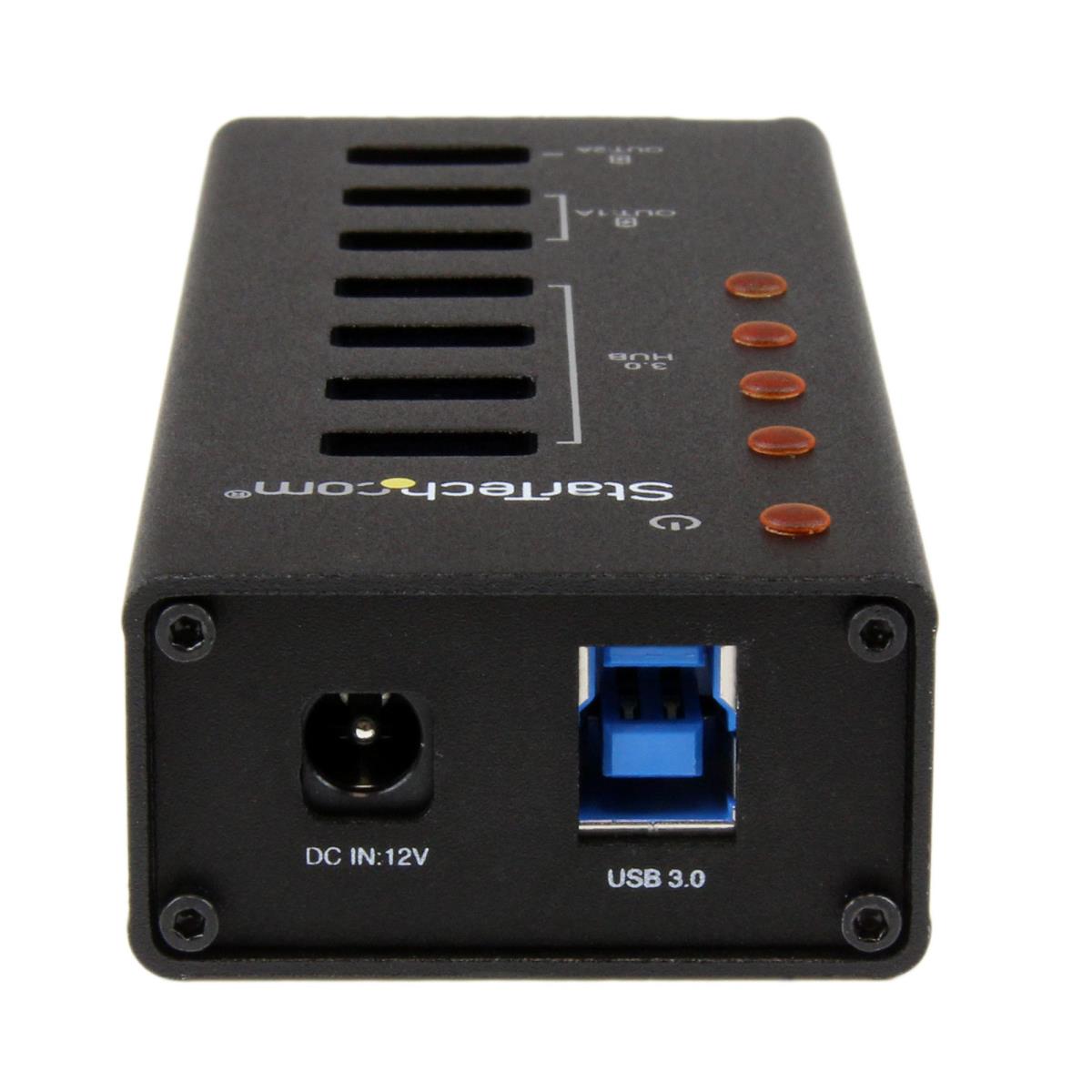

| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Hub interfaces | USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity | 3 |
| DC-in jack | Yes |
| Ports quantity | 7 |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Aluminium |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input current | 1.3 A |
| Power plug type | Type M |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 100 - 240 V |
| Power supply type | DC |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 131 g |
| Width | 45 mm |
| Depth | 110 mm |
| Height | 24 mm |
| Package width | 105 mm |
| Package depth | 171 mm |
| Package height | 88 mm |
| Package weight | 606 g |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 171 mm |
| Package height | 88 mm |
| Package weight | 606 g |
| Performance | |
| Data transfer rate | 5000 Mbit/s |
| Harmonized System (HS) code | 84719000 |

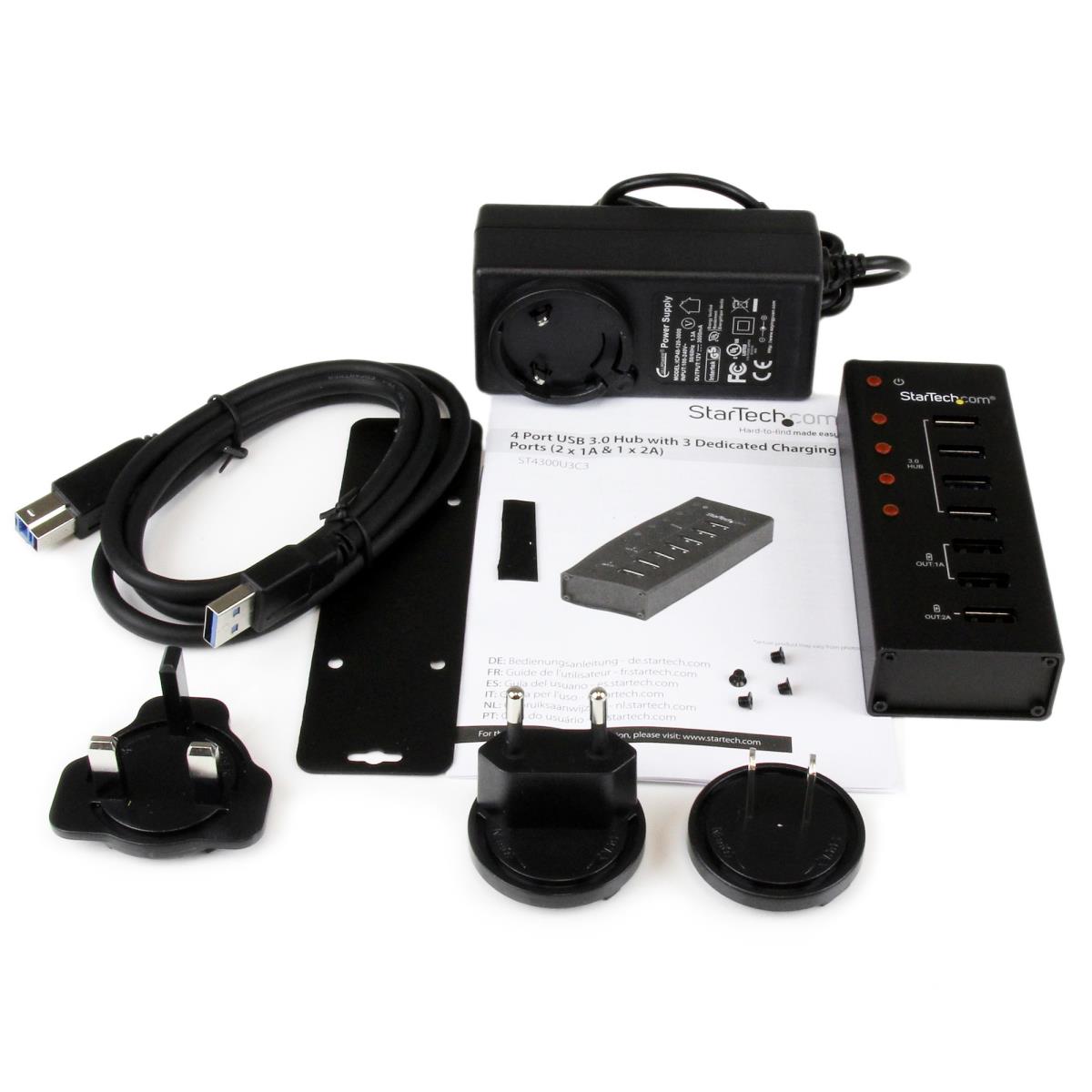

| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Included power plug types | AU, EU, NA, UK |
| Cables included | USB |
| AC adapter included | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Indication | |
| LED indicators | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 466 mm |
| Master (outer) case height | 362 mm |
| Products per master (outer) case | 30 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | VLI - VL812 |
