7 PORT USB 3.0 HUB MINI LAPTOP
Introduction
Add 7 external, USB 3.2 Gen 1 ports to a computer from a single USB connection
The ST7300USB3B USB 3.2 Gen 1 Hub lets you add seven external USB 3.2 Gen 1 ports to a computer from a single USB 3.2 Gen 1 host connection.
Offering data transfer rates up to 5 Gbps, the USB hub meets SuperSpeed USB 3.2 Gen 1 specifications and is backward compatible with USB 2.0 and 1.x devices.
Designed for easy port access when connecting or disconnecting devices, the hub features one-sided port orientation, with current overload detection and protection across all seven ports.The hub supports Plug-and-Play and Hot-Swap technologies, letting you switch and operate your connected devices without having to power down the host computer.
The USB hub is bus powered for use in environments where a power outlet may be unavailable, but is perfect for high-power USB devices when used with the included optional power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Ports quantity | 7 |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Plastic |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input current | 1.3 A |
| Power plug type | Type M |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | DC |
| Technical details | |
| Product colour | Black |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 148 g |
| Width | 70 mm |
| Depth | 172 mm |
| Height | 23 mm |
| Package width | 211 mm |
| Package depth | 150 mm |
| Package height | 63 mm |
| Package weight | 556 g |
| Packaging data | |
| Package width | 211 mm |
| Package depth | 150 mm |
| Package height | 63 mm |
| Package weight | 556 g |
| Performance | |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 43977.72 h |
| Harmonized System (HS) code | 84719000 |

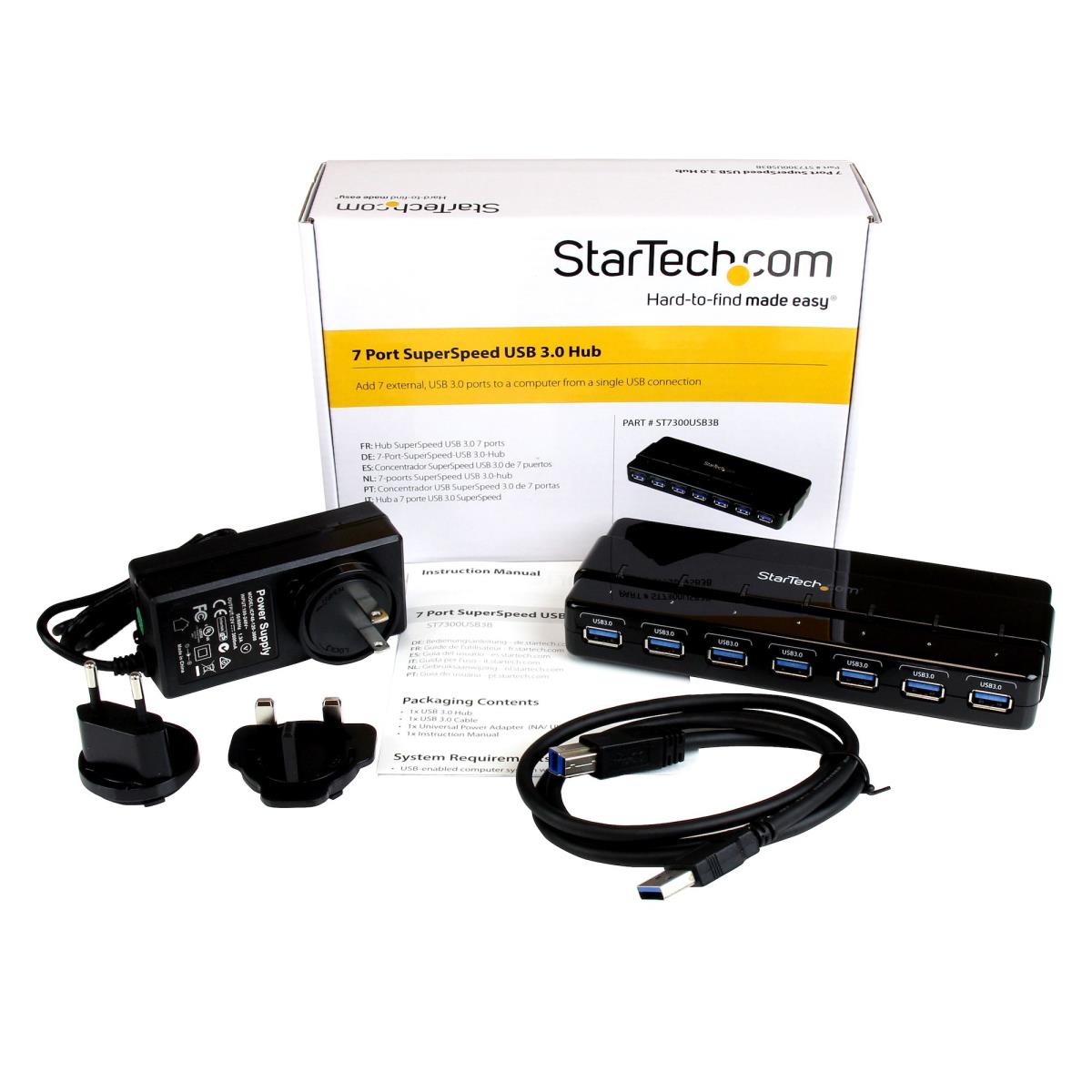

| Packaging content | |
| Manual | Yes |
| Included power plug types | AU, EU, NA, UK |
| Cables included | USB |
| AC adapter included | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -2 - 52 °C |
| Storage temperature (T-T) | -20 - 56 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Indication | |
| LED indicators | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 437 mm |
| Master (outer) case length | 334 mm |
| Master (outer) case height | 328 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Other features | |
| Chipset | VLI - VL812 |
