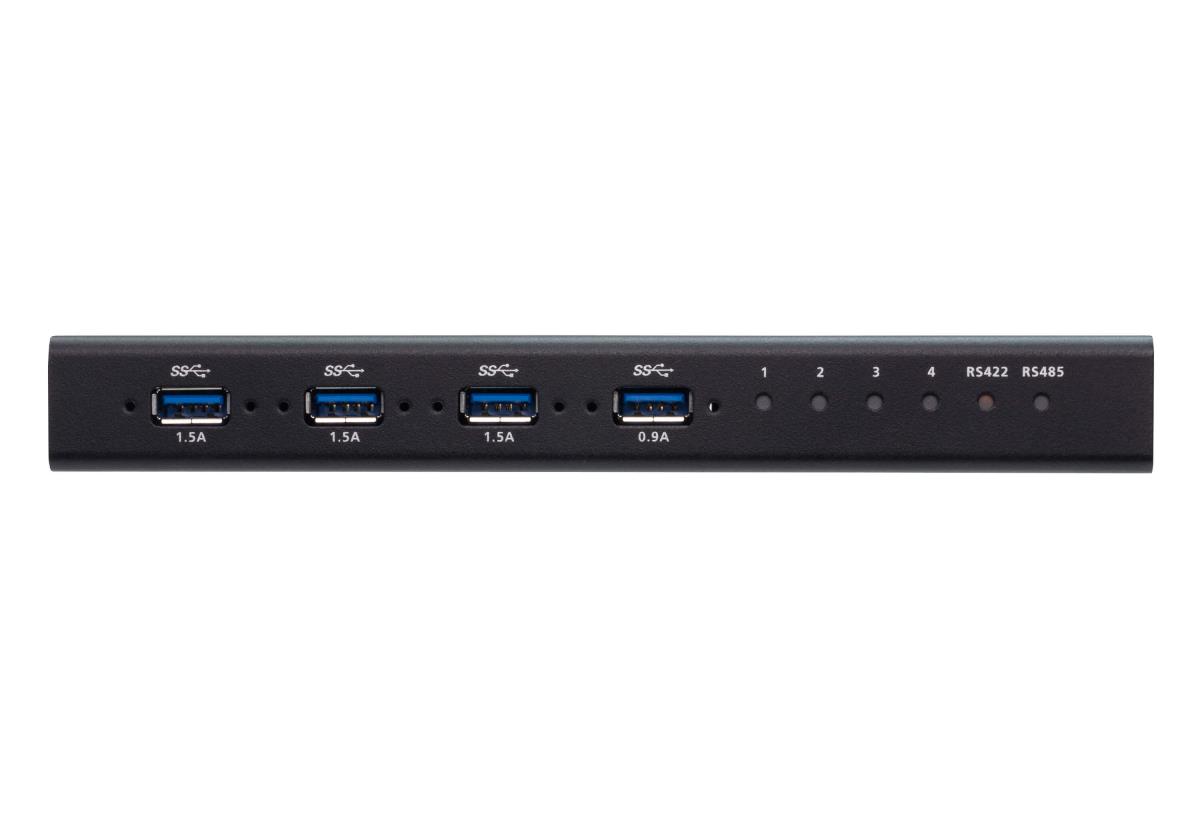

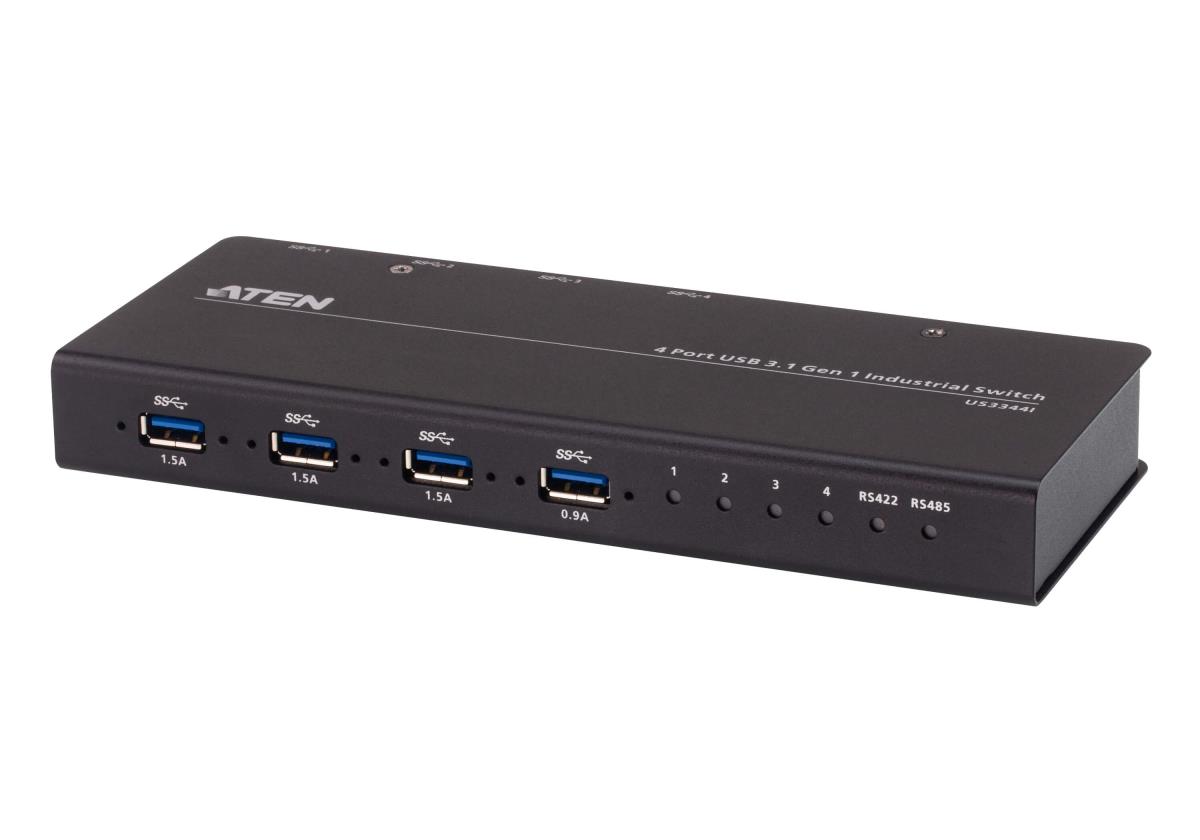

4X4 USB 3.1 SWITCH
Introduction
The US3344I is a 4-port USB 3.2 Gen 1 Industrial Switch that enables four computers to share and use USB 3.2 Gen 1 devices such as keyboard, mouse and other peripheral devices. Users can manually switch the focus to a particular computer using the pushbutton on the switch, or have the focus automatically switched based on detection of connected computers.

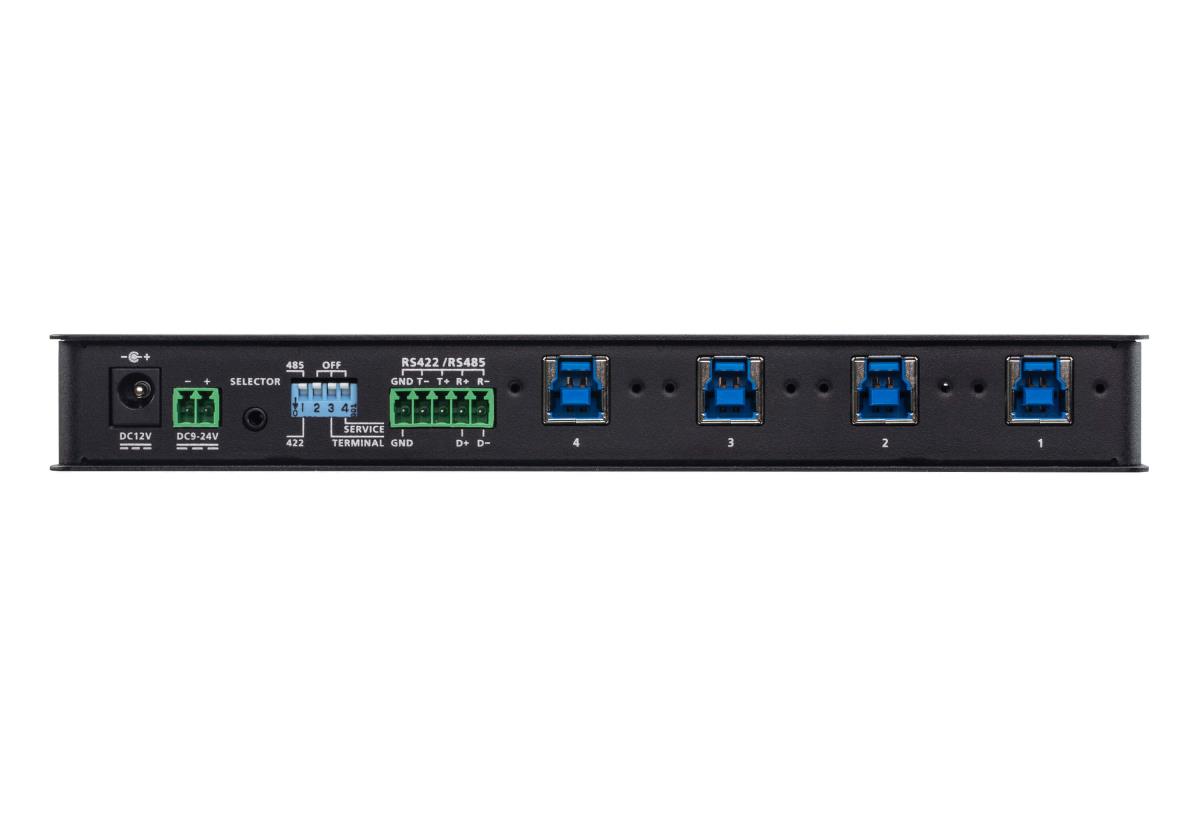

It eliminates the cost to implement the complicated redundant systems and equipment for each computer. The US3344I chassis and rack mountable design is suitable for any industrial environment. For extra convenience, it features an external remote control port that can simplify cabling layout. The US3344I allows for a neat and tidy installation – the USB cables are bundled to save the extra cost of purchasing USB cables.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Performance | |
| LED indicators | Yes |
| Housing material | Metal |
| Maximum data transfer rate | 5 Gbit/s |
| Over current protection | Yes |
| Hot-Plug support | Yes |
| Product colour | Black |
| Design | |
| Product colour | Black |
| Technical details | |
| Housing material | Metal |
| Over current protection | Yes |
| Hot-Plug support | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 200 mm |
| Height | 25 mm |
| Weight | 1.04 kg |
| Packaging content | |
| Cables included | USB |
| Quick start guide | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
