MATROX D1450-E4GB MATROX Matrox D-Series 1450 Quad HDMI.

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

D1450-E4GB MATROX Matrox D-Series 1450 Quad HDMI.

Part No:D1450-E4GB

Stock:1 In Stock

EAN Code:0790750256054

£977.14 Excl. VAT

£1,172.57 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Matrox D-Series 1450 Quad HDMI.

Introduction

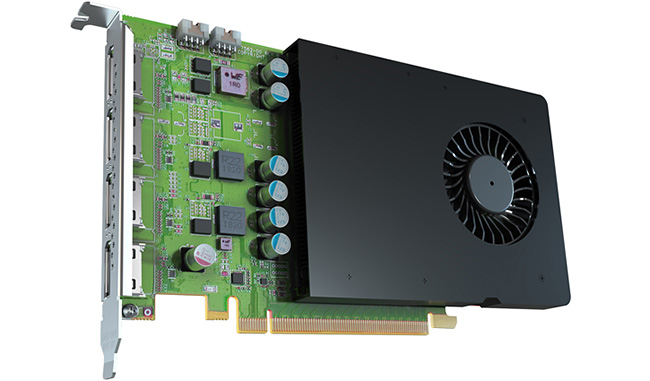

Matrox D-Series D1450 Quad HDMI Graphics Card

Product Info:

Purpose-built to drive next-generation video walls, the Matrox® D-Series D1450 quad-monitor graphics card powers up to four synchronized 4Kp60 displays from a single graphics board. A full-height, Gen 3 PCIe® x16 card with four native HDMI® connectors, D1450 delivers smooth video playback and exceptional graphics performance for a wide range of commercial and critical 24/7 video wall applications, including control rooms, enterprises, industries, government, military, pro AV, digital signage, security, and more. As part of the Matrox video wall portfolio, D1450 also offers a complete range of video wall software, APIs, SDKs, and libraries, allowing OEMs, system integrators, AV installers, and developers to create custom control functions and applications for any video wall installation.

•Matrox D-Series HDMI and DisplayPort cards
•Advanced capabilities:
•Drive up to four high resolution displays (HDMI or DisplayPort).
•Experience smooth video playback and graphics performance with up to 4 GB of graphics memory.

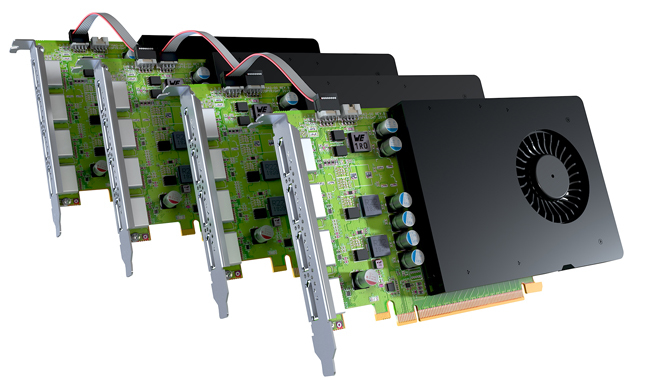

•Drive up to 16 synchronized displays and reduce tearing by framelocking up to four D-Series cards together
•using board-to-board framelock cables - also save slot space as a separate card is not needed for the synchronization.
•Run the latest professional applications with its support for Microsoft® DirectX® 12, OpenGL®
•Prevent loose cabling with secure connectors.
•HDCP compliant:
•Display HDCP-protected content with D-Series graphics cards.
•Capture and display of HDCP-protected content on video walls by coupling D-Series with Matrox Mura IPX capture cards
•Proven video wall ecosystem:
•Add best-in-class, multi-channel 4K capture, encode, decode, and display capabilities by combining D-Series with Matrox Mura IPX capture cards.
•Drive up to 64 1920x1080p60 displays by pairing D-Series with multiple Matrox QuadHead2Go™ multi-monitor controllers.
•Create artistic video walls by pairing D-Series with multiple QuadHead2Go multi-monitor controllers.
•Custom control:
•Customize your setup with the easy-to-use Matrox PowerDesk™ desktop management software.
•Deploy tailor-made display configurations including stretched or independent desktops, clone mode, pivot, bezel management, edge overlap, and more.
•Easily manage your video walls with the intuitive Matrox MuraControl™ software.
•Develop custom functions and/or personalized applications using the Matrox video wall APIs, SDKs, and libraries.
•Applications:
•Digital signage, process control, military, house of worship, corporate communications, retail, industrial, automation and production, security

Specifications

Processor
Graphics processor familyNVIDIA
Maximum resolution4096 x 2160 pixels
Memory
Discrete graphics card memory4 GB
Graphics card memory typeGDDR5
Ports & interfaces
HDMI version2.0
HDMI ports quantity4
Interface typePCI Express x16 3.0
Video
OpenCL version1.2
DirectX version12.0
OpenGL version4.5
HDMI version2.0
HDCPYes
Dual Link DVINo
PhysXNo
Performance
OpenCL version1.2
DirectX version12.0
OpenGL version4.5
HDCPYes
Dual Link DVINo
TV tuner integratedNo
PhysXNo
Design
Cooling typeActive
CertificationRegulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Environmental compliance: EU RoHS, China RoHS, REACH
Software
Windows operating systems supportedWindows 10 Pro x64, Windows 10 x64
Power
Power consumption (typical)47 W
Technical details
Cooling typeActive
TV tuner integratedNo
Sustainability certificatesRoHS
Harmonized System (HS) code84733020
System requirements
Windows operating systems supportedWindows 10 Pro x64, Windows 10 x64
Minimum system requirementsSingle available PCIe x16 slot, 4 GB of system memory
Certificates
CertificationRegulatory compliance: FCC (US) Class B, CE (European Union) Class B, RCM (Australia/New Zealand) Class B, KC (Korea) Class B, ICES-3 (Canada) Environmental compliance: EU RoHS, China RoHS, REACH
Logistics data
Harmonized System (HS) code84733020
Weight & dimensions
Width127 mm
Depth202 mm
