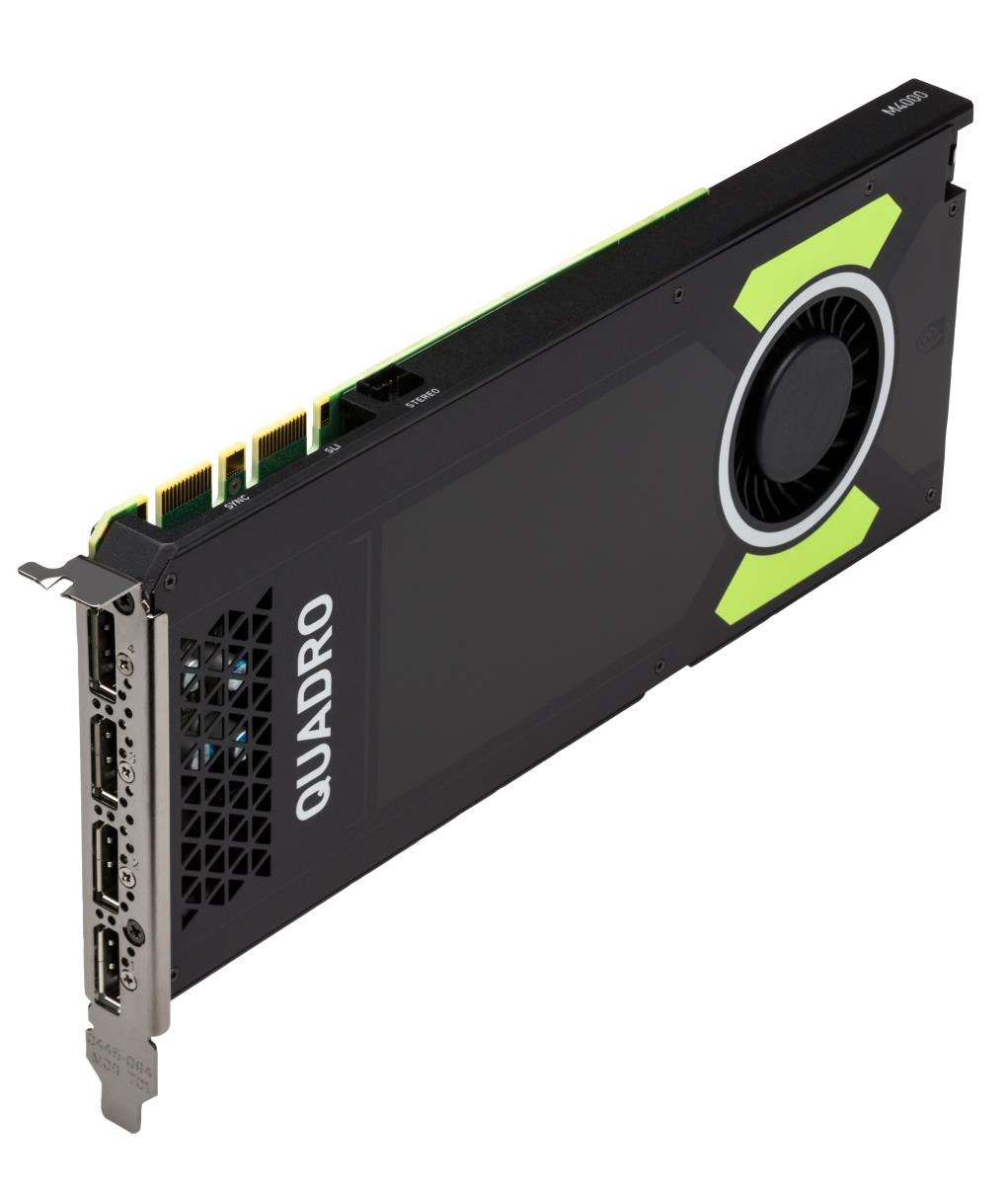

EU Product - NVIDIA Quadro M4000 PCIe 3.0 - Graphics card - PCI-Express
Introduction
Create and render large, complex product design and media and entertainment models and datasets by taking advantage of the new Maxwell GPU architecture features in the flexible, single-slot NVIDIA® Quadro® M4000 graphics card.
Features
- Experience ultra-fast visualization and compute horsepower with 8GB ultra-fast GDDR5 memory and 1664 CUDA® parallel processing cores that provide excellent support for accelerated single-precision computing workflows.
- With four DisplayPort 1.2 connectors, you can drive up to four 4K displays or two 5k displays. Then easily manage them with included NVIDIA® Mosaic™ and NVIDIA® nView® technologies. Frame-lock multiple displays with the optional NVIDIA® Sync card.
- Boost application performance in real time while staying within the power and thermal envelope of the card with NVIDIA® GPU Boost.
- Easily support your professional software application base with comprehensive ISV certifications.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| CUDA cores | 1664 |
| CUDA | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Graphics processor | Quadro M4000 |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Memory bandwidth (max) | 192 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR5 |
| Ports & interfaces | |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | 5.0 |
| OpenGL version | 4.5 |
| Dual Link DVI | No |
| CUDA cores | 1664 |
| PhysX | No |
| Performance | |
| DirectX version | 12.0 |
| Shader model version | 5.0 |
| OpenGL version | 4.5 |
| Dual Link DVI | No |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
| Cooling type | Active |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 120 W |
| Technical details | |
| Cooling type | Active |
| TV tuner integrated | No |
| Compatible products | Z440, Z640 & Z840 |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Weight | 470 g |
| Height | 111.7 mm |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Compatible products | Z440, Z640 & Z840 |
