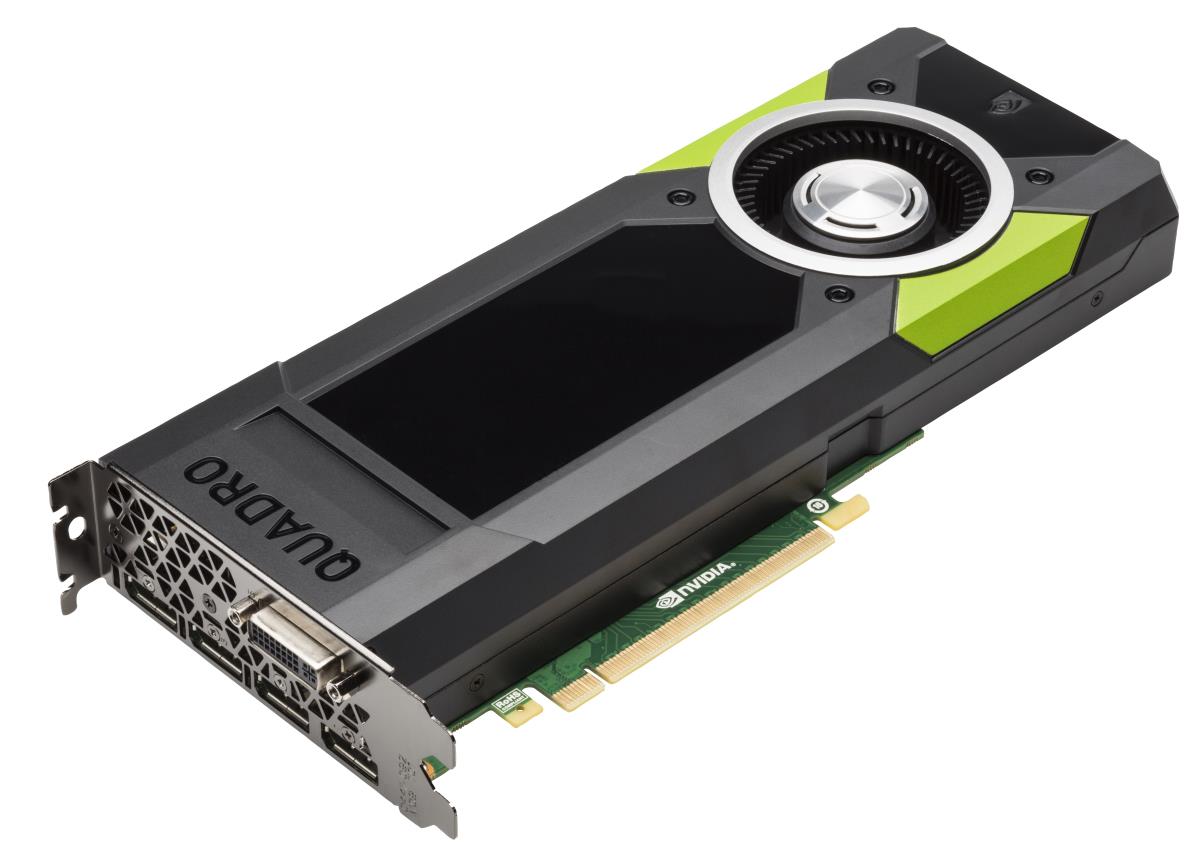

EU Product - Nvidia Quadro M5000 PCIe 3.0 - Graphics card - PCI-Express
Introduction
Accelerate 3D models, render complex scenes, and simulate large datasets in your most demanding product development, photorealistic rendering, media and entertainment, and simulation/analysis workflows with the dual-slot NVIDIA® Quadro® M5000 graphics card, based on the new Maxwell GPU architecture.
Features
- Create and render large, complex models and massive datasets with the ultra-fast visualization and compute horsepower of 8GB GDDR5 ultra-fast ECC memory and 2048 CUDA® parallel processing cores, which is well-suited for CUDA® or OpenCL environments.
- Integrated NVIDIA® GPU Boost
- Certified for your most common ISVs
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| CUDA cores | 2048 |
| CUDA | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Graphics processor | Quadro M5000 |
| Memory | |
| Discrete graphics card memory | 8 GB |
| Memory bandwidth (max) | 211 GB/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR5 |
| Ports & interfaces | |
| HDMI ports quantity | 0 |
| DisplayPort version | 1.2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 4 |
| Interface type | PCI Express x16 3.0 |
| Video | |
| DirectX version | 12.0 |
| Shader model version | 5.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| CUDA cores | 2048 |
| PhysX | No |
| Performance | |
| DirectX version | 12.0 |
| Shader model version | 5.0 |
| OpenGL version | 4.5 |
| HDCP | Yes |
| TV tuner integrated | No |
| PhysX | No |
| Design | |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cooling type | Active |
| Product colour | Green, Black, Silver |
| Number of slots | 2 |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Power | |
| Power consumption (typical) | 150 W |
| Weight & dimensions | |
| Number of slots | 2 |
| Weight | 525 g |
| Height | 111.7 mm |
| Length | 266.7 mm |
| Technical details | |
| Cooling type | Active |
| Product colour | Green, Black, Silver |
| TV tuner integrated | No |
| Compatible products | Z440, Z640 & Z840 |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Compatible products | Z440, Z640 & Z840 |
