STARTECH.COM MR12GI-NETWORK-CARD STARTECH.COM 2.5G M.2 NETWORK CARD INTEL -

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

MR12GI-NETWORK-CARD STARTECH.COM 2.5G M.2 NETWORK CARD INTEL -

Part No:MR12GI-NETWORK-CARD

Stock:7 In Stock

EAN Code:0065030901611

£68.22 Excl. VAT

£81.86 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

2.5G M.2 NETWORK CARD INTEL -

Introduction

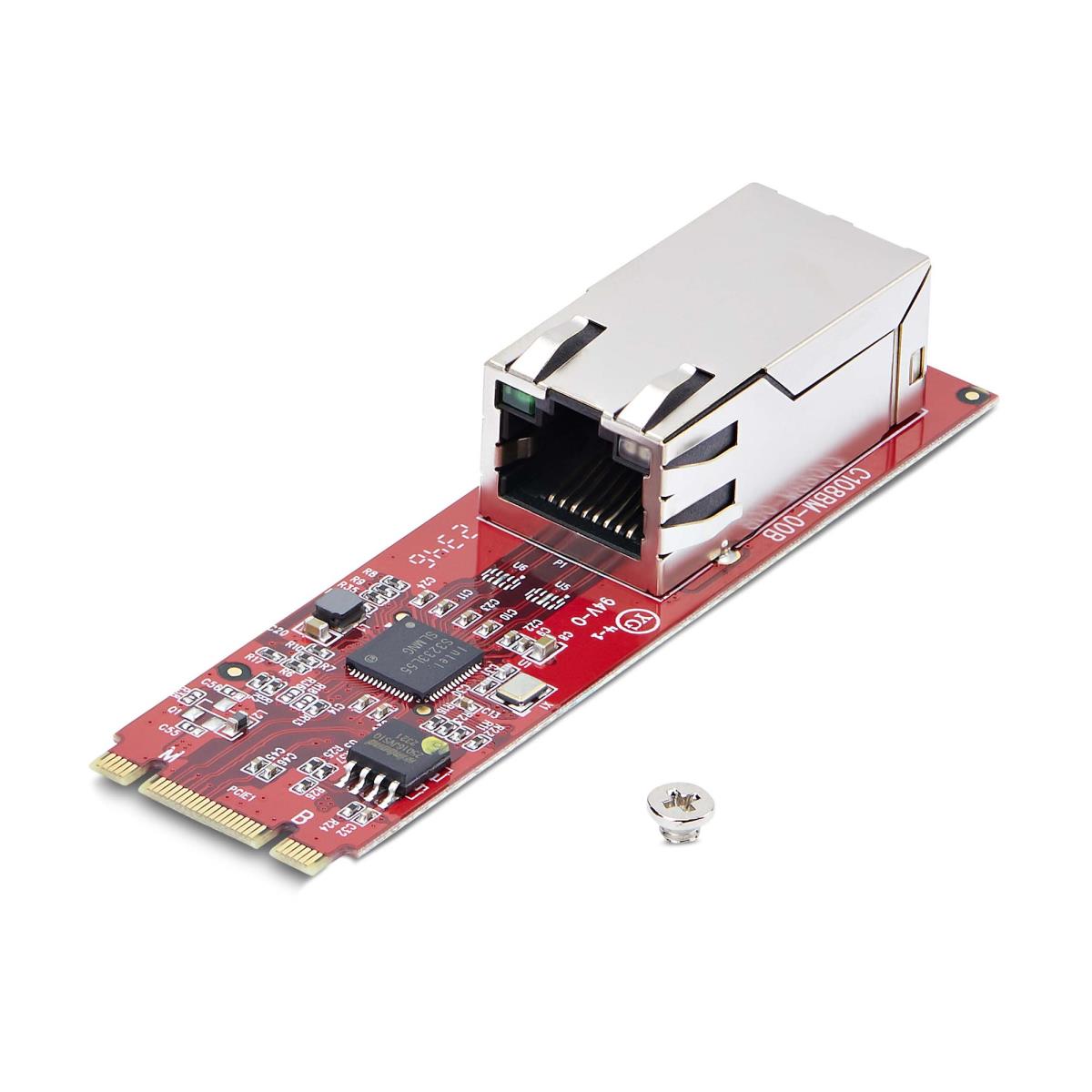

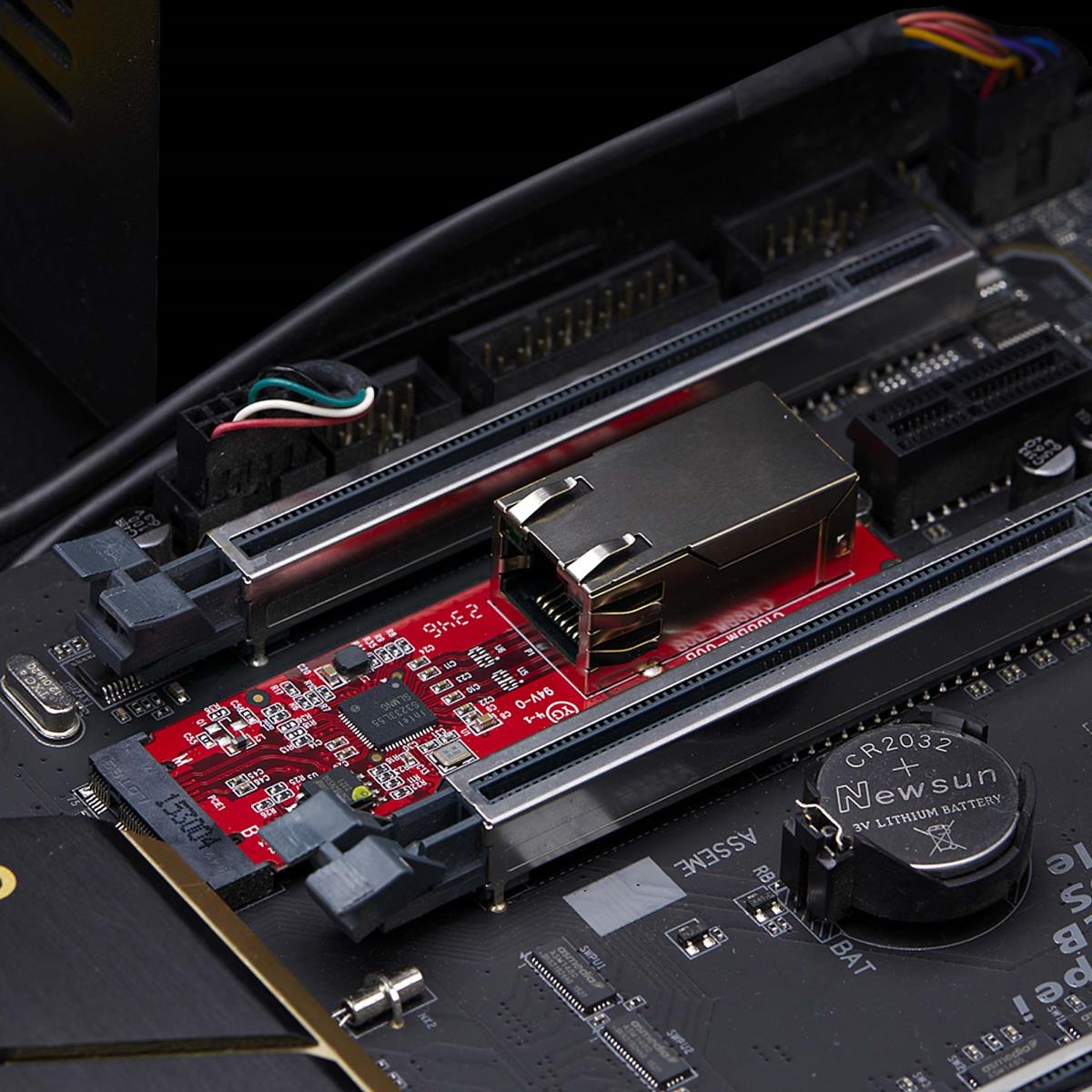

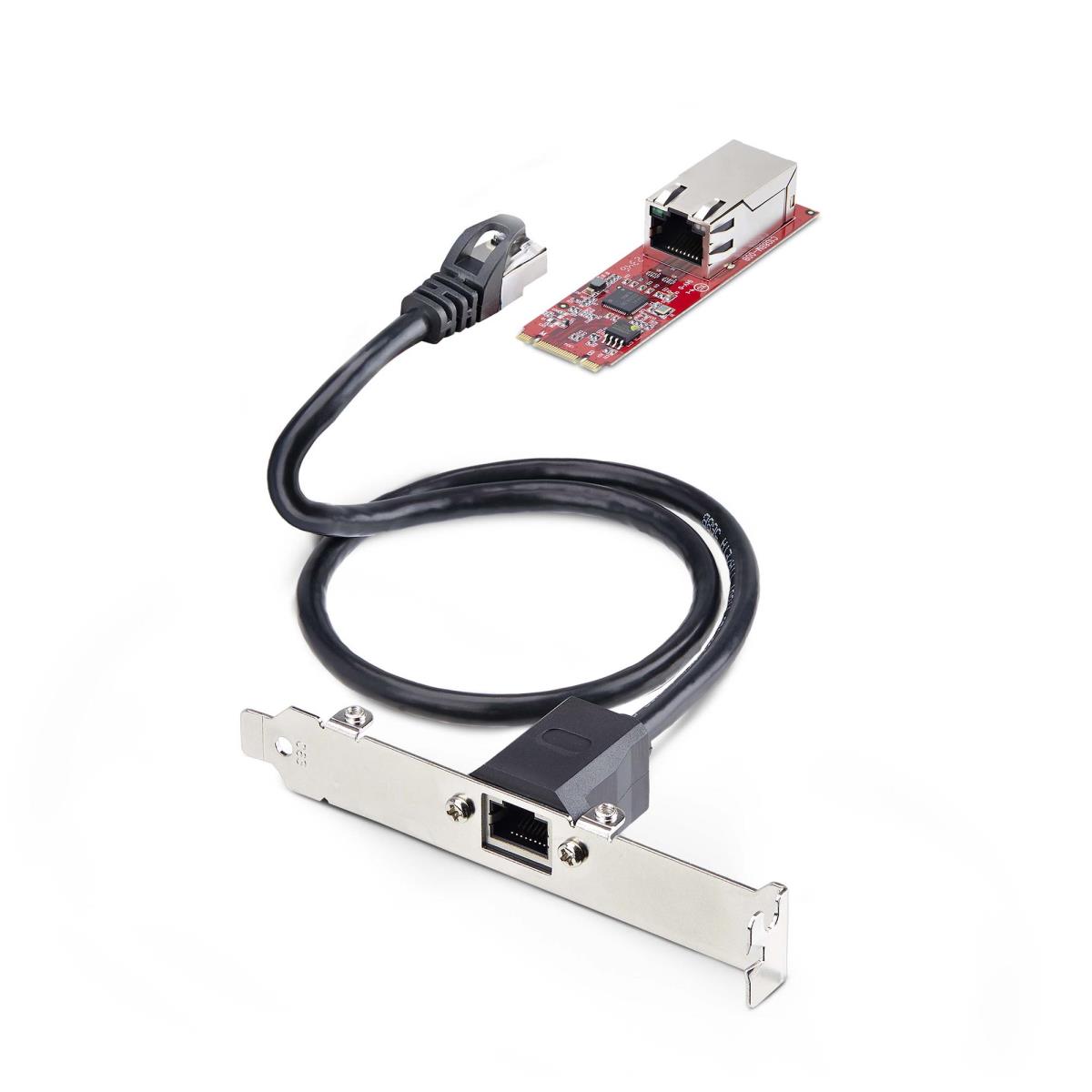

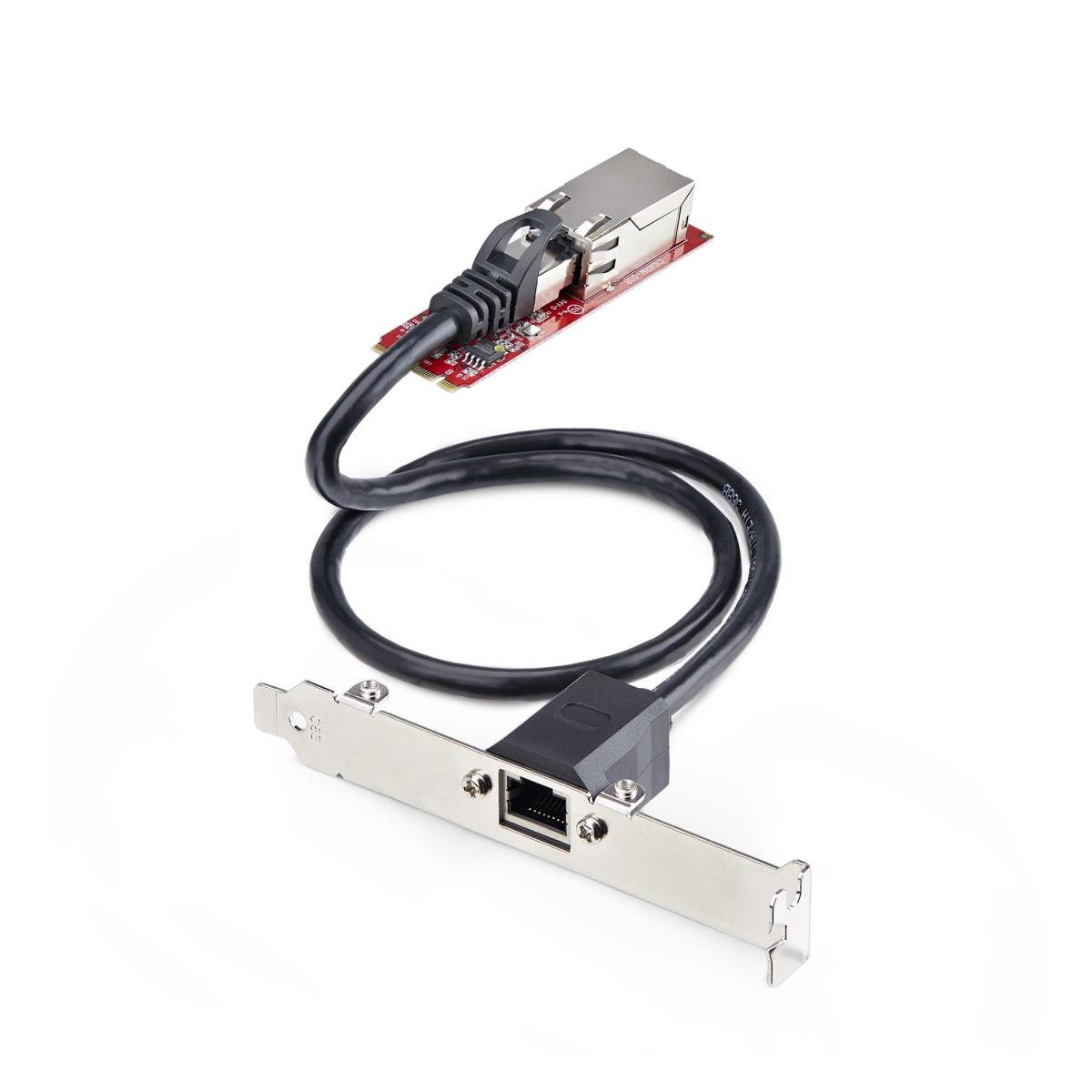

M.2 PCIe network card featuring the IntelŽ I225-V-chip, offering multi-gigabit speeds with support for NBASE-TThis 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vProŽ technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.Increased Network SpeedThe PCIe network card takes advantage of Intel vProŽ technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, VMware, and Linux.Advanced FeaturesThis Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.The StarTech.com Advantage

Specifications

Ports & interfaces
InternalYes
PCI version2.0
Ethernet LAN (RJ-45) ports1
InterfaceEthernet
Host interfaceM.2
Connectivity technologyWired
Bandwidth
Maximum data transfer rate2500 Mbit/s
Network
ChipsetIntel I225-V
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Jumbo frames9000
Ethernet LANYes
Cabling technologyNBase-T
Networking standardsIEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN readyYes
Jumbo frames supportYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Maximum data transfer rate2500 Mbit/s
Technical details
Product colourRed
Wake-on-LAN readyYes
Sustainability complianceYes
Sustainability certificatesTrade Agreements Act (TAA)
Design
Product colourRed
ChipsetIntel I225-V
InternalYes
LED indicatorsYes
Component forPC/Server
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Indication
LED indicatorsYes
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Sustainability
Sustainability complianceYes
Sustainability certificatesTrade Agreements Act (TAA)
Weight & dimensions
Width80 mm
Depth22 mm
Height15 mm
Weight15 g
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight170 g
Packaging data
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight170 g
Mounting brackets includedYes
Quick start guideYes
Packaging content
Mounting brackets includedYes

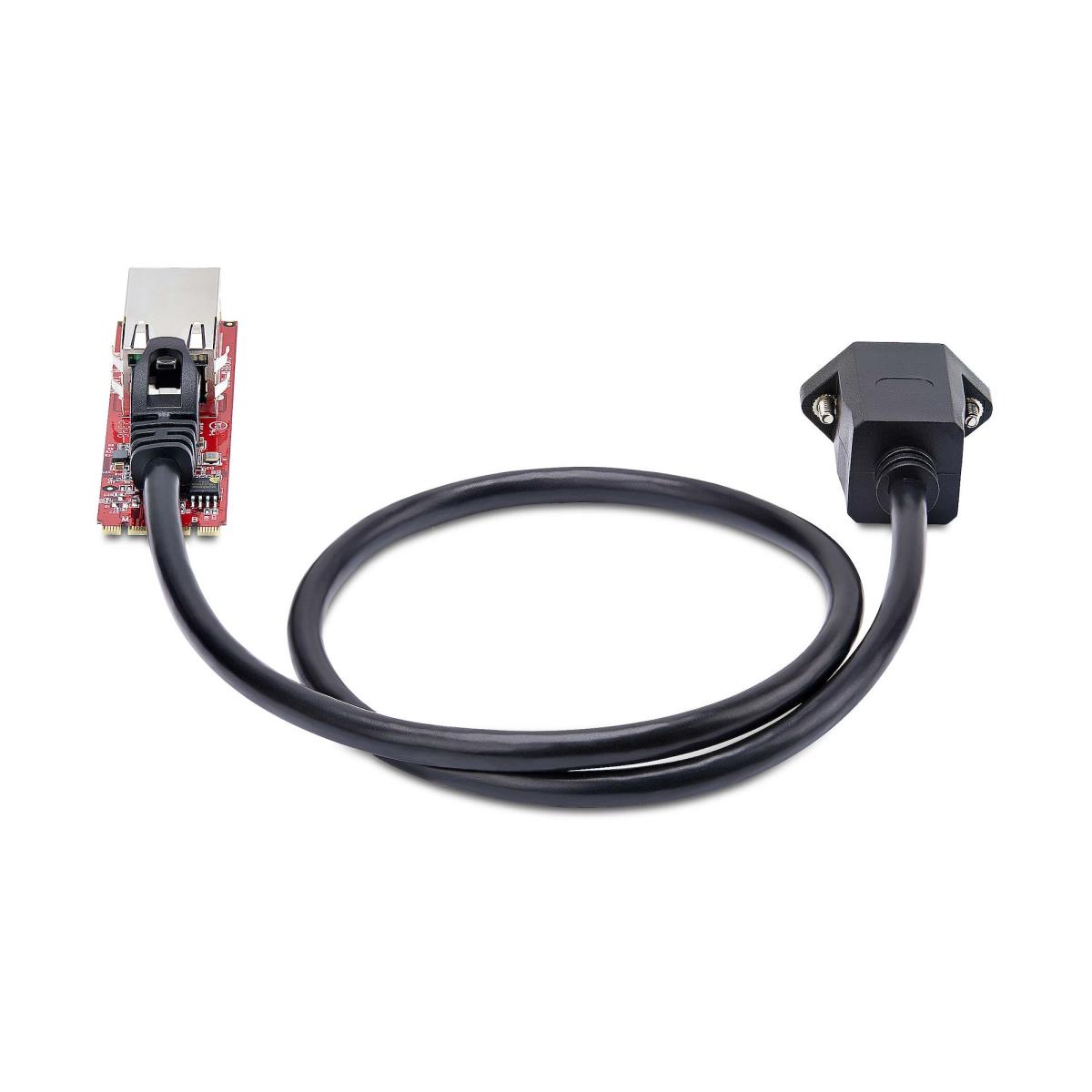

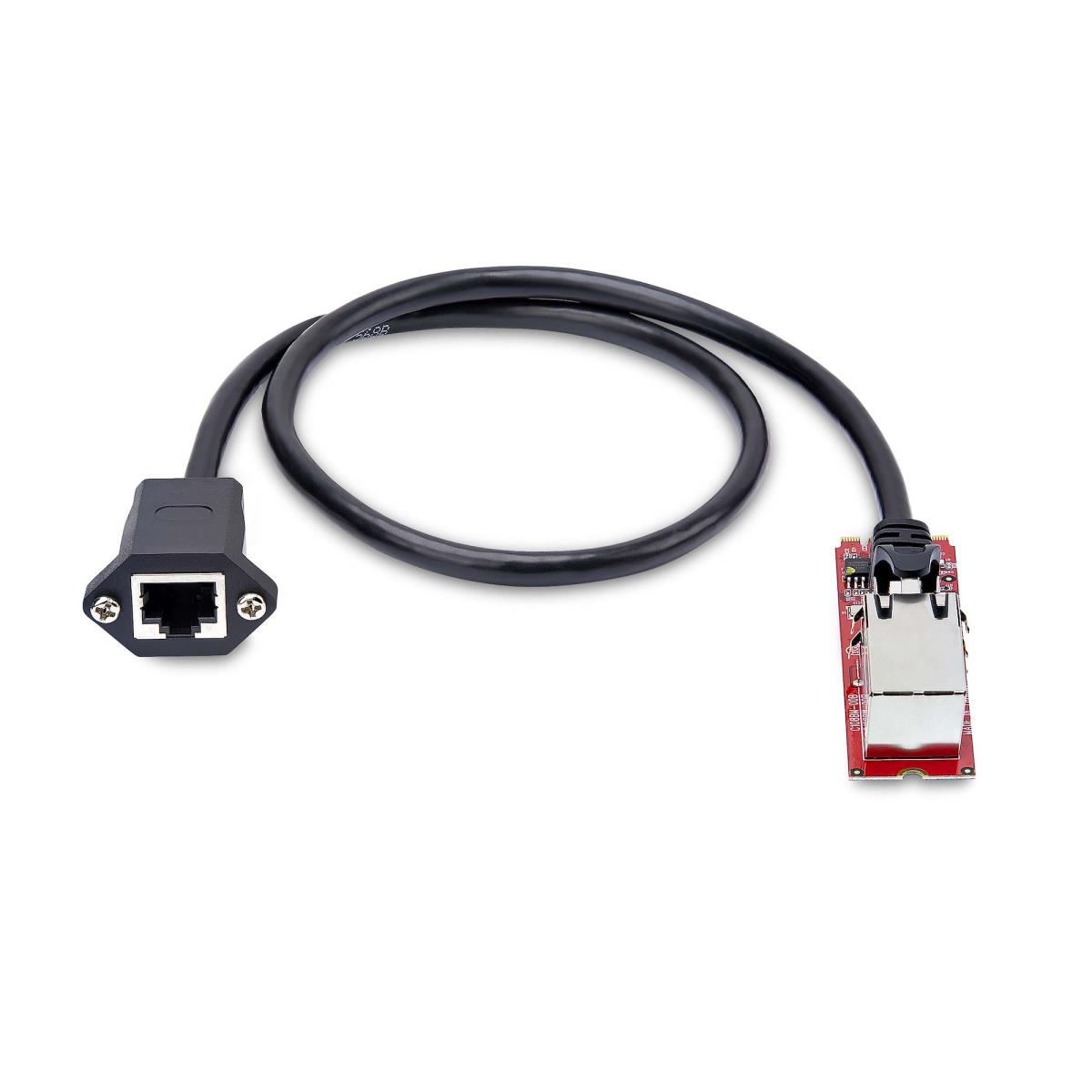

Packaging contentCAT6 Cable Adapter
Quick start guideYes
Performance
Wake-on-LAN readyYes
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Other features
ChipsetIntel I225-V
Jumbo frames9000
Quick start guideYes
Logistics data
Master (outer) case width500 mm
Master (outer) case length380 mm
Master (outer) case height310 mm
Products per master (outer) case60 pc(s)
