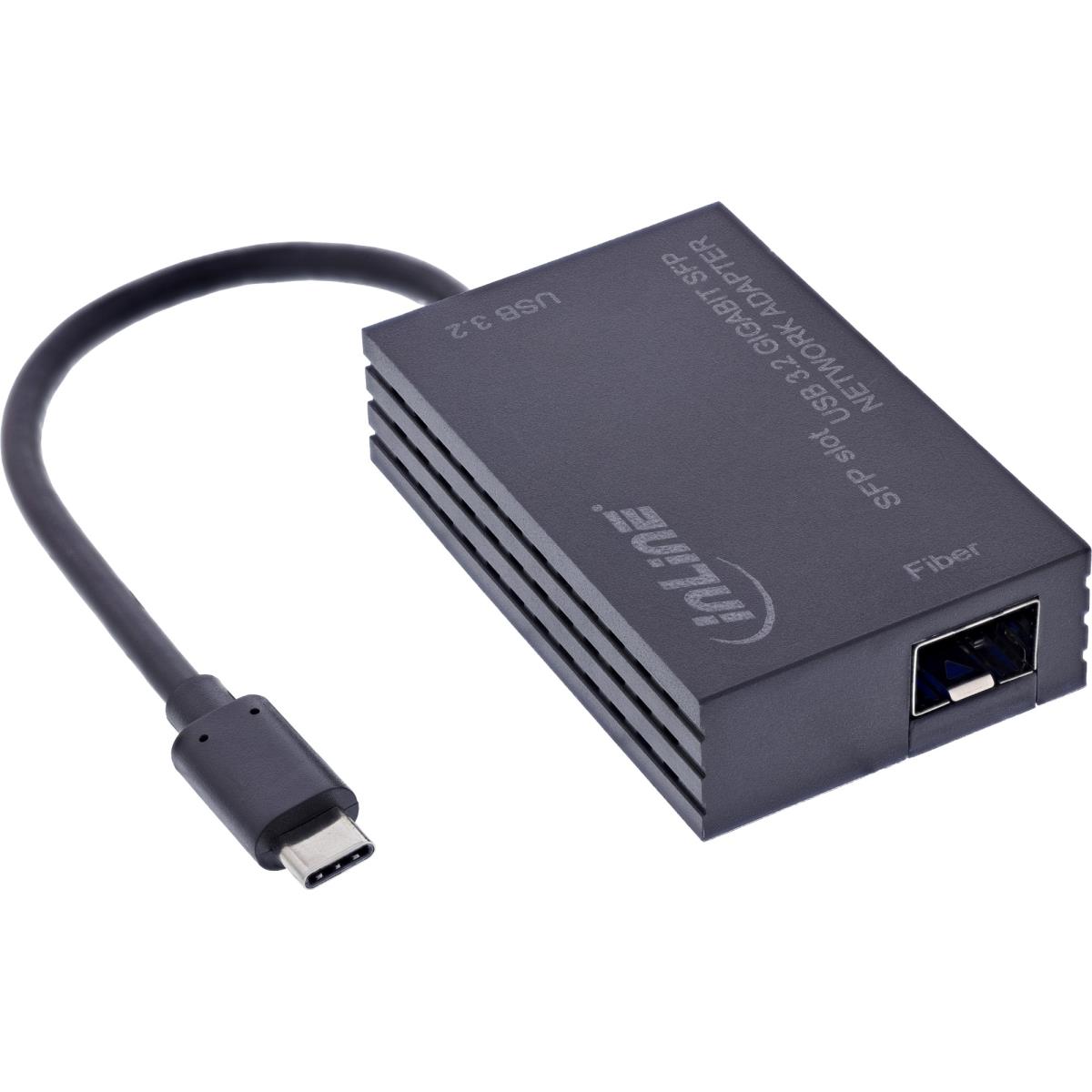

EU Product - - USB-C zu SFP Gigabit Fiber Netzwerkadapter (10/100/1000 Mb/s)
Introduction
Modular fibre optic connection via USB-C:Flexible use thanks to SFP port for various transceivers – ideal for changing network architectures.
Gigabit performance with energy efficiency:Supports up to 1,000 Mb/s and reduces power consumption thanks to IEEE802.3az.
Compatible with many operating systems:Broad support for Windows, macOS and Linux enables versatile integrations.
Loss-free data transmission:On-chip buffer, flow control and checksum offload ensure reliable and fast communication.
Ideal for industrial and IT environments:Works without interference in electromagnetically sensitive areas and over long distances.
The InLine® USB-C to SFP Gigabit Fiber Network Adapter is the ideal solution for professional network environments that require flexibility, reliability and compatibility. With its modular SFP port, various fiber optic transceivers (e.g. SX, LX) can be used – perfect for different ranges and infrastructures. The adapter supports network speeds of up to 1,000 Mb/s via the USB-C port, making it ideal for fast, stable connections with low latency.
The adapter scores particularly well in industrial applications, data centres or IT integration with features such as IEEE802.3az for energy saving, flow control to prevent packet loss and QoS capability for prioritised data transmission. Integrated support for VLAN tagging and automatic cable type detection also ensures easy integration into existing systems.
Thanks to its broad operating system support for Windows, macOS and Linux, the device is extremely versatile – for example, for temporary network connections, notebooks in service management or for permanent integration into rack solutions. The integrated on-chip buffer and extensive offload functions relieve the system and ensure loss-free data transmission, even under high loads.
Network protocols: IEEE802.3 / 802.3u / 802.3ab
VLAN / prioritisation: IEEE802.1Q, Layer 2 Priority
Jumbo frames: Up to 9K
Power saving functions: Power Down / Link Down / LPM
Skew/polarity correction
Crossover detection (Auto-MDI/MDI-X)
Chipset: Realtek RTL8153
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Interface | Fiber |
| Host interface | USB Type-C |
| Connectivity technology | Wired |
| USB connector form factor | Straight |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Compliance certificates | TÜV mark |
| Network | |
| Jumbo frames | 9000 |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| LAN controller | Realtek RTL8153 |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| VLAN support | Yes |
| Design | |
| Product colour | Black |
| Internal | No |
| Weight & dimensions | |
| Width | 45 mm |
| Depth | 286 mm |
| Height | 18 mm |
| Weight | 43 g |
| Package volume | 1400 cm³ |
| Package width | 175 mm |
| Package depth | 150 mm |
| Package height | 30 mm |
| Package weight | 103 g |
| Packaging data | |
| Package width | 175 mm |
| Package depth | 150 mm |
| Package height | 30 mm |
| Package weight | 103 g |
| Package volume | 1400 cm³ |
| Other features | |
| Jumbo frames | 9000 |
| Package volume | 1400 cm³ |
| Dimensions (WxDxH) | 45 x 286 x 18 mm |
