ATEN CE252 ATEN ATEN CE252 console extender

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

CE252 ATEN ATEN CE252 console extender

Part No:CE252

EAN Code:

price matchPrice Match
Guarantee
DeliveryExpeditious Delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

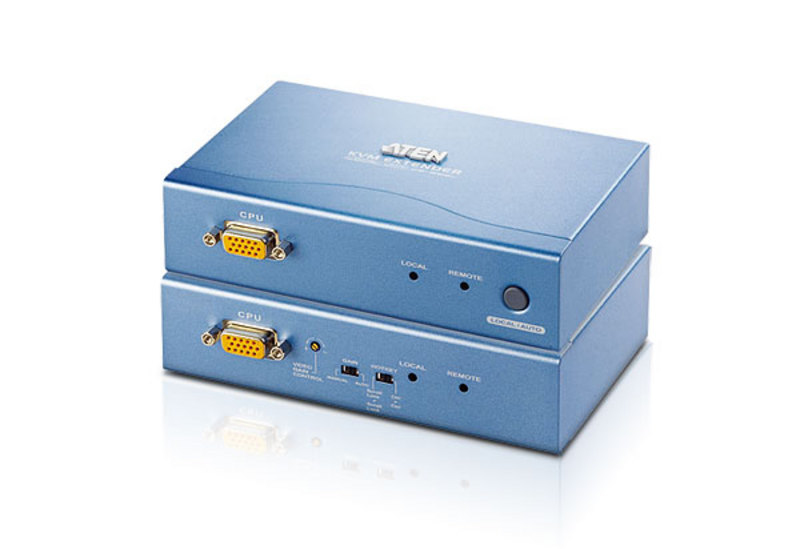

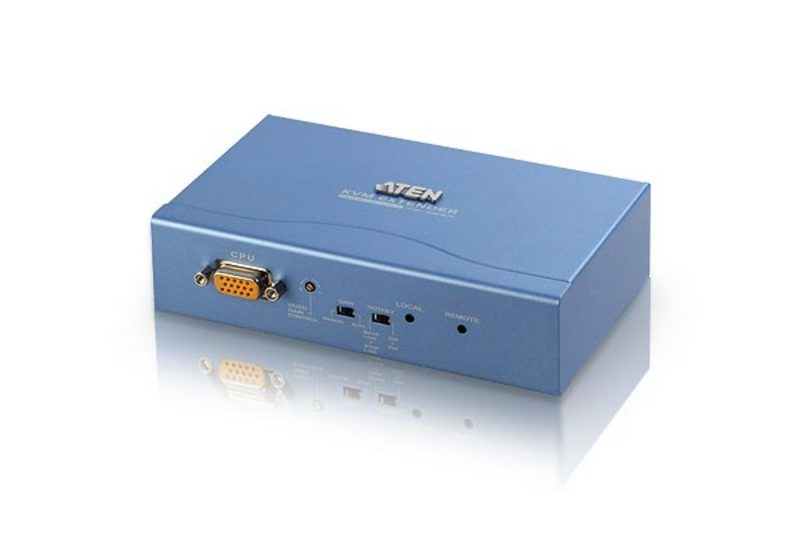

ATEN CE252 console extender

Introduction

The CE252 allows access to your KVM installation through a local console,or a remote console placed up to a distance of 300m(1000') away. Both the local and remote units support PS/2 consoles. In addition to these features,the CE252 includes a convenient port at the remote unit to connect an extra computer. This allows the remote user to combine their desktop computer with the remote console for increase efficiency and productivity

Features

  • Uses Cat 5e cable to connect the local and remote units (up to 300m apart)
  • Dual Console Operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
  • Additional PC connection allowed for the remote unit
  • Pushbutton selection - sequential selection between local and auto mode
  • Two gain control modes provided for the sharpest video quality-adjustable or automatic
  • Adjustable gain control - manually adjusts signal strength to compensate for distance
  • Automatic Gain Control - automatically adjusts signal strength to compensate for distance
  • High video resolution - up to 1600 x 1200
  • Supports DDC2B for local monitor (display data channel for communication between graphic card and monitor)
  • Supports VGA, SVGA, and Multisync Monitors
  • Built-in 8KV ESD protection and 2KV surge protection
  • Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient
  • Multiplatform support: Windows 2000/XP/Vista.

Specifications


Connectors Console Ports
(Local) 		Keyboard 1 x 6-pin Mini-DIN female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN female (Green)
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
KVM Ports Keyboard / Mouse / Video 1 x SPHD-15 Female (Yellow)
Console Ports
(Remote) 		Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
LEDs (Local) Local 1 (Green)
Remote 1 (Green)
LEDs (Remote) Local 1 (Green)
Remote 1 (Green)
Switches Selection Mode 1 x Pushbutton
Manual Gain Control (Remote) 1 x Knob
Auto/Manual Gain Selection(Remote) 1 x Slide
Hotkey Selection (Remote) 1 x Slide
Emulation Keyboard / Mouse PS/2
Video 1600 x 1200 @ 60Hz, 150m
1024 x 768 @ 60Hz, 300m
Power Consumption Local DC 5.3V, 2.6W
Remote
Environment Operating Temp. 0 - 50¢XC
Storage Temp. -20 - 60¢XC
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight Local 0.35 kg
Remote
Dimensions Local 13.90 x 8.80 x 3.80 cm
Remote 13.90 x 8.80 x 3.80 cm
