Part No:36963
Stock:55 In Stock
EAN Code:4002888369633

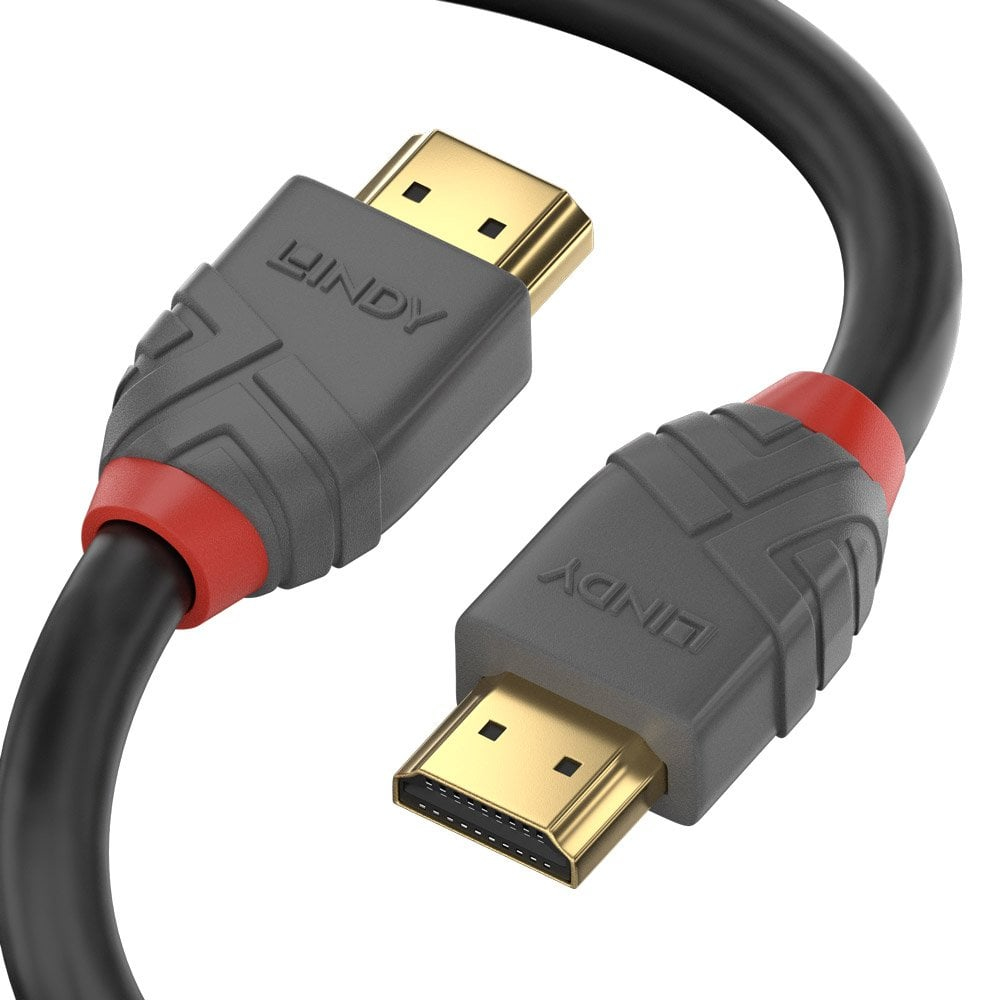

From the Lines cable connectivity concept developed by Lindy, Anthra Line HDMI cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line HDMI cables are premium connections that feature triple shielded with 30AWG copper conductors with for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 8bit are supported. Anthra Line HDMI cables are also capable of transmitting 32 channel audio and Dolby® True HD.
The HDMI 2.0 specification is supported for 18Gbps bandwidth capacity in cable lengths up to 5m.
Anthra Line HDMI cables are available in lengths from 0.3m to 5m.
Features | |
---|---|
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
HDMI Ethernet channel | Yes |
Audio Return Channel (ARC) | Yes |
Product colour | Black, Grey |
Cable length | 2 m |
Connector 1 | HDMI Type A (Standard) |
Connector 2 | HDMI Type A (Standard) |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector contacts plating | Gold |
Cable material | Copper |
AWG wire size | 30 |
HDMI version | 2.0 |
Data transfer rate | 18 Gbit/s |
3D | Yes |
Maximum resolution | 4096 x 2160 pixels |
Supported graphics resolutions | 4096 x 2160 |
Supported video modes | 1080p |
Certification | RoHS, REACH, UL, ATC |
Quantity per pack | 1 pc(s) |
Cable jacket material | Polyvinyl chloride (PVC) |
Colour sampling | 4:4:4 |
Bending radius (min) | 4.8 cm |
Contact material | Phosphor copper |
Connector material | Gold |
Connector housing material | Polyvinyl chloride (PVC) |
Cable type | Round cable |
Shield material | Copper |
Nominal attenuation | 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB |
Operational conditions | |
Operating temperature (T-T) | -10 - 80 °C |
Storage temperature (T-T) | -10 - 80 °C |
Weight & dimensions | |
Package type | Polybag |
Cable diameter | 6 mm |
Connector 1 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
Connector 2 dimensions (WxDxH) | 20 x 34.2 x 10.9 mm |
Packaging content | |
Package type | Polybag |
Quantity per pack | 1 pc(s) |
Logistics data | |
Harmonized System (HS) code | 84733080 |
