Part No:RK12WALLOA
Stock:7 In Stock
EAN Code:0065030873918

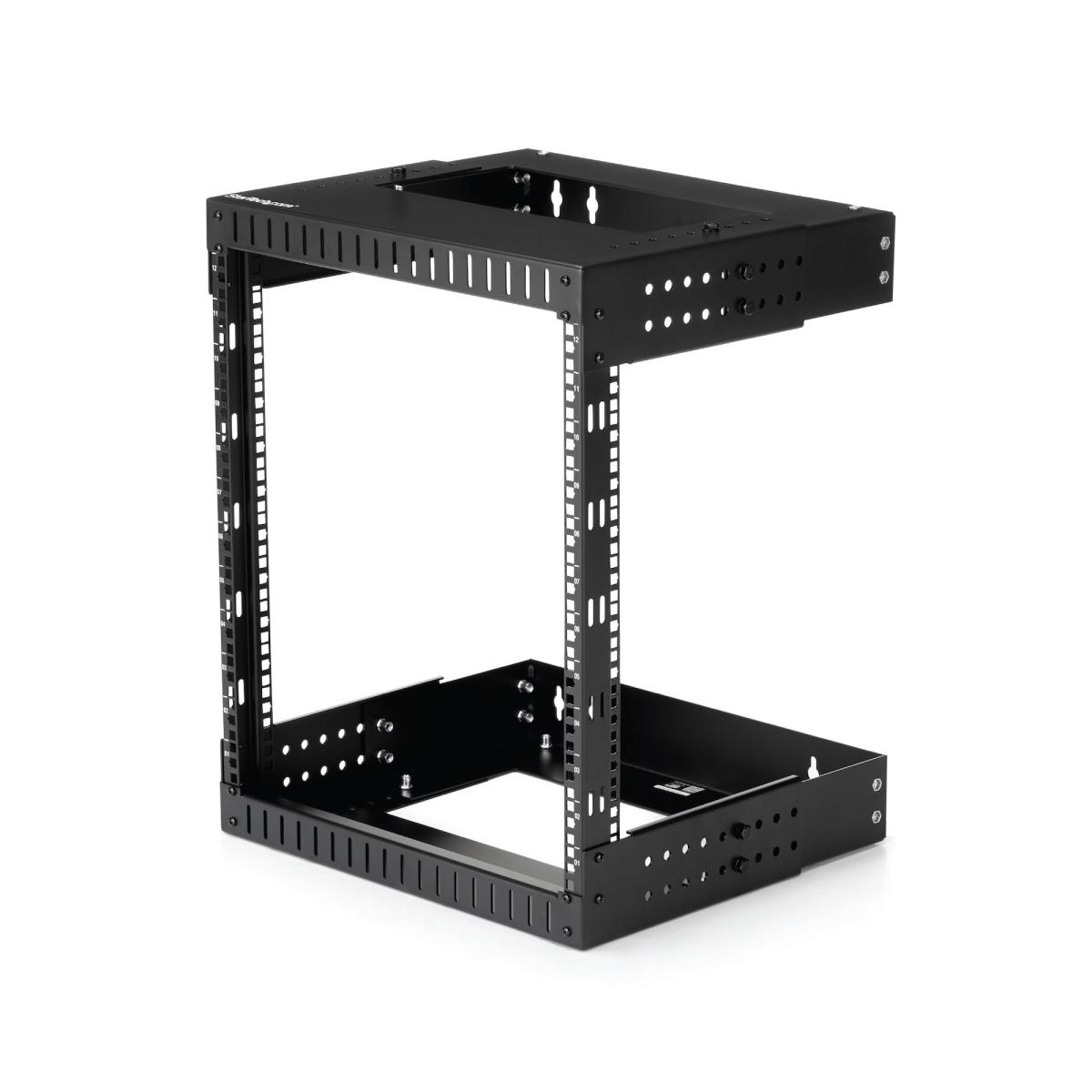

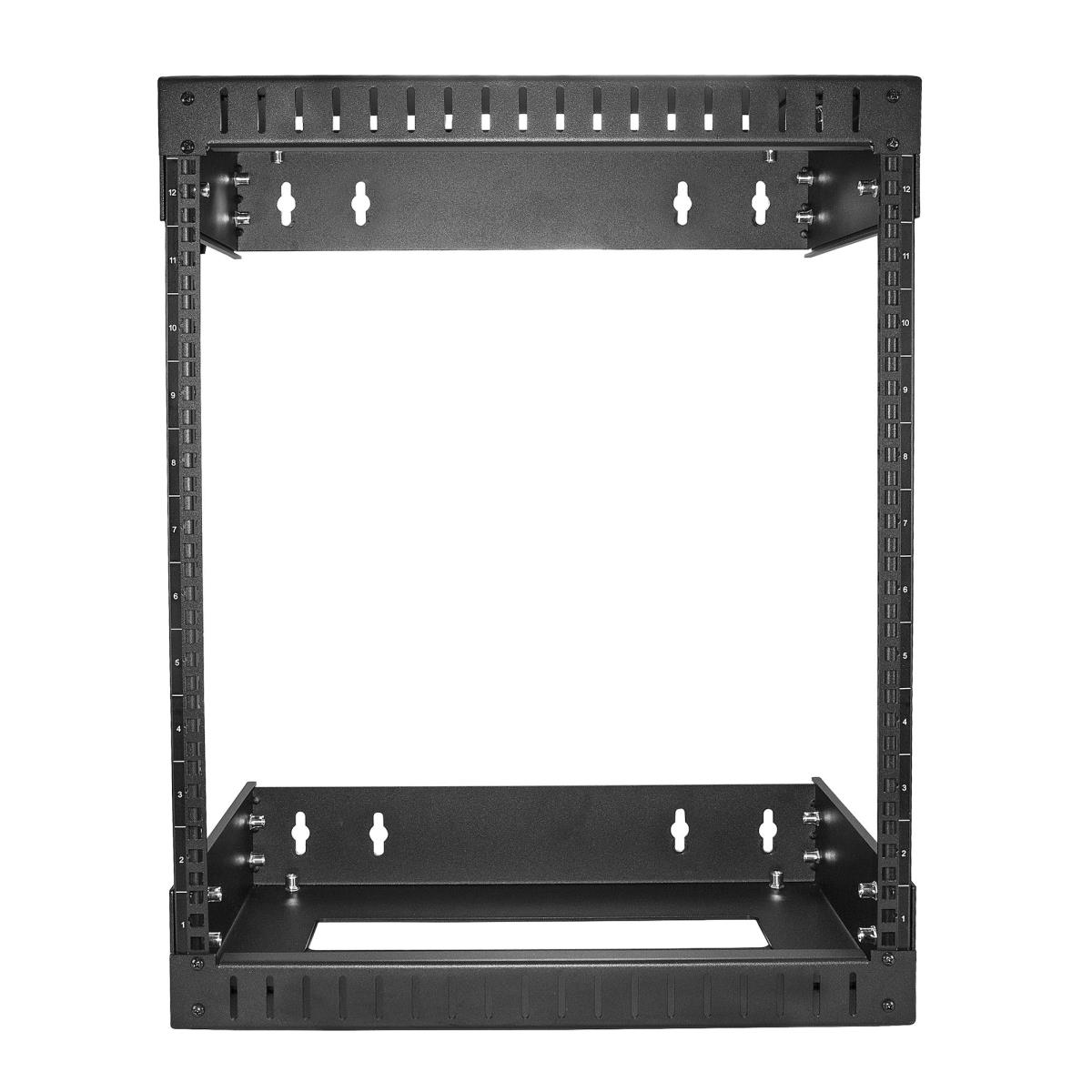

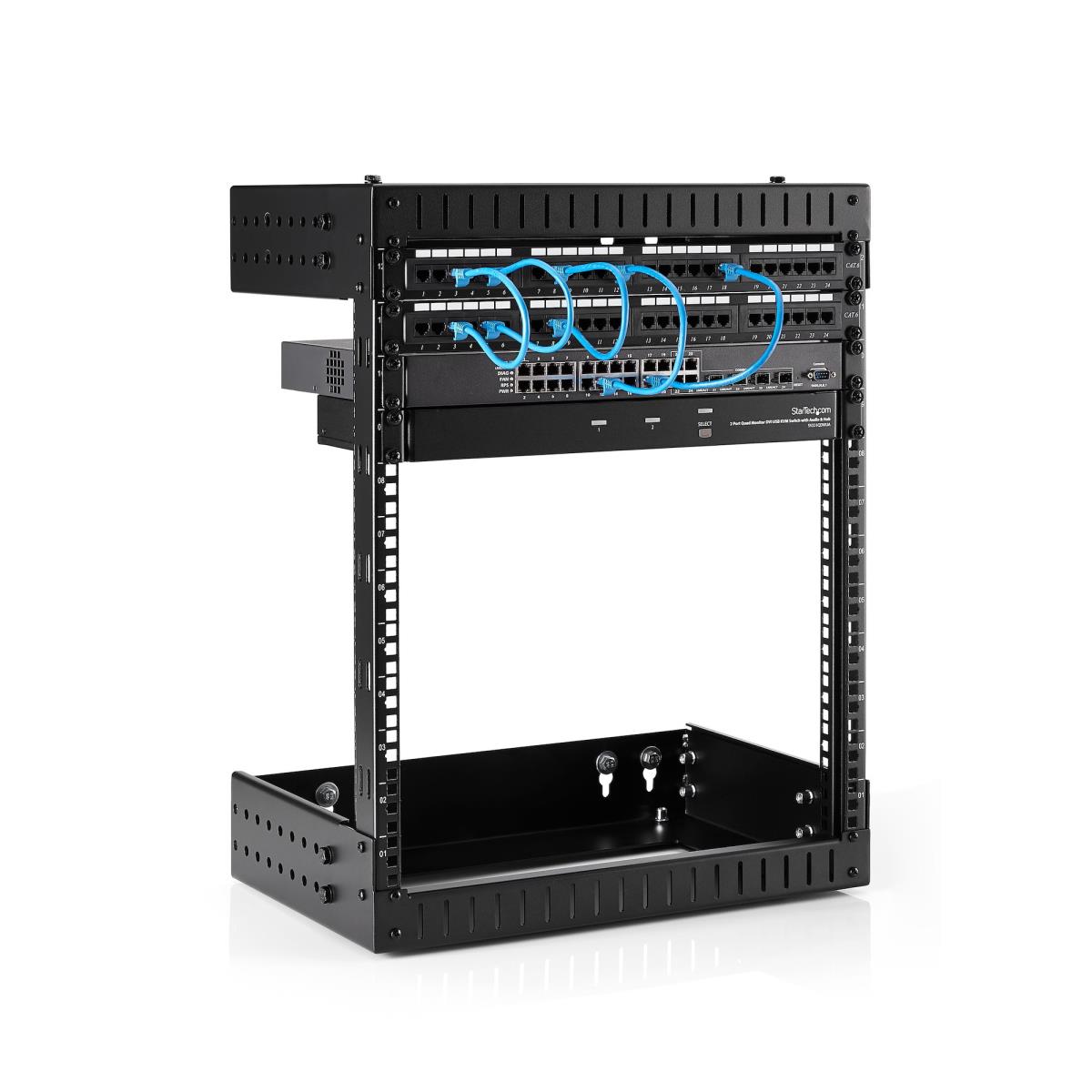

Mount your server or networking equipment to the wall, using this adjustable 12U open frame rackThis open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).Easy, hassle-free installationWith adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.Accommodate larger devicesThe open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.Free up spaceWhen space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.Keep your equipment cool and accessibleThe rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.The RK12WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Weight & dimensions | |
---|---|
Package depth | 670 mm |
Package width | 530 mm |
Package height | 130 mm |
Package weight | 17 kg |
Mounting depth (max) | 50.5 cm |
Width | 503 mm |
Depth | 510 mm |
Height | 640 mm |
Weight | 14.6 kg |
Maximum weight capacity | 90 kg |

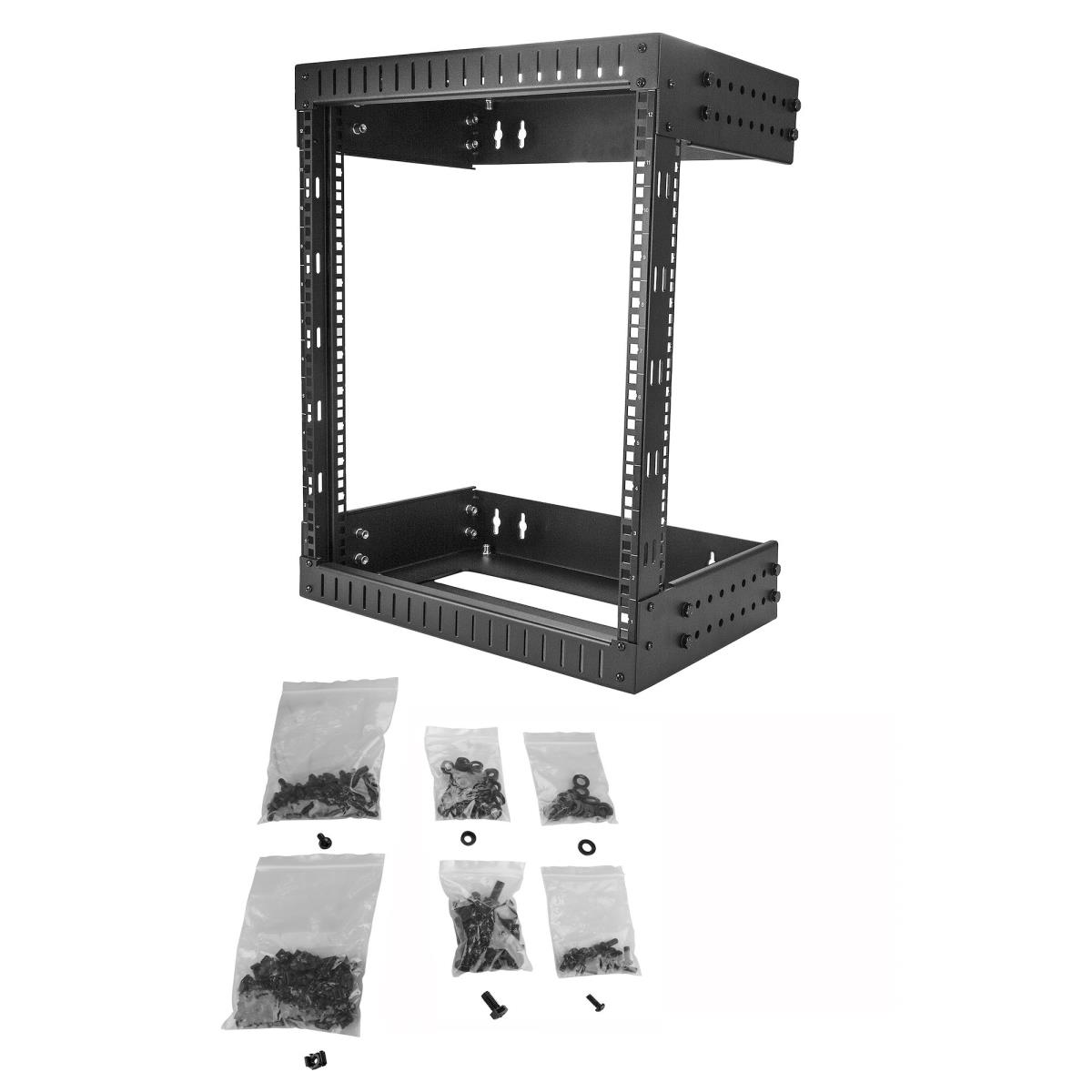

Packaging content | |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 48 |
Screws included | Yes |
Number of screws | 64 |
Number of bolts | 24 |
Number of washers included | 72 |
Features | |
Frame type | Open |
Product design | 2-post |
Rack capacity | 12U |
Adjustable mounting rails | Yes |
Cable management | No |

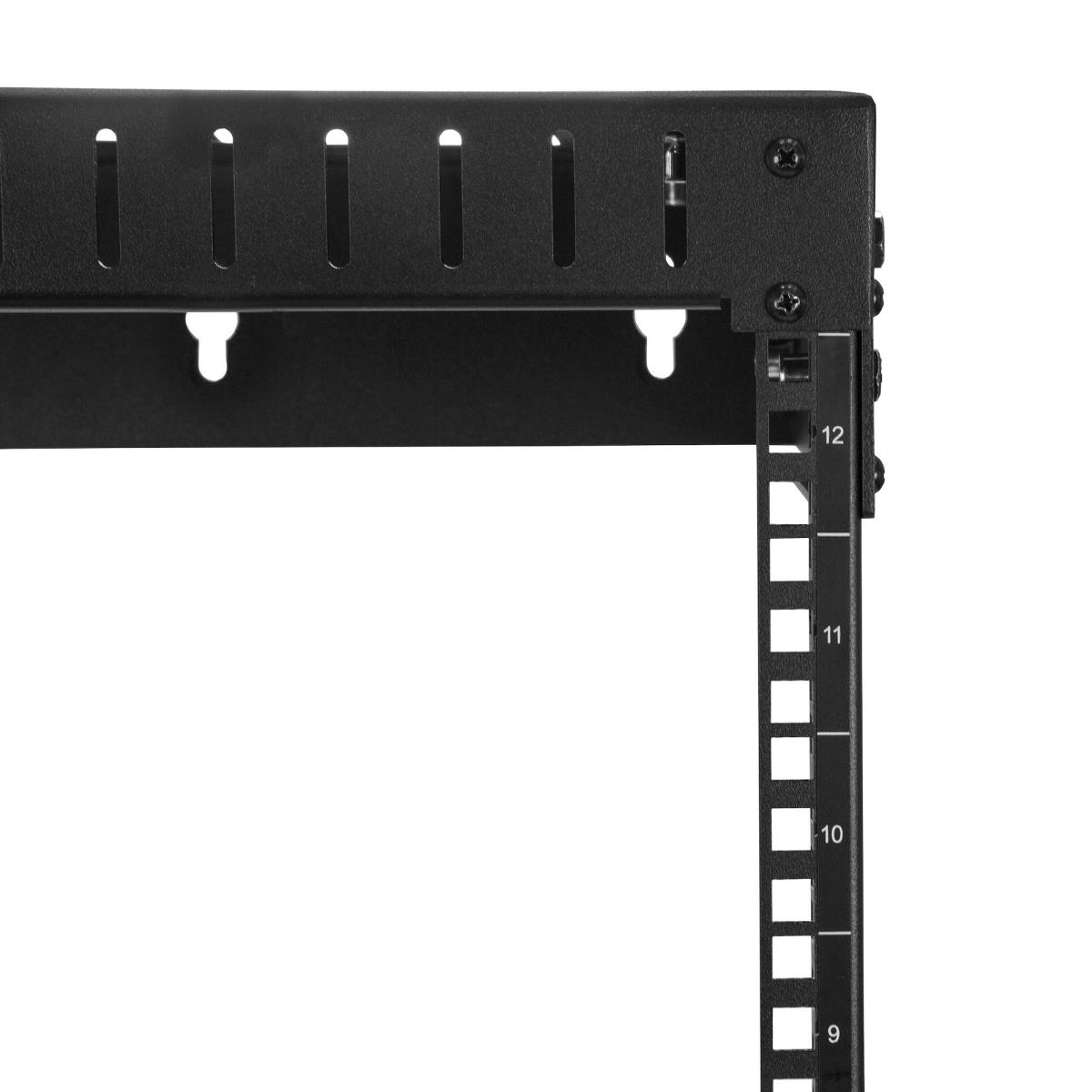

Mounting hole shape | Square |
Type | Wall mounted rack |
Maximum weight capacity | 90 kg |
Material | Steel |
Product colour | Black |
Certification | CE, REACH |
Packaging data | |
Manual | Yes |
Nuts included | Yes |
Number of nuts | 48 |
Package depth | 670 mm |
Package width | 530 mm |
Package height | 130 mm |
Package weight | 17 kg |
Screws included | Yes |
Number of screws | 64 |
Number of bolts | 24 |
Number of washers included | 72 |
Technical details | |
Package width | 530 mm |
Package height | 130 mm |
Type | Wall mounted rack |
Compliance industry standards | EIA/ECA-310-E |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 85381000 |
Rack capacity | 12U |
Colour | |
Product colour | Black |
Certificates | |
Certification | CE, REACH |
Material | |
Material | Steel |
Logistics data | |
Master (outer) case width | 630 mm |
Master (outer) case length | 670 mm |
Master (outer) case height | 130 mm |
Products per master (outer) case | 1 pc(s) |
Harmonized System (HS) code | 85381000 |
Other features | |
Compliance industry standards | EIA/ECA-310-E |
