Part No:SFPGLCSXMMST
Stock:6 In Stock
EAN Code:0065030849692

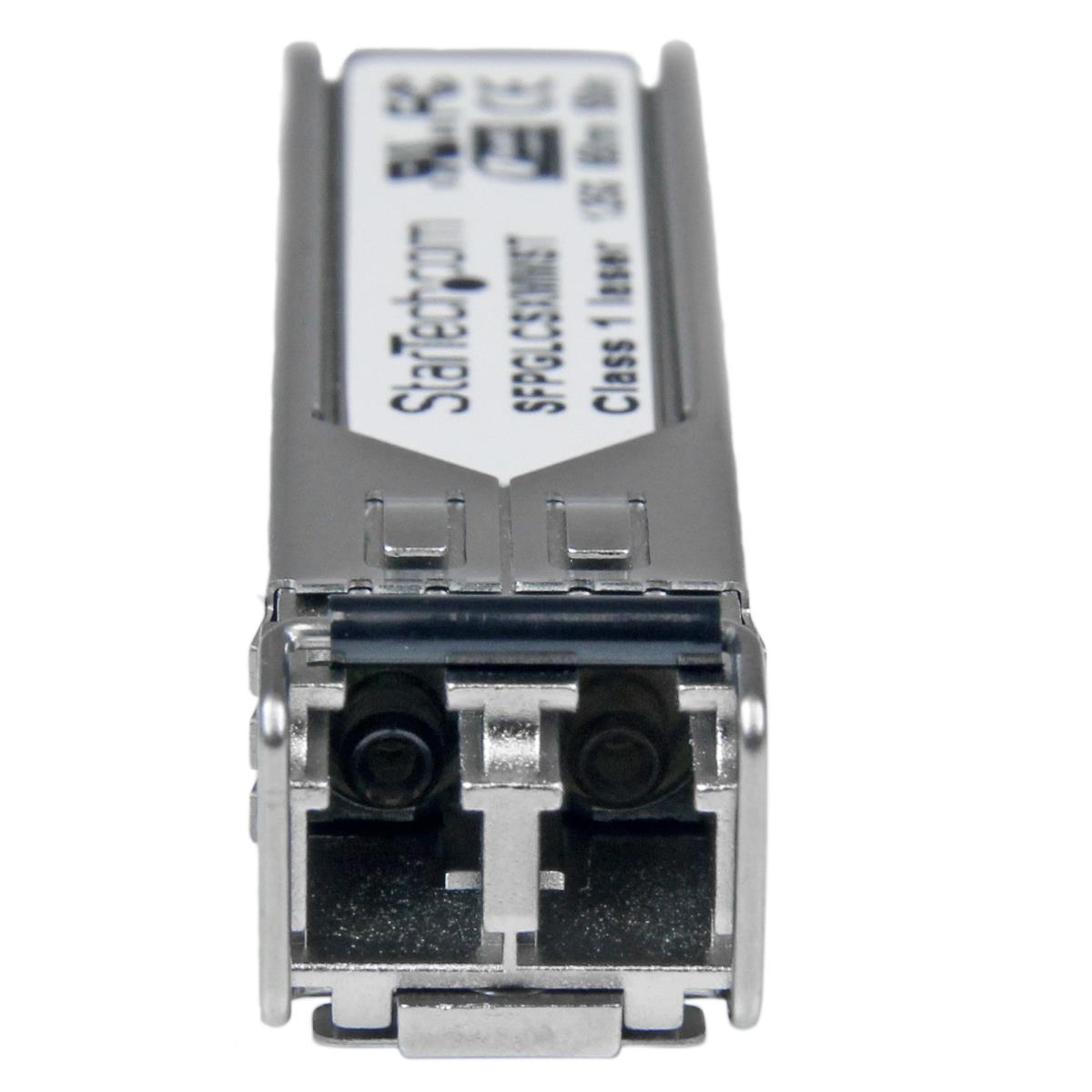

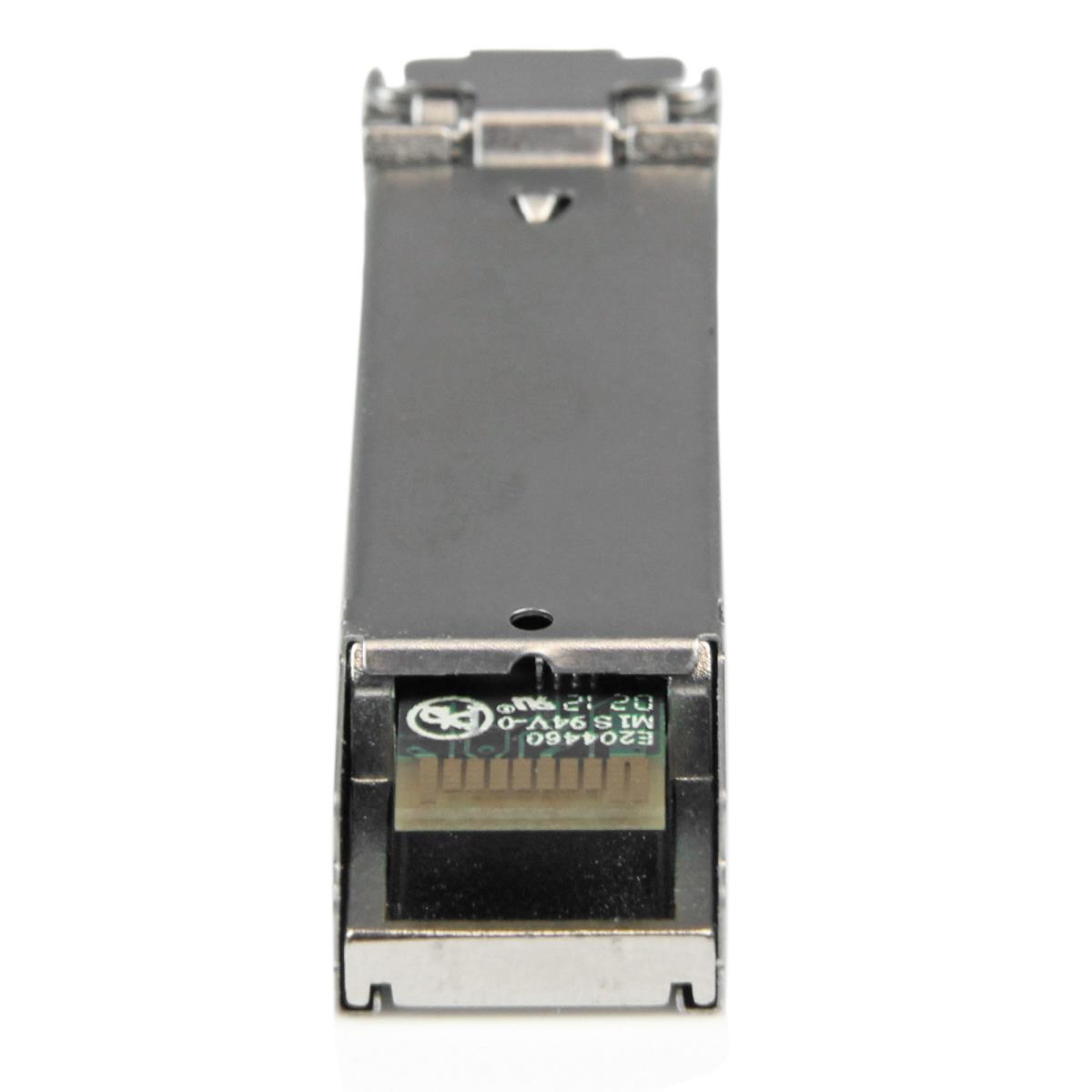

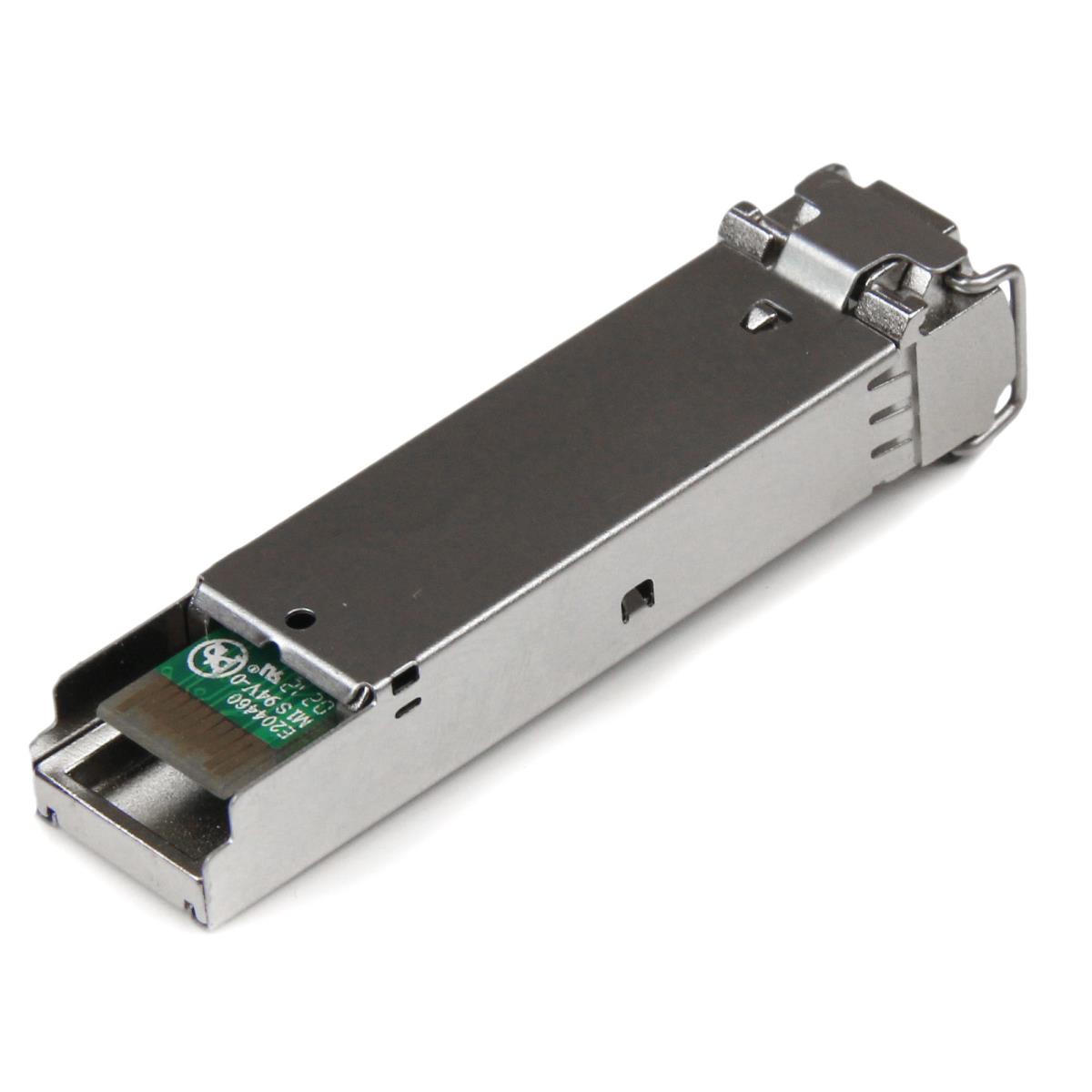

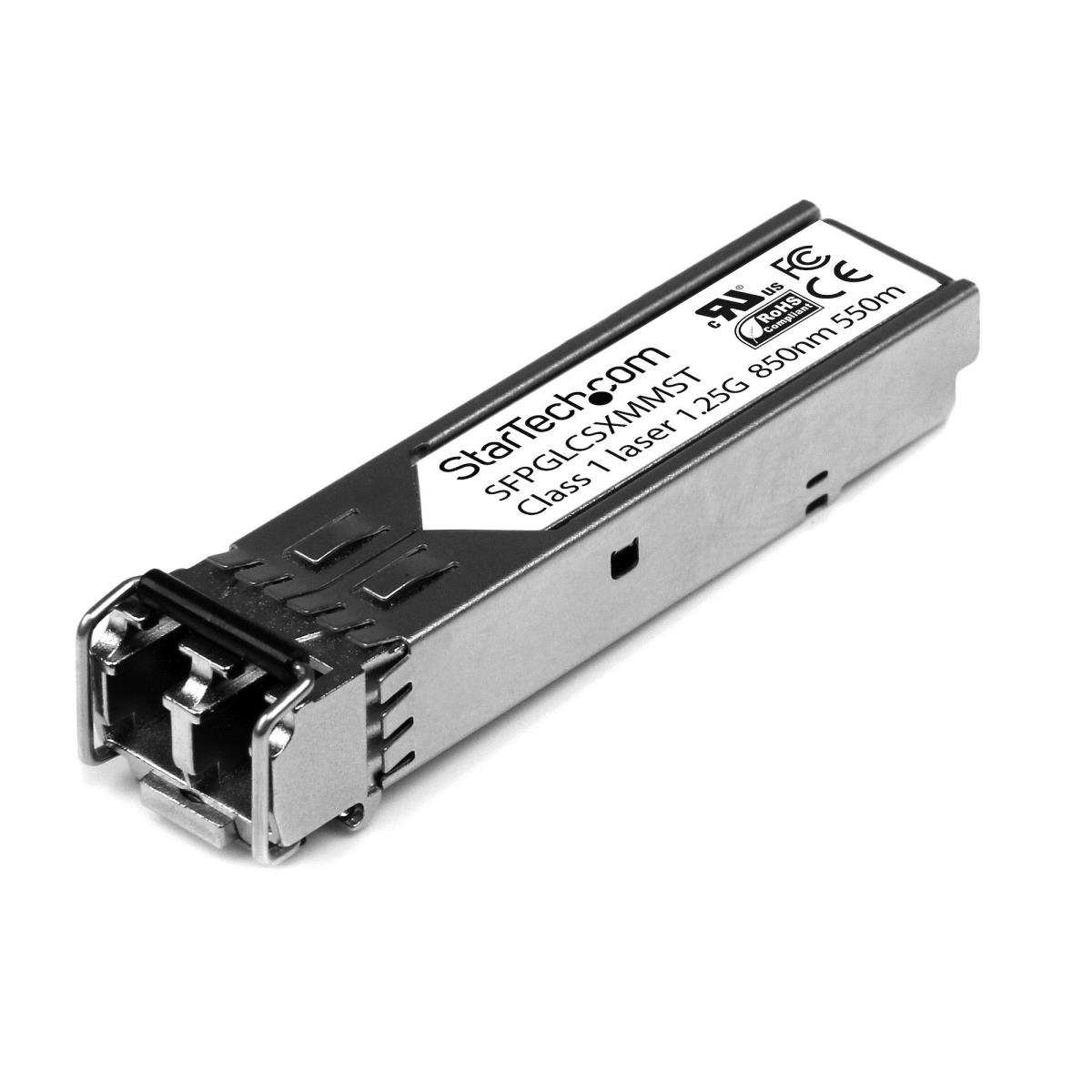

1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime WarrantyThe SFPGLCSXMMST is a Cisco GLC-SX-MM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).Technical Specifications:• Wavelength: 850 nm• Maximum Data Transfer Rate: 1.25 Gbps• Type: Multi Mode Fiber• Connection Type: LC Connector• Maximum Transfer Distance: 550 m (1804 ft)• MTBF: 3,381,761 hours• Power Consumption: Less than 1 Watt• Digital Diagnostics Monitoring (DDM): NoThis SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Network | |
---|---|
SFP transceiver type | Fiber optic |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Maximum data transfer rate | 1250 Mbit/s |
Interface type | SFP |
Technical details | |
Package width | 95 mm |
Package height | 32 mm |
Hot-swap | Yes |
Maximum transfer distance | 550 m |
Wavelength | 850 nm |
Duplex system | Full, Half |
Compatible products | GLC-SX-MM |
Sustainability certificates | RoHS |
Performance | |
Product colour | Silver |
Hot-swap | Yes |
Compatible products | GLC-SX-MM |
Mean time between failures (MTBF) | 3381761 h |
Brand compatibility | Cisco |
SFP transceiver type | Fiber optic |
Wavelength-division multiplexing (WDM) | No |
Digital Diagnostics Monitoring (DDM) | No |
Fiber optic connector | LC |
Networking standards | IEEE 802.3z |
Maximum transfer distance | 550 m |
Wavelength | 850 nm |
Duplex system | Full, Half |
Maximum data transfer rate | 1250 Mbit/s |
Interface type | SFP |
Multi-mode fiber (MMF) supported | Yes |
SFP transceiver standard | SX |
Harmonized System (HS) code | 85369010 |
Features | |
Product colour | Silver |
Hot-swap | Yes |
Certification | CE, FCC, UL, REACH |
Compatible products | GLC-SX-MM |
Mean time between failures (MTBF) | 3381761 h |
Brand compatibility | Cisco |
Power | |
Power consumption (typical) | 1 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating relative humidity (H-H) | 30 - 70% |
Weight & dimensions | |
Width | 12 mm |
Depth | 60 mm |
Height | 10 mm |
Weight | 16 g |
Package depth | 118 mm |
Package width | 95 mm |
Package height | 32 mm |
Package weight | 95 g |
Packaging data | |
Package depth | 118 mm |
Number of products included | 1 pc(s) |
Package width | 95 mm |
Package height | 32 mm |
Package weight | 95 g |
Certificates | |
Certification | CE, FCC, UL, REACH |
Packaging content | |
Number of products included | 1 pc(s) |
Logistics data | |
Master (outer) case width | 260 mm |
Master (outer) case length | 305 mm |
Master (outer) case height | 205 mm |
Products per master (outer) case | 36 pc(s) |
Harmonized System (HS) code | 85369010 |
