*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:168434
Stock:2 In Stock
EAN Code:0766623168434

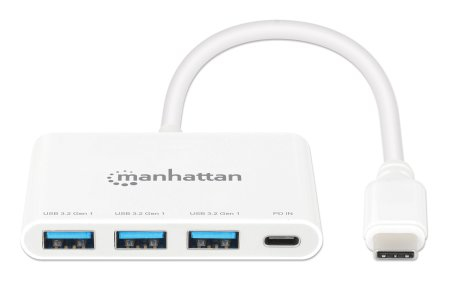

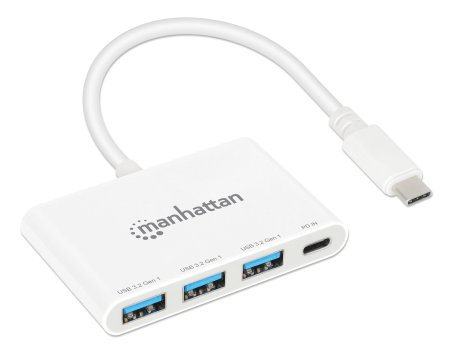

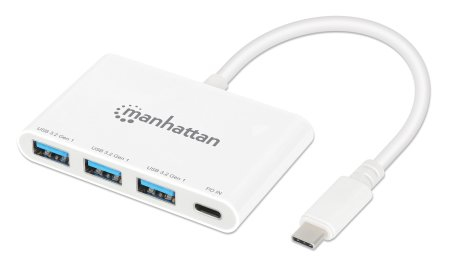

USB Hub with Type-C plug and Three Type-A ports plus 100 W Power Delivery Passthrough Charging
The Manhattan 3-Port USB 3.2 Gen 1 Type-C Hub with Power Delivery turns one of your device's USB-C ports into three USB-A ports, so you can easily connect a keyboard, mouse and flash drive. Peripherals that fit the USB 3.2 Gen 1 spec (formerly known as USB 3.0) can reach transfer speeds up to 5 Gbps for external storage, printing and more. The Hub's SuperSpeed ports are backward compatible to run older USB versions 2.0 or even 1.1, too.

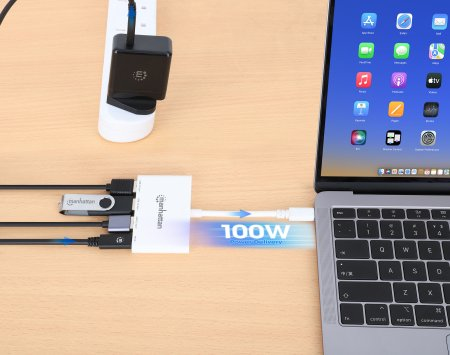

Charge your laptop with USB-C Power Delivery (PD)
You can now save your laptop's bulky AC power adapter or keep it for use strictly at home. The included USB-C PD port lets you charge your notebook with power up to 100 W through a much smaller PD wall charger (available from Manhattan) that is easier to carry with you in a laptop bag. With the PD connection established, you can also charge mobile devices from all three USB-A ports simultaneously with power up to 5 V / 0.9 A (4.5 W).
Connectivity you can take with you
Because of its compact size, this hub is easy to tuck into your notebook bag and only takes up little desk space when you connect it to your workstation. For portable applications, having the built-in cable means one less thing to remember to carry with you.
Universal compatibility for easy installation
This universal USB 3.0 Hub will work with a wide range of computers because it requires no additional software or drivers. It installs automatically when you connect it to your laptop or desktop, so you can be up and running quickly. It also works with a range of operating systems such as Windows®, macOS®, Linux® and Chrome OS, so it’s multi-platform compatible.
Ports & interfaces | |
---|---|
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Card reader integrated | No |
Ports quantity | 4 |
Cable length | 0.15 m |
Features | |
Plug and Play | Yes |
Overload protection | Yes |
Product colour | White |
Certification | CE FCC RoHS REACH UKCA |
Cable length | 0.15 m |
Data transfer rate | 5000 Mbit/s |
Overcurrent protection | Yes |
USB Power Delivery | Yes |
Housing material | Acrylonitrile butadiene styrene (ABS) |
USB Power Delivery up to | 100 W |
AWG wire size | 32 |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
Data transmission | |
Data transfer rate | 5000 Mbit/s |
Power | |
Output voltage | 5/9/12/15/19/20 V |
Output current | 5 A |
Technical details | |
Plug and Play | Yes |
Product colour | White |
Overload protection | Yes |
Overcurrent protection | Yes |
Performance | |
Certification | CE FCC RoHS REACH UKCA |
Card reader integrated | No |
Plug and Play | Yes |
Overload protection | Yes |
Data transfer rate | 5000 Mbit/s |
Overcurrent protection | Yes |
USB Power Delivery | Yes |
System requirements | |
Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Other operating systems supported | ChromeOS |
Storage | |
Card reader integrated | No |
Weight & dimensions | |
Weight | 40 g |
Width | 38 mm |
Depth | 76 mm |
Height | 10 mm |
Package width | 47 mm |
Package depth | 75 mm |
Package height | 11.5 mm |
Package weight | 70 g |
Packaging data | |
Package type | Hanging box |
Package width | 47 mm |
Package depth | 75 mm |
Package height | 11.5 mm |
Package weight | 70 g |
Quantity per pack | 1 pc(s) |
Packaging content | |
Manual | Yes |
Package type | Hanging box |
Design | |
Product colour | White |
Certification | CE FCC RoHS REACH UKCA |
Cable length | 0.15 m |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -10 - 90 °C |
Operating relative humidity (H-H) | 10 - 90% |
Certificates | |
Certification | CE FCC RoHS REACH UKCA |
Other features | |
Overload protection | Yes |
