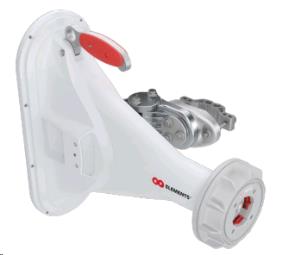

RF ELEMENTS HG3-TP-A90 RF ELEMENTS RF Elements HG3-TP-A90 network antenna Horn antenna TwistPort 16 dBi

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

HG3-TP-A90 RF ELEMENTS RF Elements HG3-TP-A90 network antenna Horn antenna TwistPort 16 dBi

Part No:HG3-TP-A90

EAN Code:

price matchPrice Match
Guarantee
DeliveryExpeditious Delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

RF Elements HG3-TP-A90 network antenna Horn antenna TwistPort 16 dBi

Introduction

90° Asymmetrical Horn TP Antenna combines the best of both worlds - high gain of a traditional sector antenna and zero side lobes of a horn. Its radiation pattern is wide in azimuthal and narrow in elevation plane, greatly improving coverage planning options.
90° Asymmetrical Horn TP Antenna exceeds the traditional patch sector antenna thanks to high stability of gain and radiation pattern in the whole band of operation. Outstanding noise rejection and precision of radiation pattern favors 90° Asymmetrical Horn TP antenna for high-density AP clusters, in highly populated areas and dense co-location sites.
HG3-TP-A90 features our revolutionary TwistPortT connector, a patent-pending twistand-lock waveguide port. TwistPortT is virtually lossless and embodies a complete shift of paradigm in wireless network scalability and convenience of deployment. 90° Asymmetrical Horn TP Antenna supports a wide range of third party mainstream radios with our TPA TwistPortT Adaptor.

Specifications

  • Antenna Connection : TwistPort™ - Quick Locking Waveguide Port
    Antenna Type : Horn
  • Materials : UV Resistant ABS Plastic, Polycarbonate,HDPE, Aluminium, Stainless Steel
  • Environmental: IP55
  • Pole Mounting Diameter : 36-80 mm (we recommend as close to 80mm as possible)
  • Temperature : -35°C to +55°C (-31°F to +131°F)
  • Wind Survival : 160 km/hour
  • Wind Loading : 76 N at 160km/h
  • Mechanical Adjustment : ± 25° Elevation, ± 20° Azimuth
  • Weight : 5.3 Kg / 11.6 lbs – single unit 7.2 Kg / 15.9 lbs – single unit incl. package
