ATEN CE920-ATA-G ATEN ATEN CE920-ATA-G KVM extender Transmitter & receiver

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

CE920-ATA-G ATEN ATEN CE920-ATA-G KVM extender Transmitter & receiver

Part No:CE920-ATA-G

EAN Code:

price matchPrice Match
Guarantee
DeliveryExpeditious Delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

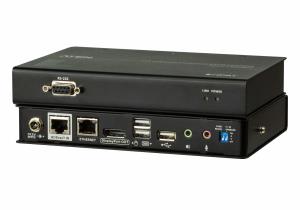

ATEN CE920-ATA-G KVM extender Transmitter & receiver

Introduction

The ATEN CE920 USB DisplayPort HDBaseTT 2.0 KVM Extender integrates the latest HDBaseTT 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseTT 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations. 1x CE920L USB DisplayPort HDBaseT 2.0 KVM Extender (Local Unit) 1x CE920R USB DisplayPort HDBaseT 2.0 KVM Extender (Remote Unit) 1x LIN5-0205-21DG Microphone Cable 1x LIN5-0205-21CG Speaker Cable 1x LIN6-04U1-V1BG USB Type-A to Type-B Cable 1x LIN5-20K1-K13G DisplayPort Cable 2x Mounting Kits 2x 0AD8-1F05-30M1 Power Adapters 1x User Instructions

Specifications


TypeTransmitter & receiver
Connectivity technologyWired
Maximum transfer distance150 m
Cable types supportedCat5e,Cat6,Cat6a
Rack mountingYes
Maximum digital resolution4096 x 2160 pixels
Product colourBlack
MaterialMetal
USB 2.0 ports quantity4
USB data transfer rates480 Mbit/s
LED indicatorsYes
CertificationRoHS
Transmitter video port typeDisplayPort
Transmitter local keyboard/mouse port typeUSB
RJ-45 ports quantity (transmitter)1
Receiver local video port typeDisplayPort
Receiver local keyboard/mouse port typeUSB
RJ-45 ports quantity (receiver)1
AC adapter output voltage5 V
Power consumption (transmitter) (max)3.99 W
Power consumption (receiver) (max)6.74 W
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Transmitter width18.2 cm
Transmitter depth12.2 cm
Transmitter height2.87 cm
Transmitter weight630 g
Receiver width18.2 cm
Receiver depth12.2 cm
Receiver height2.87 cm
Receiver weight640 g
Package width98 mm
Package depth325 mm
Package height210 mm
Package weight2.18 kg
Weight1.95 kg
AC adapter includedYes
Cables includedDisplayPort
ManualYes
Mounting bracket(s) includedYes
PC Audio inYes
PC Audio outYes
Master (outer) case net weight9.75 kg
Master (outer) case width342 mm
Master (outer) case length512 mm
Master (outer) case height232 mm
Master (outer) case gross weight11.7 kg
Products per master (outer) case5 pc(s)
