DRAYTEK V3910-K DRAYTEK VIGOR 3910 MULTI-WAN IG ROUTER (V3910-K)

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

V3910-K DRAYTEK VIGOR 3910 MULTI-WAN IG ROUTER (V3910-K)

Part No:V3910-K

EAN Code:

price matchPrice Match
Guarantee
DeliveryExpeditious Delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

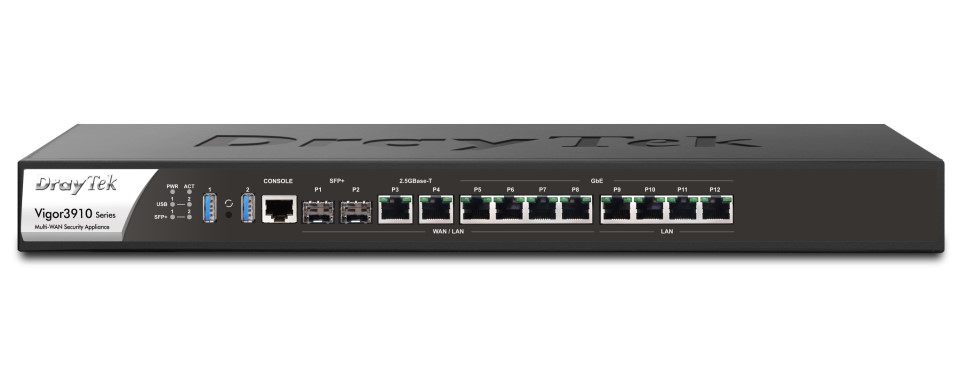

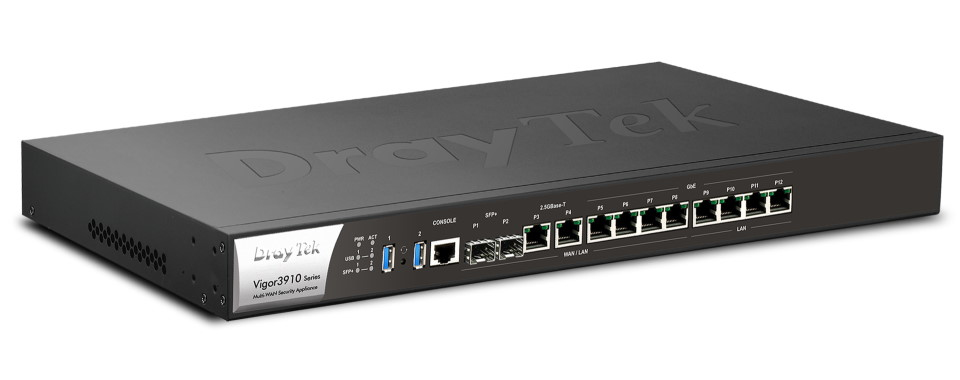

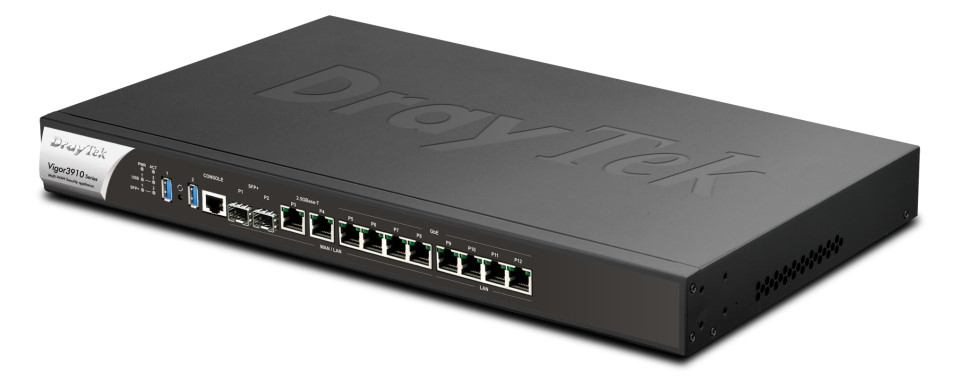

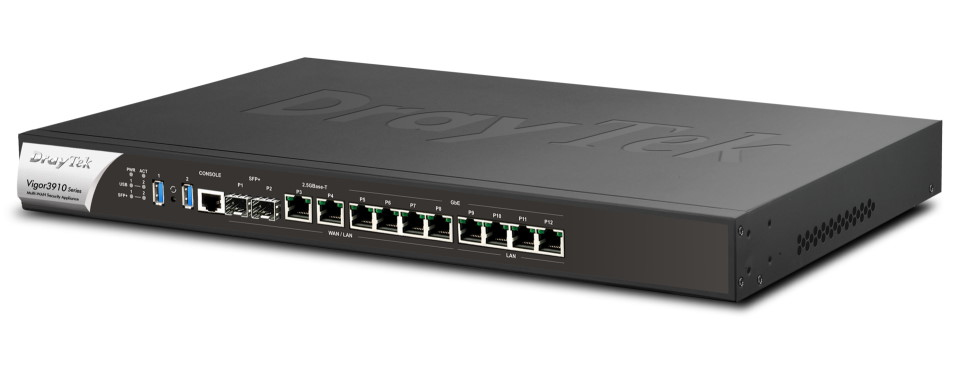

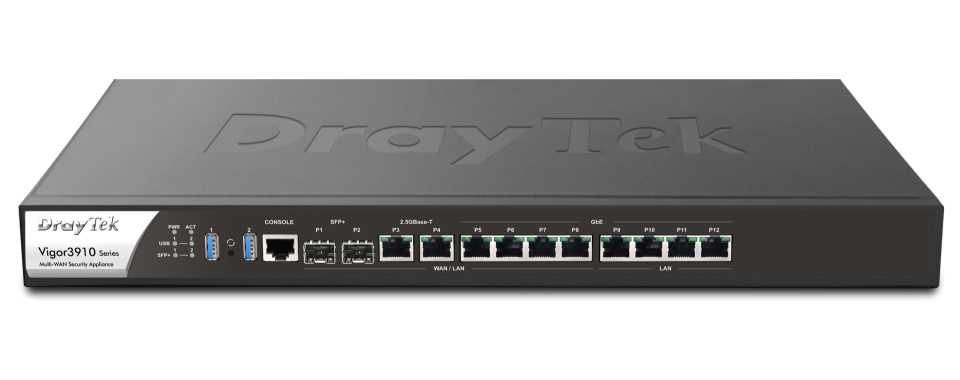

VIGOR 3910 MULTI-WAN IG ROUTER (V3910-K)

Introduction

The DrayTek Vigor 3910 Multi-WAN VPN Broadband Router is designed for high performance and is capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load Balancing and Failover. Featuring twelve (12) LAN and WAN interfaces in total, four (4) dedicated LAN ports and eight (8) switchable ports that can operate as LAN or WAN ports to fit your network requirements. With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.
Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek's traditional ease of use and comprehensive feature set. For multi-tenant or departmental flexibility, the Vigor 3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.

Key Features

  • Powerful 10GbE-Capable Internet Gateway : Featuring Firewall throughput up to 9Gb/s, the Vigor 3910 can handle the most demanding networks.
  • High-Performance VPN Concentrator : Capable of handling up to 500 active VPN tunnels, with 3Gb/s of encrypted tunnel bandwidth.
  • Flexible WAN Architecture : Load Balance up to eight (8) internet connections to ensure reliable connectivity and high speeds.
  • Flexible WAN & LAN Ports : Eight (8) of the Vigor 3910's twelve (12) physical ports can be switched between LAN or WAN modes.
  • High Availability : Connect a pair of Vigor 3910 routers to provide a hardware backup solution (additional Vigor 3910 sold separately).
  • Manage Multiple Networks : Create up to 50 separate networks, with 802.1Q VLAN tag support and port-based VLAN.
  • Robust & Comprehensive Firewall : Control traffic into and out of your network with DrayTek's object-based IP & IPv6 filtering.

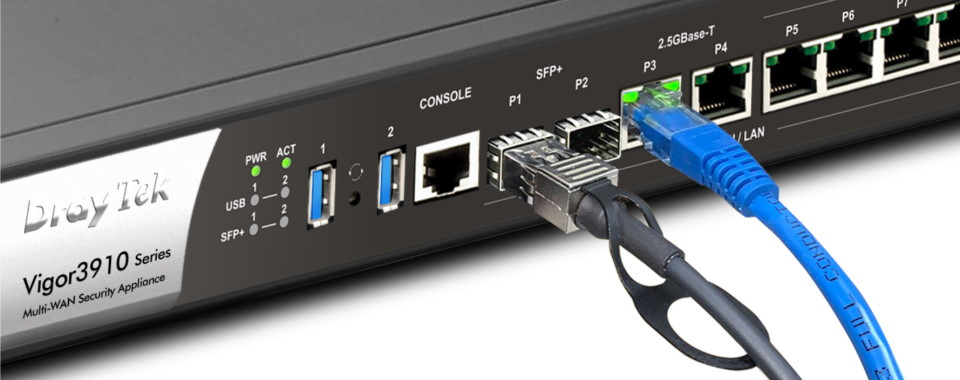

  • 10GbE SFP+ & 2.5GbE Ports : Provide fast, high bandwidth uplinks to Fibre, Switches, Severs & Network Attached Storage.
  • Web Content Filtering with DNS Filter : Control access to apps such as WhatsApp and YouTube. Block websites with category-based Content Filtering (see accessories tab for licence).
  • DrayTek SSL VPN : Access the Vigor 3910's networks remotely at up to 1Gb/s with TLS encrypted VPN tunnels.
  • Central Management with VigorACS : Easily provision, monitor and manage remote sites without on-site IT or dedicated staff
  • DrayDDNS - Dynamic DNS : Use the free DrayDDNS dynamic DNS service to easily locate & connect to your router and its services remotely.
  • Quality of Service : Prioritise latency-sensitive applications on your network with Quality of Service (802.1p and DSCP) support.
  • Central AP Management : Easily manage and provision DrayTek VigorAP access points and VigorSwitch switches (sold separately, see accessories tab).

Specifications

Interfaces

  • WAN/LAN Switchable Port:b2 x 10G/1G SFP+ Fibre Slot
    • 2 x 2.5G/1G/100M/10M Ethernet, RJ45
    • 4 x 1G/100M/10M Ethernet, RJ45 (support switchable since v3.9.2)
  • Fixed LAN Port:
    • 4 x 1G/100M/10M Ethernet, RJ45
    • 2 x USB 3.0 Port
    • 1 x RJ45 Console Port
    • 1 x Factory Reset Button

Performance

  • 9 Gb/s NAT Throughput
  • 3 Gb/s VPN Performance
  • 150,000 NAT Sessions
  • Max. 500 Concurrent VPN Tunnels
  • Max. 200 Concurrent SSL VPN

Internet Connection

  • IPv4:PPPoE, DHCP, Static IP
  • IPv6:PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
    802.1p/q Multi-VLAN Tagging
  • Multi-VLAN/PVC
  • IP-based, Session-based Load Balancing
  • WAN Active on Demand:Link Failure, Traffic Threshold
  • PPP, Ping Connection Detection
  • Dynamic DNS
  • DrayDDNS

LAN Management

  • 802.1q Tag-based, Port-based VLAN
  • Max. 50 VLAN
  • DHCP Server:Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
  • LAN IP Alias
  • Up to 1022 IP Counts per LAN Subnet
  • PPPoE Server
  • Port Mirroring (since v3.9.2)
  • Local DNS Server
  • Conditional DNS Forwarding
  • Hotspot Web Portal
  • Hotspot Authentication:Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server

Networking

  • IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2/ng, OSPFv2, BGP
  • Policy-based Routing
  • Protocol, IP Address, Port, Domain, Country
  • Active-Standby / Hot-Standby High Availability
  • DNS Security (DNSSEC)
  • Multicast:IGMP Proxy, Bonjour
  • Local RADIUS server
  • SMB File Sharing (Requires external storage)

Physical

  • Dimensions: 443 x 285 x 45 mm
  • Weight:3.23 kg
  • Power:AC 100~240V, 50/60Hz
  • Max. Power Consumption:35 watts
  • Operating Temperature:0ºC to 45ºC
  • Storage Temperature:-10ºC to 55ºC
  • Operating Humidity (non-condensing):10 to 90%
