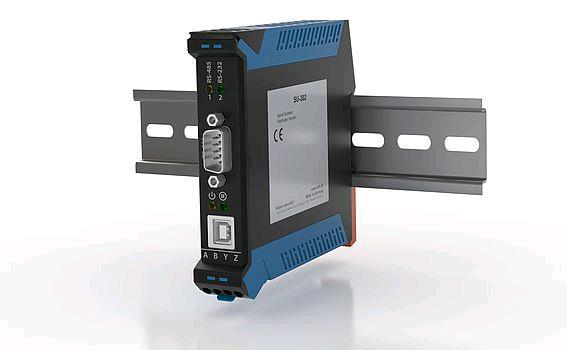

Serial To USB Converter Su-302

Introduction

The SU-302 serial to USB converter embeds almost every serial devices via USB into the most diverse industrial environments.
The SU-302 is mounted on a top-hat rail in a control cabinet. Then the serial devices must be connected and the USB connection to a PC or industrial PC established. The USB connection plays a double role in this, it transfers data and supplies power. All that is then left to do, is to install the driver for the SU-302 on the client and to set up the serial devices on it.
If you combine the SU-302 with a USB Deviceserver INU-100, you can even use the serial devices via TCP/IP network. For the USB Deviceserver INU-100 embeds USB devices such as the SU-302 into Ethernet networks. The serial devices can then be used flexibly and independent of location in modern environments!

At a glance

• Serial to USB data converter for industrial environments (RS-232 and RS-485/EIA-485; compatible with RS-422/EIS-422)
• Installation in control cabinets via top-hat rail housing for rails according to DIN EN 60715 (35 mm wide)
• Power supply via USB
• Immune to interference and robust

Applications

• Connection of various serial devices:
  • industrial automation: connection of sensors, gauges, valves, meters, actuators etc.
  • industrial manufacturing: connection of industrial robots, pumps, analyzers etc.
  • process control connection of peripheral devices
    And many more!
• Cost-saving modernization: embedding of existing serial devices into new digital structures via USB (or TCP/IP with USB Deviceserver INU-100)
• Simple plant changes: connection of existing, fixed-installation serial devices such as modems or telephone systems to changes structures.
• Combination of serial devices and new, up-to-date USB devices (or TCP/IP with USB Deviceserver INU-100)

Specifications

• 1 × USB 2.0 Hi-Speed Port (USB uplink and power supply)
• 1 × RS-232 serial interface (connector: D-Sub, DE-9; Signals: TXD, RXD, RTS, CTS, DTR, DTS, DCD, RI)
• 1 × RS-485/EIA-485 (compatible with RS-422/EIS-422) serial interface (screw terminals A B Y Z; full or half duplex mode)
• For Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2008 R2,
Windows Server 2012 R2, Windows Server 2016 and Linux
