Part No:MDP2DVI3
Stock:39 In Stock
EAN Code:0065030848695

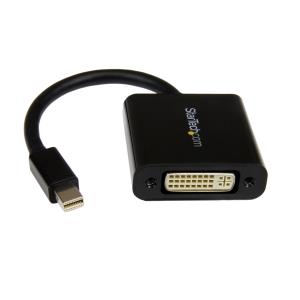

Connect a DVI Display to a Mini DisplayPort Video Source
The MDP2DVI3 Mini DisplayPort® to DVI Adapter lets you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor, projector, or display, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports display or projector resolutions up to 1920x1200 (WUXGA) and is compliant with HDCP standards.
MDP2DVI3 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI® signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Features | |
---|---|
Converter type | Passive video converter |
DisplayPort version | 1.2 |
Product colour | Black |
Cable length | 0.13 m |
Connector 1 | Mini DisplayPort |
Connector 2 | DVI-I |
Connector 1 gender | Male |
Connector 2 gender | Female |
Maximum resolution | 1920 x 1200 pixels |
Supported video modes | 1080p |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Operational conditions | |
Operating temperature (T-T) | 0 - 60 °C |
Storage temperature (T-T) | 0 - 70 °C |
Operating relative humidity (H-H) | 40 - 85% |
Other features | |
Width | 40 mm |
Height | 15 mm |
Depth | 185 mm |
Weight & dimensions | |
Width | 40 mm |
Height | 15 mm |
Depth | 185 mm |
Weight | 26.5 g |
Package width | 160 mm |
Package depth | 240 mm |
Package height | 20 mm |
Package weight | 51 g |
Packaging data | |
Package width | 160 mm |
Package depth | 240 mm |
Package height | 20 mm |
Package weight | 51 g |
Quantity per pack | 1 pc(s) |
Technical details | |
Harmonized System (HS) code | 84733080 |
Compliance certificates | RoHS, CE |
Packaging content | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Master (outer) case width | 270 mm |
Master (outer) case length | 455 mm |
Master (outer) case height | 355 mm |
Products per master (outer) case | 200 pc(s) |
Harmonized System (HS) code | 84733080 |
