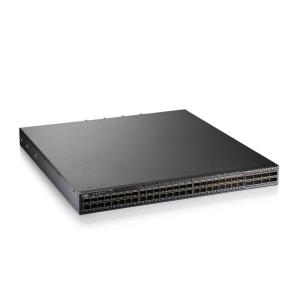

ZYXEL CX4800-56F-EU0101F ZYXEL CX4800-56F EU 10G L3 Aggregation Fiber Switch with 8 100G Uplink 2 AC - Switch - Fiber Optic

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

CX4800-56F-EU0101F ZYXEL CX4800-56F EU 10G L3 Aggregation Fiber Switch with 8 100G Uplink 2 AC - Switch - Fiber Optic

Part No:CX4800-56F-EU0101F

Stock:2 In Stock

EAN Code:4718937637034

£6,182.00 Excl. VAT

£7,418.40 Incl. VAT

price matchPrice Match
Guarantee
Delivery5-7 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

CX4800-56F EU 10G L3 Aggregation Fiber Switch with 8 100G Uplink 2 AC - Switch - Fiber Optic

Introduction

Future Proof Aggregation & Core Switch

The CX4800-56F supports a full suite of Layer 2 features, including VLAN, ACL, port aggregation, and 802.1X, to enhance security by preventing unauthorized access to cloud resources and AI workloads, optimize bandwidth for high-speed GPU data transfers, and enable dynamic, isolated workload environments in large-scale AI and cloud deployments.

Nebula, The Intelligent Cloud Management

Nebula offers comprehensive monitoring and reporting capabilities, including real-time notifications for critical events via email or the mobile app. With Nebula, you can enjoy a streamlined experience for network installation and management without the need for additional costs for software or hardware controllers.

Dedicated Networked AV Mode

The CX4800-56F features a custom-designed networked AV mode for standalone operation. It supports 10G Ethernet with pixel-perfect 4K60 video streaming in real-time, making it ideal for applications ranging from live events to XR and medical imaging. Leveraging AI intelligence, the switch simplifies the setup process by automatically configuring all necessary parameters, enabling a professional AVoIP deployment within minutes.

Specifications

Management features
ARP inspectionYes
Reset buttonYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL3
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity0
Basic switching RJ-45 Ethernet ports typeNo
Console portRJ-45
Power connectorAC/DC
QSFP28 ports quantity8
SFP28 ports quantity48
USB Type-A ports quantity2
Number of management ports1 pc(s)
Network
VLAN supportYes
Spanning tree protocolYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
10G supportYes
Policy-based routingYes
IGMP snoopingYes
Data transmission
Jumbo frames9000
Packet buffer memory32 MB
MAC address table30000 entries
Switching capacity4000 Gbit/s
Jumbo frames supportYes
Static routeYes
Security
Loop protectionYes
SSH/SSL supportYes
Security algorithmsSSH-2, SSL/TLS
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast supportYes
Design
Reset buttonYes
Form factor1U
Product colourBlack
LED indicatorsYes
Rack mountingYes
Country of originTaiwan
Performance
Memory typeRAM / Flash
Mean time between failures (MTBF)5900181.1 h
Internal memory8000 MB
Flash memory64 MB
Packet buffer memory32 MB
Power
Power supply includedYes
Number of power supply units2
Power sourceAC/DC
Power connectorAC/DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 95%
Heat dissipation1122 BTU/h
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width440 mm
Depth489 mm
Height45 mm
Weight8.62 kg
Packaging content
Rack mount kitYes
Cables includedAC
Packaging data
Package typeBox
Package width595 mm
Package depth706 mm
Package height206 mm
Rack mount kitYes
Cables includedAC
Technical details
Form factor1U
Product colourBlack
Mean time between failures (MTBF)5900181.1 h
Rack mountingYes
Memory
Packet buffer memory32 MB
Memory typeRAM / Flash
Internal memory8000 MB
Flash memory64 MB
Indication
LED indicatorsYes
Other features
Country of originTaiwan
Logistics data
Country of originTaiwan
