INTELLINET/MANHATTAN 561273 INTELLINET/MANHATTAN 24-Port Gigabit Switch Desktop & 19

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

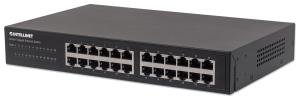

561273 INTELLINET/MANHATTAN 24-Port Gigabit Switch Desktop & 19"Rackmount Met

Part No:561273

Stock:5 In Stock

EAN Code:0766623561273

£110.28 Excl. VAT

£132.34 Incl. VAT

price matchPrice Match
Guarantee
Delivery7-12 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

24-Port Gigabit Switch Desktop & 19"Rackmount Met

Introduction

Boost your network speed. _x000D_
_x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch (561273) offers an array of features while providing superior network throughput. It is very easy to set up and requires no configuration whatsoever. Thanks to its desktop and 19"; rackmount design, superior performance and value, the Intellinet Network Solutions 24-Port Gigabit Ethernet Switch is the perfect choice for expanding your small office home or home network. _x000D_
_x000D_
Extreme Throughput _x000D_
With a backplane speed of 48 Gbps, plenty of performance is available for your computers, servers and other networking devices. _x000D_
_x000D_
Auto Features _x000D_
This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 24 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions. _x000D_
_x000D_
Green Ethernet Technology _x000D_
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new, energy efficient IEEE 802.3az technology, the Intellinet Network Solutions 24-Port Gigabit Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.

Specifications

Management features
Control and Provisioning of Wireless Access Points (CAPWAP)Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorAC-in jack
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supportedCat3, Cat4, Cat5, Cat5e
MAC address auto-learning supportedYes
MAC address auto-aging supportedYes
Auto-sensingYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Data transmission
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (1 Gbps)1488000 pps
Jumbo frames9000
Packet buffer memory0.512 MB
MAC address table16384 entries
Switching capacity48 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Design
Product colourBlack
LED indicatorsActivity, Link, Power
Housing materialMetal
Rack mountingYes
CertificationFCC A, CE
Power
Power consumption (max)16 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power connectorAC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width280 mm
Depth180 mm
Height44 mm
Weight2.6 kg
Packaging content
Rack mount kitYes
User guideYes
Cables includedAC
Performance
Packet buffer memory0.512 MB
Auto-negotiationYes
Harmonized System (HS) code85176990
Technical details
Product colourBlack
Housing materialMetal
Rack mountingYes
Memory
Packet buffer memory0.512 MB
Certificates
CertificationFCC A, CE
Indication
LED indicatorsActivity, Link, Power
Packaging data
Rack mount kitYes
User guideYes
Cables includedAC
Logistics data
Harmonized System (HS) code85176990
