LEVEL ONE FEP-1612W120 LEVEL ONE 16-Port Fast Ethernet PoE Switch- 802.3at PoE+- 120W

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

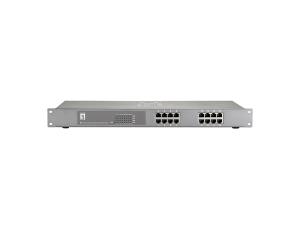

FEP-1612W120 LEVEL ONE 16-Port Fast Ethernet PoE Switch- 802.3at PoE+- 120W

Part No:FEP-1612W120

Stock:7 In Stock

EAN Code:4015867199879

£408.99 Excl. VAT

£490.79 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

16-Port Fast Ethernet PoE Switch- 802.3at PoE+- 120W

Introduction

LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely.

The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands.

Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- Supports 4K MAC address auto-learning and auto-aging
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 19-inch metal housing
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Specifications

Ports & interfaces
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Performance
Auto-negotiationYes
Buffer size160 KB
Plug and PlayYes
Harmonized System (HS) code85176990
Technical details
Product colourGrey
Housing materialMetal
Power over Ethernet (PoE)
Power protection featuresOver current
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity16
Power over Ethernet (PoE)Yes
Network
Cable types supportedCat3, Cat4, Cat5
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Data transmission
Packet forwarding rate (100 Mbps)148000 pps
Packet forwarding rate (10 Mbps)14880 pps
MAC address table4000 entries
Switching capacity3.2 Gbit/s
Store-and-forwardYes
Certificates
CertificationCE, FCC
Design
Country of originTaiwan
Product colourGrey
LED indicatorsActivity, PoE, Power
Housing materialMetal
CertificationCE, FCC
Indication
LED indicatorsActivity, PoE, Power
Power
Power protection featuresOver current
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)120 W
Input current5 A
Operational conditions
Storage temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width200 mm
Depth480 mm
Height44 mm
Weight2.85 kg
Packaging data
Package typeBox
Rubber feetYes
Quick start guideYes
Package width260 mm
Package depth535 mm
Package height90 mm
Package weight3.7 kg
Cables includedAC
Logistics data
Master (outer) case width520 mm
Master (outer) case length560 mm
Master (outer) case height280 mm
Master (outer) case gross weight19.8 kg
Products per master (outer) case5 pc(s)
Harmonized System (HS) code85176990
Packaging content
Rubber feetYes
Quick start guideYes
Cables includedAC
Other features
Country of originTaiwan
