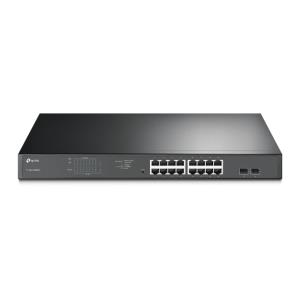

TP-LINK TL-SG1218MPE TP-LINK TL-SG1218MPE 18-Port Metal Gigabit Easy Smart PoE Switch with 16-Port PoE+ (250W)

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

TL-SG1218MPE TP-LINK TL-SG1218MPE 18-Port Metal Gigabit Easy Smart PoE Switch with 16-Port PoE+ (250W)

Part No:TL-SG1218MPE

Stock:9 In Stock

EAN Code:6935364086930

£141.56 Excl. VAT

£169.87 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

TL-SG1218MPE 18-Port Metal Gigabit Easy Smart PoE Switch with 16-Port PoE+ (250W)

Introduction

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Specifications

Ports & interfaces
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity16
Network
IGMP snoopingYes
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
VLAN supportYes
Rate limitingYes
Port mirroringYes
Number of VLANs32
Link aggregationYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Virtual LAN featuresPort-based VLAN
Virtual LAN features
VLAN supportYes
Number of VLANs32
Virtual LAN featuresPort-based VLAN
Data transmission
Number of VLANs32
Jumbo frames9000
Packet buffer memory4.1 MB
MAC address table8000 entries
Switching capacity36 Gbit/s
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Forwarding rate23.8 Mpps
Performance
Packet buffer memory4.1 MB
Auto-negotiationYes
Harmonized System (HS) code85176990
Technical details
Form factor1U
Product colourBlack
Rack mountingYes
Management features
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Optical fiber
Fiber ethernet cabling technology1000BASE-X
Security
Loop protectionYes
Security algorithmsSNMP, SNMPv2, SNMPv3
IGMP snoopingYes
Certificates
CertificationCE, FCC, RoHS
Memory
Packet buffer memory4.1 MB
Design
Form factor1U
Product colourBlack
CertificationCE, FCC, RoHS
Rack mountingYes
Number of fans2 fan(s)
Power
Power consumption (max)217.22 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity16
Total Power over Ethernet (PoE) budget192 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation741.15 BTU/h
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Packaging data
Rack mount kitYes
Package width250 mm
Package depth528 mm
Package height80 mm
User guideYes
Package weight2.91 kg
Cables includedAC
Logistics data
Harmonized System (HS) code85176990
Packaging content
Rack mount kitYes
User guideYes
Cables includedAC
