ZYXEL XGS1210-12-ZZ0102F ZYXEL XGS1210-12 V2 12-PORT GIGABIT

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

XGS1210-12-ZZ0102F ZYXEL XGS1210-12 V2 12-PORT GIGABIT

Part No:XGS1210-12-ZZ0102F

Stock:2 In Stock

EAN Code:4718937633715

£107.44 Excl. VAT

£128.93 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

XGS1210-12 V2 12-PORT GIGABIT

Introduction

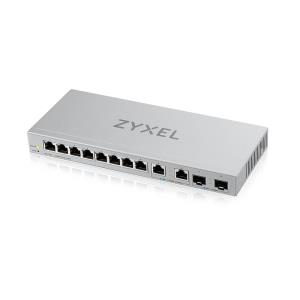

The Zyxel XGS1210-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with an easy-to-use Web GUI allowing users to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simplified management over a variety of home to office environments.

Maximums the flexibility for your network.
The XGS1210-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.

Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file

10G SFP+ ultra-speed uplink
Provide two SFP+ ports compatible with 10GbE and which offers higher transmission speeds and get customers to instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

Easy management with intuitive GUI
XGS1210-12 comes with a user-friendly web-based setup wizard that quickly and easily walks you through setup, configuration and management, including configuration backups and firmware upgrades. With a few simple clicks, your network will be up and running, so you can get back to business.

Comprehensive smart features
XGS1210-12 caters to most users and provides an affordable solution with essential features including VLAN, QoS, IGMP snooping v1/v2 and v3 compatible, link aggregation, and port mirroring. Does not require any additional software. Simplified for home and small office users’ network.

Saving energy and space.
The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Specifications

Management features
Reset buttonYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
Ports & interfaces
SFP+ module slots quantity2
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity2
Network
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Full duplexYes
VLAN supportYes
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Broadcast storm controlYes
Auto MDI/MDI-XYes
IGMP snoopingYes
Data transmission
Jumbo frames12000
Packet buffer memory1.5 MB
MAC address table16000 entries
Switching capacity66 Gbit/s
Jumbo frames supportYes
Static routeYes
Forwarding rate49 Mpps
Security
Loop protectionYes
IGMP snoopingYes
DHCP featuresDHCP client
Multicast features
Multicast supportYes
Design
Reset buttonYes
Product colourGrey
LED indicatorsYes
Number of fans0 fan(s)
Power
Power consumption (max)15.61 W
Power supply includedYes
AC input voltage100 - 240 V
Input current1.5 A
DC input voltage12 V
Power sourceAC/DC
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width250 mm
Depth104 mm
Height24 mm
Weight768 g
Packaging data
Package width306 mm
Package depth225 mm
Package height64 mm
Package weight1.22 kg
Performance
Packet buffer memory1.5 MB
Harmonized System (HS) code85176990
Technical details
Product colourGrey
Memory
Packet buffer memory1.5 MB
Indication
LED indicatorsYes
Other features
Ethernet LAN data rates10,100,1000,2500 Mbit/s
Logistics data
Harmonized System (HS) code85176990
