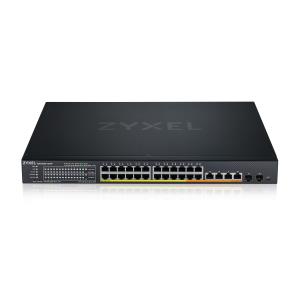

ZYXEL XMG1930-30HP-ZZ0101F ZYXEL XMG1930-30HP 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

XMG1930-30HP-ZZ0101F ZYXEL XMG1930-30HP 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink

Part No:XMG1930-30HP-ZZ0101F

Stock:5 In Stock

EAN Code:4718937622078

£1,039.91 Excl. VAT

£1,247.89 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

XMG1930-30HP 24-port 2.5GbE Smart Managed Layer 2 PoE 700W 22xPoE+/8xPoE++ Switch with 4 10GbE and 2 SFP+ Uplink

Introduction

The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.
On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.

Specifications

Management features
Reset buttonYes
Switch typeManaged
Web-based managementYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL3
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity0
Installed SFP+ modules quantity2
Fiber optic connectorSFP+
Power connectorAC-in jack
10G Ethernet (copper) ports quantity4
Network
Networking standardsIEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Number of VLANs4000
Flow control supportYes
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
Broadcast storm controlYes
10G supportYes
Policy-based routingYes
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
Data transmission
Jumbo frames12000
MAC address table16000 entries
Switching capacity240 Gbit/s
Jumbo frames supportYes
Static routeYes
Forwarding rate178.5 Mpps
Number of VLANs4000
Security
Loop protectionYes
SSH/SSL supportYes
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP client, DHCPv6 relay
Multicast features
Multicast supportYes
Protocols
GARP VLAN Registration Protocol (GVRP)Yes
Design
Reset buttonYes
Form factor1U
Product colourBlack
LED indicatorsYes
Rack mountingYes
Performance
Mean time between failures (MTBF)587922.31 h
Power
Power consumption (max)864.1 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Power connectorAC-in jack
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity20
Total Power over Ethernet (PoE) budget700 W
Power over Ethernet (PoE) ports quantity28
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 95%
Operating temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)5 - 95%
Heat dissipation864.1 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Weight & dimensions
Width441 mm
Depth330 mm
Height44 mm
Weight4.85 kg
Packaging content
Rack mount kitYes
Cables includedAC
Optical fiber
Fiber optic connectorSFP+
Technical details
Form factor1U
Product colourBlack
Mean time between failures (MTBF)587922.31 h
Rack mountingYes
Indication
LED indicatorsYes
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
Packaging data
Rack mount kitYes
Cables includedAC
Other features
Ethernet LAN data rates10,100,1000,2500,10000 Mbit/s
