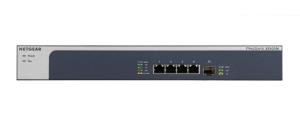

NETGEAR XS505M-100EUS NETGEAR 5Port Switch 100/1000/10000 XS505M

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

XS505M-100EUS NETGEAR 5Port Switch 100/1000/10000 XS505M

Part No:XS505M-100EUS

Stock:5 In Stock

EAN Code:0606449131130

£286.69 Excl. VAT

£344.03 Incl. VAT

price matchPrice Match
Guarantee
Delivery5-7 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

5Port Switch 100/1000/10000 XS505M

Introduction

NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting

Specifications

Performance
Packet buffer memory128 MB
Mean time between failures (MTBF)1093237 h
Harmonized System (HS) code85176990
Power
Power connectorDC-in jack
Power consumption (max)22.5 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)12.25 W
Input current1.5 A
Power sourceAC
Technical details
Product colourGrey, Silver
Mean time between failures (MTBF)1093237 h
Rack mountingYes
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
SFP+ module slots quantity1
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports type10G Ethernet (100/1000/10000)
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
Flow control supportYes
10G supportYes
Data transmission
Jumbo frames9000
Packet buffer memory128 MB
MAC address table2000 entries
Switching capacity100 Gbit/s
Jumbo frames supportYes
Certificates
SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Memory
Packet buffer memory128 MB
Design
SafetyCE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Product colourGrey, Silver
LED indicatorsYes
Certification47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Rack mountingYes
Indication
LED indicatorsYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Heat dissipation85.3 BTU/h
Weight & dimensions
Width328 mm
Depth169 mm
Height43.2 mm
Weight1.38 kg
Logistics data
Harmonized System (HS) code85176990
