ATEN CL1308N-UK ATEN 8-Port 19

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

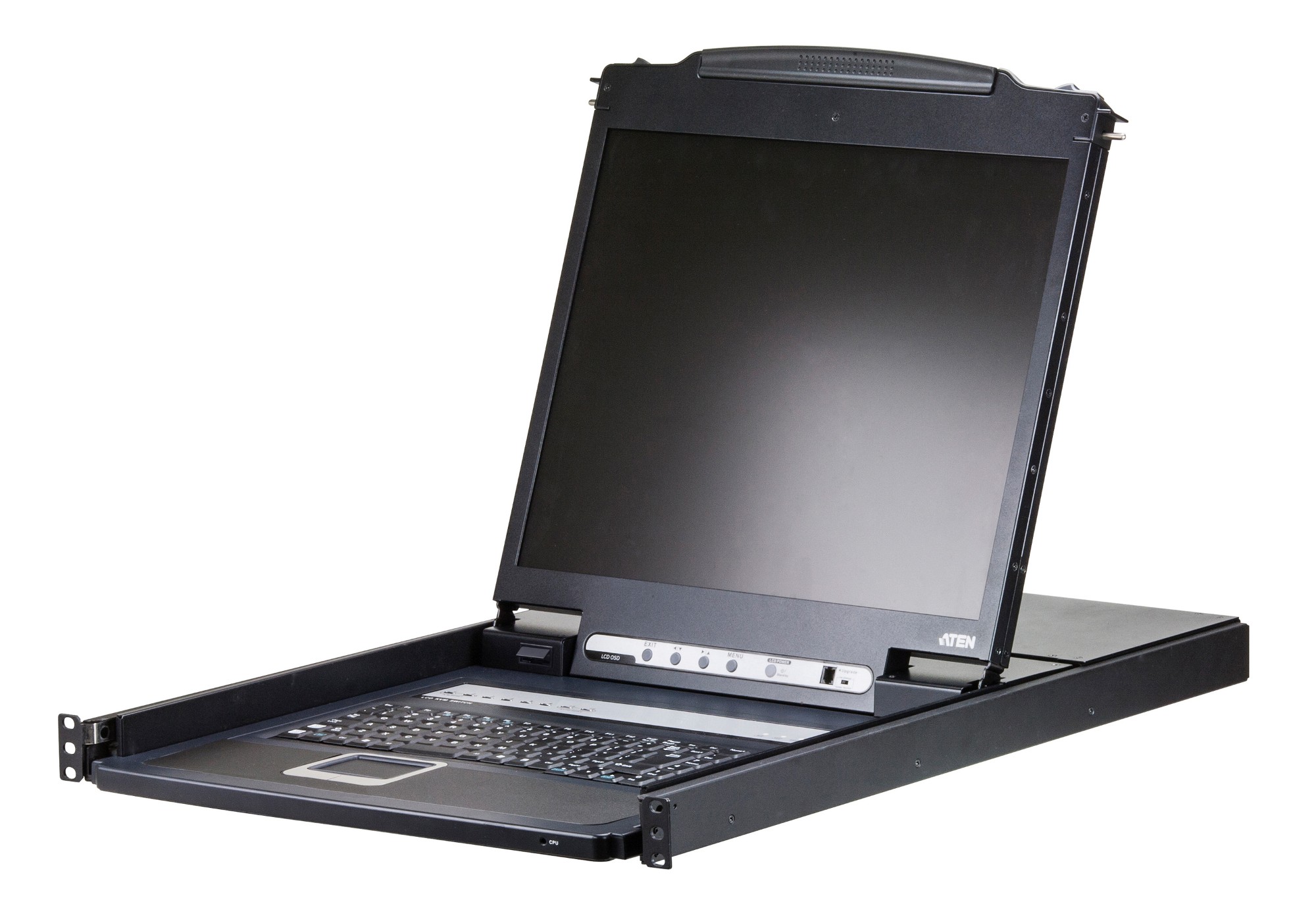

CL1308N-UK ATEN 8-Port 19" LCD KVM Switch with UK Keyboard

Part No:CL1308N-UK

Stock:1 In Stock

EAN Code:4710469345012

£721.27 Excl. VAT

£865.52 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

8-Port 19" LCD KVM Switch with UK Keyboard

Introduction

With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing.


The CL1308 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 8 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 128 computers that can be controlled from a single keyboard-monitor-mouse console.

Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1308 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

Specifications

Ports & interfaces
Console portsSPHD
Number of computers controlled128
Keyboard port typePS/2
Mouse port typeUSB
Video port typeVGA
RJ-11 ports quantity1
AC-in ports quantity1
Performance
DDC2B supportYes
Firmware upgradeableYes
HD typeWUXGA
Video bandwidth75 Hz
Hot-Plug supportYes
Maximum resolution1280 x 1024 pixels
Scan interval1,255 s
Maximum analog resolution1920 x 1200 pixels
Technical details
Product colourBlack
Rack mountingYes
Hot-Plug supportYes
Scan interval1,255 s
Push buttonYes
Output connections8x SPHD
On Screen Display (OSD)Yes
LED indicatorsYes
Hot keysYes
CascadableYes
Compliance certificatesRoHS
Design
Display switch buttonYes
Product colourBlack
Rack mountingYes
Push buttonYes
LED indicatorsYes
Hot keysYes
CascadableYes
Rack capacity1U
Housing materialMetal, Plastic
Display
Built-in displayYes
DisplayLCD
On Screen Display (OSD)Yes
Display diagonal48.3 cm (19")
Power
Input current1 A
Power sourceAC
AC input frequency50/60 Hz
Input voltage100 - 240 V
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Video
HD typeWUXGA
Video bandwidth75 Hz
Maximum resolution1280 x 1024 pixels
Maximum analog resolution1920 x 1200 pixels
Sustainability
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Width689.2 mm
Depth483 mm
Height44 mm
Weight12.6 kg
Packaging content
Rack mount kitYes
Cables includedAC, KVM
Quick installation guideYes
ManualYes
Other features
Output connections8x SPHD
Push buttonYes
Hot keysYes
