Part No:CS1762A
Stock:4 In Stock
EAN Code:4710423776821

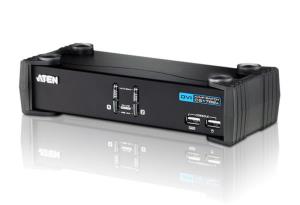

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Ports & interfaces | |
---|---|
Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
USB version | 2.0 |
USB connector type | USB Type-A, USB Type-B |
Number of microphone inputs | 1 |
Number of computers controlled | 2 |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | DVI-I |
Audio connections | Yes |
Headphone outputs | 2 |
DVI-I ports quantity | 1 |
DC-in jack | Yes |
USB hub | Yes |
HDCP | Yes |
Performance | |
HDCP | Yes |
Power on detection | Yes |
HD type | WUXGA |
Maximum resolution | 1920 x 1200 pixels |
Scan interval | 1,99 s |
Technical details | |
Product colour | Black |
Rack mounting | No |
Scan interval | 1,99 s |
Push button | Yes |
On Screen Display (OSD) | No |
LED indicators | Yes |
Hot keys | Yes |
USB version | 2.0 |
USB hub | Yes |
Compliance certificates | RoHS |
Design | |
Product colour | Black |
Rack mounting | No |
Push button | Yes |
LED indicators | Yes |
Hot keys | Yes |
Housing material | Metal |
Display | |
Built-in display | No |
On Screen Display (OSD) | No |
Power | |
Power source | DC |
Power consumption (typical) | 9 W |
Input voltage | 5.3 V |
System requirements | |
Windows operating systems supported | Yes |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Other operating systems supported | Yes |
Video | |
HD type | WUXGA |
Maximum resolution | 1920 x 1200 pixels |
Sustainability | |
Compliance certificates | RoHS |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions | |
Width | 210 mm |
Depth | 88 mm |
Height | 55.5 mm |
Weight | 730 g |
Packaging content | |
Cables included | KVM |
Quick installation guide | Yes |
Manual | Yes |
AC adapter included | Yes |
Other features | |
Push button | Yes |
Hot keys | Yes |
Logistics data | |
Harmonized System (HS) code | 85176200 |
