Part No:IGX-2072
Stock:13 In Stock
EAN Code:0846359060940

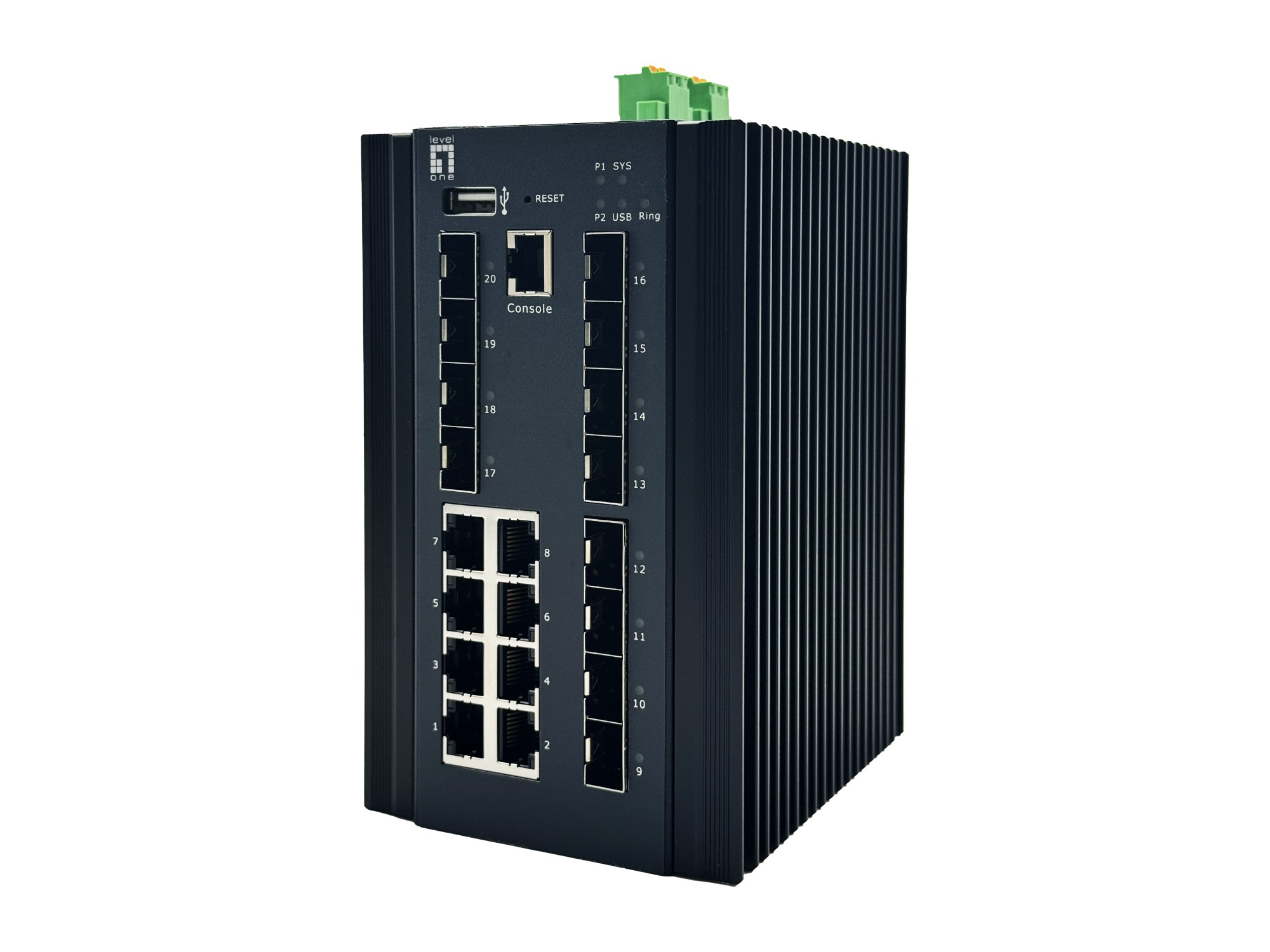

The LevelOne IGX-2072 is a rugged design L2+ managed industrial Ethernet switch designed for demanding environments. With its 8 Gigabit RJ45 ports, 8 Gigabit SFP ports, and 4 10-Gigabit SFP+ ports, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time, it offers exceptional connectivity and bandwidth for mission-critical industrial applications.
Management features | |
---|---|
ARP inspection | Yes |
Switch type | Managed |
Web-based management | Yes |
System event log | Yes |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Switch layer | L2+ |
Configuring Location Settings (CLI) | Yes |
Ports & interfaces | |
SFP module slots quantity | 8 |
SFP+ module slots quantity | 4 |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Installed SFP modules quantity | 0 |
Installed SFP+ modules quantity | 0 |
Gigabit Ethernet (copper) ports quantity | 8 |
Console port | RJ-45 |
USB Type-A ports quantity | 1 |
Terminal block port | Yes |
Network | |
Cable length detection | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Broadcast storm control | Yes |
10G support | Yes |
Ethernet Ring Protection Switching (ERPS) | Yes |
Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
IGMP snooping | Yes |
GARP VLAN Registration Protocol (GVRP) | Yes |
Data transmission | |
Jumbo frames | 10000 |
Packet buffer memory | 12 MB |
MAC address table | 16000 entries |
Switching capacity | 112 Gbit/s |
Jumbo frames support | Yes |
Static route | Yes |
Security | |
Loop protection | Yes |
IP-MAC-Port binding | Yes |
Security algorithms | HTTPS |
MAC address filtering | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
Password protection | Yes |
Packet filtering | Yes |
Authentication type | IEEE 802.1x |
DHCP features | DHCP server |
Multicast features | |
Multicast support | Yes |
Protocols | |
GARP VLAN Registration Protocol (GVRP) | Yes |
IP Source Guard (IPSG) | Yes |
Design | |
International Protection (IP) code | IP40 |
DIN rail mounting | Yes |
Product colour | Black |
LED indicators | Ring, System, USB |
Country of origin | China |
Performance | |
Mean time between failures (MTBF) | 200000 h |
Firmware upgradeable | Yes |
Telnet | Yes |
Dying Gasp | Yes |
Fanless | Yes |
Packet buffer memory | 12 MB |
Packet filtering | Yes |
Harmonized System (HS) code | 851762 |
Power | |
Power consumption (max) | 27 W |
Surge protection voltage | 6 kV |
Redundant power supply (RPS) support | Yes |
Input voltage | 12 - 75 V |
Surge protection | Yes |
Power source | DC |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | No |
Other features | |
Terminal block port | Yes |
Input voltage | 12 - 75 V |
Country of origin | China |
Operational conditions | |
Storage temperature (T-T) | -40 - 85 °C |
Storage relative humidity (H-H) | 5 - 95% |
Operating temperature (T-T) | -40 - 80 °C |
Operating relative humidity (H-H) | 10 - 90% |
Virtual LAN features | |
VLAN support | Yes |
Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
Weight & dimensions | |
Width | 110 mm |
Depth | 115 mm |
Height | 158 mm |
Weight | 1.79 kg |
Packaging content | |
Quick start guide | Yes |
Cables included | LAN (RJ-45) to DB9 |
DIN rail included | Yes |
Packaging data | |
DIN rail included | Yes |
Package width | 232 mm |
Package depth | 180 mm |
Package height | 138 mm |
Package weight | 2.12 kg |
Quick start guide | Yes |
Cables included | LAN (RJ-45) to DB9 |
Technical details | |
Product colour | Black |
Mean time between failures (MTBF) | 200000 h |
Firmware upgradeable | Yes |
Telnet | Yes |
Packet filtering | Yes |
Dying Gasp | Yes |
Pallet gross width | 120 cm |
Pallet gross length | 80 cm |
Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
Memory | |
Packet buffer memory | 12 MB |
Certificates | |
Compliance certificates | UKCA, Federal Communications Commission (FCC), RoHS, CE |
Indication | |
LED indicators | Ring, System, USB |
Mobile network | |
GARP VLAN Registration Protocol (GVRP) | Yes |
Logistics data | |
Country of origin | China |
Master (outer) case width | 440 mm |
Master (outer) case length | 375 mm |
Master (outer) case height | 255 mm |
Master (outer) case gross weight | 15 kg |
Products per master (outer) case | 6 pc(s) |
Pallet gross height | 167.4 cm |
Harmonized System (HS) code | 851762 |
