GIGABYTE TECH MZ33-AR0 GIGABYTE TECH Mainboard MZ33-AR0 E-ATX Sockel SP5 Single - Motherboard - E-ATX

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

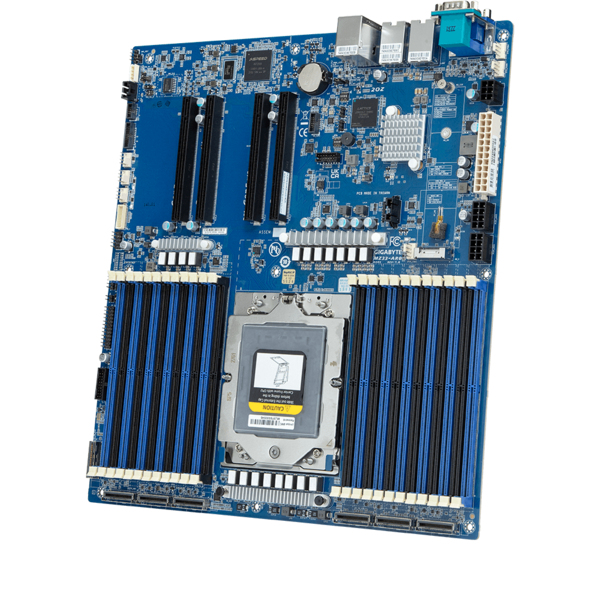

MZ33-AR0 GIGABYTE TECH Mainboard MZ33-AR0 E-ATX Sockel SP5 Single - Motherboard - E-ATX

Part No:MZ33-AR0

Stock:27 In Stock

EAN Code:0889523038888

£954.20 Excl. VAT

£1,145.04 Incl. VAT

price matchPrice Match
Guarantee
Delivery5-7 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Mainboard MZ33-AR0 E-ATX Sockel SP5 Single - Motherboard - E-ATX

Introduction

Powering the Next Generation of Server Architecture and Energy Efficiency
The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.

Specifications

Internal I/O
Number of M.2 (M) slots1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Front panel connectorYes
Supported storage drive interfacesM.2
USB 2.0 connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
Number of SATA III connectors0
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
Technical details
Motherboard chipset familyAMD
Motherboard form factorExtended ATX
Component forServer
Performance
Motherboard chipset familyAMD
Motherboard form factorExtended ATX
Component forServer
Processor
Processor manufacturerAMD
Compatible processor seriesAMD EPYC 9004
Processor socketSocket SP5
Memory
Number of memory slots24
Memory slots typeDIMM
Supported memory typesDDR5-SDRAM
Supported memory clock speeds3600,4000,4400,4800 MHz
Storage controllers
Supported storage drive interfacesM.2
Number of storage drives supported8
Graphics
On-board graphics card modelAspeed AST2600
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 2.0 ports quantity0
VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports2
DVI-D ports quantity0
COM ports quantity1
Network
Ethernet LANYes
Wi-FiNo
LAN controllerBroadcom BCM57416
Ethernet interface typeGigabit Ethernet
Features
Power source typeATX
Motherboard chipset familyAMD
Motherboard form factorExtended ATX
Component forServer
Product colourBlue
Expansion slots
Number of M.2 (M) slots1
PCI Express x16 (Gen 5.x) slots4
Power
Power source typeATX
Operational conditions
Storage temperature (T-T)10 - 40 °C
Operating temperature (T-T)-40 - 60 °C
Storage relative humidity (H-H)20 - 95%
Operating relative humidity (H-H)8 - 80%
Packaging data
Package width409 mm
Package depth355 mm
Package height78 mm
Weight & dimensions
Package width409 mm
Package depth355 mm
Package height78 mm
Width305 mm
Depth330 mm
Packaging content
Cables includedSATA
Other features
Package width409 mm
Package depth355 mm
Package height78 mm
