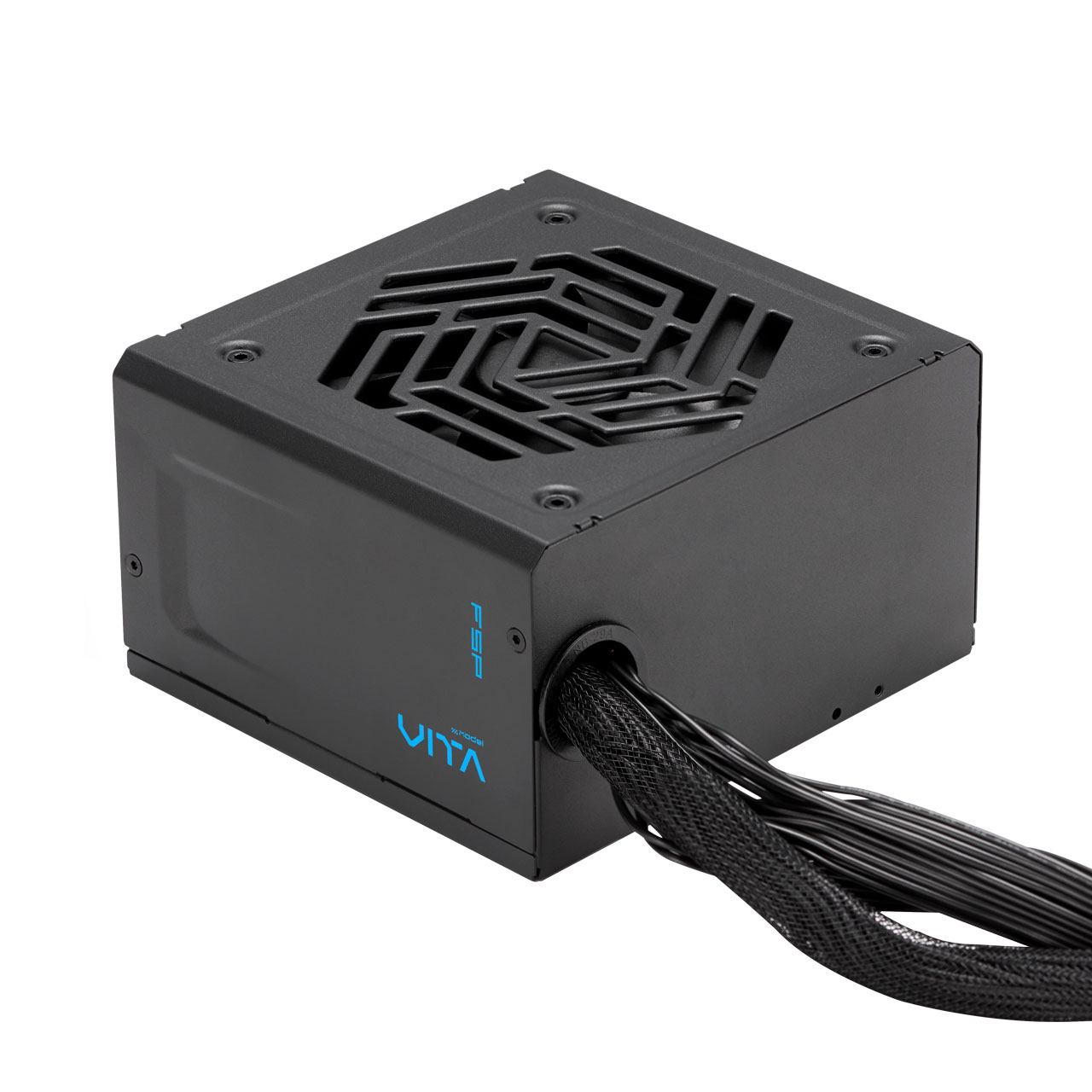

PPA7508205 FSP FSP Netzteil VITA 750 GD 80+G 750W ATX3.1/GEN5 retail

Part No:PPA7508205

Stock:10 In Stock

EAN Code:4711498480354

£87.16 Excl. VAT

£104.59 Incl. VAT

Price Match
Guarantee

7-12 days delivery

100% Customer
Satisfaction

Secure Payment
Options

We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Product Description
Customer Reviews

FSP Netzteil VITA 750 GD 80+G 750W ATX3.1/GEN5 retail

Introduction

The Future is Now:ATX 3.1 Ready
Following the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades.

+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.

Powerful Single +12V Rail
Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.

Premium, Black Flat Cables
Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.

105°C Japanese Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Compact PSU size:140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.

Specifications

Cooling
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Design
80 PLUS certification	80 PLUS Gold
Product colour	Black
Fan diameter	12 cm
Number of fans	1 fan(s)
Fan location	Top
Cooling type	Active
Power
Total power	750 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	10-5 A
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	750 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	90%
Ports & interfaces
Motherboard power cable length	60 cm
SATA power cable length	500 mm
CPU power cable length	70 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
Cabling type	Non-Modular
Performance
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
EPS version	2.92
Bearing technology	HYB
Packaging content
Cables included	CPU, Peripheral (Molex), SATA
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Packaging data
Cables included	CPU, Peripheral (Molex), SATA
Certificates
80 PLUS certification	80 PLUS Gold
