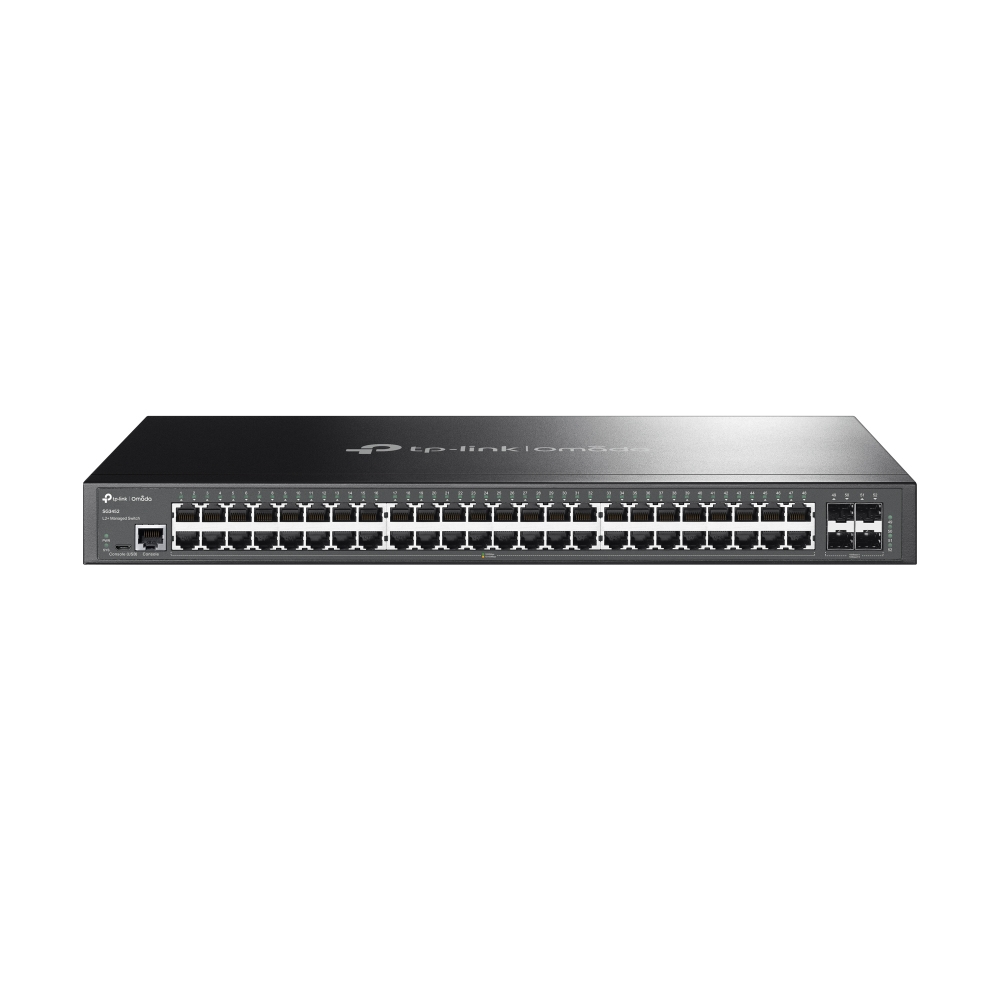

TP-LINK SG3452(UN) TP-LINK Omada Switch 48x GE SG3452 (JetStream) 4xSFP

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

SG3452(UN) TP-LINK Omada Switch 48x GE SG3452 (JetStream) 4xSFP

Part No:SG3452(UN)

Stock:6 In Stock

EAN Code:

£388.64 Excl. VAT

£466.37 Incl. VAT

price matchPrice Match
Guarantee
Delivery7-12 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Omada Switch 48x GE SG3452 (JetStream) 4xSFP

Introduction

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Specifications

Management features
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
Multicast supportYes
MIB supportYes
Switch layerL2+
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity48
Console portRJ-45/Micro-USB
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Head-of-line (HOL) blockingYes
VLAN supportYes
Spanning tree protocolYes
Port mirroringYes
Number of VLANs4000
Link aggregationYes
IP routingYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Auto-negotiationYes
Policy-based routingYes
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IPv6 routes48
IPv4 routes48
IGMP snoopingYes
GARP VLAN Registration Protocol (GVRP)Yes
Data transmission
Jumbo frames9000
Packet buffer memory12 MB
MAC address table16000 entries
Switching capacity104 Gbit/s
Store-and-forwardYes
Jumbo frames supportYes
Static routeYes
Forwarding rate77.38 Mpps
Number of VLANs4000
Multicast Listener Discovery (MLD) snoopingYes
Security
Loop protectionYes
IP-MAC-Port bindingYes
BPDU filtering/protectionYes
AuthenticationMAC-based authentication, Port-based authentication
SSH/SSL supportYes
MAC address filteringYes
IGMP snoopingYes
Access Control List (ACL)Yes
Authentication typeAAA, RADIUS, TACACS+
DHCP featuresDHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping
Multicast features
Multicast supportYes
Multicast Listener Discovery (MLD) snoopingYes
Protocols
Management protocolsSNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)Yes
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Design
Form factor1U
Product colourBlack
Rack mountingYes
CertificationCE, FCC, RoHS
Performance
Internal memory256 MB
Flash memory32 MB
FanlessYes
Packet buffer memory12 MB
Auto-negotiationYes
Power
Power consumption (max)34.86 W
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation118.94 BTU/h
Virtual LAN features
VLAN supportYes
Number of VLANs4000
Virtual LAN featuresPort-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Packaging content
Rack mount kitYes
Quick start guideYes
Cables includedAC
IPv4 & IPv6 features
IPv4 & IPv6 featuresIPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Technical details
Form factor1U
Product colourBlack
Rack mountingYes
Memory
Packet buffer memory12 MB
Internal memory256 MB
Flash memory32 MB
Certificates
CertificationCE, FCC, RoHS
Mobile network
GARP VLAN Registration Protocol (GVRP)Yes
Packaging data
Rack mount kitYes
Quick start guideYes
Cables includedAC
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
