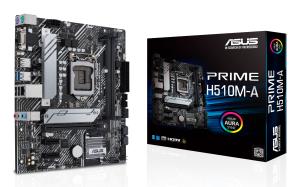

ASUS 90MB17C0-M0EAY0 ASUS ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

90MB17C0-M0EAY0 ASUS ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX

Part No:90MB17C0-M0EAY0

Stock:100 In Stock

EAN Code:4711081128465

£64.71 Excl. VAT

£77.65 Incl. VAT

price matchPrice Match
Guarantee
Delivery5-7 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

ASUS PRIME H510M-A S1200/DDR4/DP-HDMI-VGA/1xM.2/µATX

Introduction

Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and AURA Addressable Gen 2 headers

Specifications

Internal I/O
Number of M.2 (M) slots1
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Audio connectorYes
12V power connectorYes
Supported storage drive interfacesM.2, SATA
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
S/PDIF out connectorYes
Peripheral (Molex) power connectors (4-pin)3
Number of SATA III connectors4
Number of Parallel ATA connectors0
Number of EATX power connectors1
Number of COM connectors1
Number of chassis fan connectors2
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Technical details
Number of displays supported3
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
HDMI version2.0
Motherboard form factormicro ATX
Component forPC
Number of mounting holes6
Audio
Audio output channels7.1 channels
Performance
Supported storage drive typesHDD & SSD
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Expansion card interfaces
Audio connectorYes
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors1
Processor socketLGA 1200 (Socket H5)
Memory
Number of memory slots2
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666,2800,2933 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
ECC ?ompatibilityNon-ECC
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA
Number of storage drives supported5
Graphics
Number of displays supported3
Maximum resolution4096 x 2304 pixels
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
DisplayPort version1.4
USB 2.0 ports quantity4
eSATA ports quantity0
VGA (D-Sub) ports quantity1
PS/2 ports quantity2
Microphone inYes
Firewire (IEEE 1394) ports0
Headphone outputs1
HDMI version2.0
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DVI-D ports quantity0
DisplayPorts quantity1
Network
Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I219-V
Ethernet interface typeGigabit Ethernet
Features
Power source typeATX
Number of mounting holes6
Windows operating systems supportedWindows 10 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H510
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Audio chipRealtek ALC887 / Realtek ALC897
Harmonized System (HS) code84733020
Expansion slots
Number of M.2 (M) slots1
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
BIOS
BIOS typeUEFI AMI
Clear CMOS jumperYes
BIOS memory size128 Mbit
Power
Power source typeATX
Video
Maximum resolution4096 x 2304 pixels
Software
Windows operating systems supportedWindows 10 x64
Drivers includedYes
Logistics data
Harmonized System (HS) code84733020
Weight & dimensions
Width226 mm
Depth211 mm
Packaging content
Drivers includedYes
Cables includedSATA
