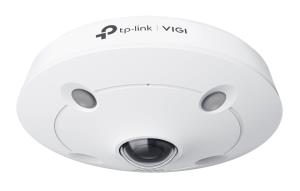

TP-LINK INSIGHT S655I TP-LINK InSight S655I VIGI IR Network Cam - Network Camera

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

INSIGHT S655I TP-LINK InSight S655I VIGI IR Network Cam - Network Camera

Part No:INSIGHT S655I

Stock:21 In Stock

EAN Code:8885020627848

£352.86 Excl. VAT

£423.43 Incl. VAT

price matchPrice Match
Guarantee
Delivery5-7 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

InSight S655I VIGI IR Network Cam - Network Camera

Introduction

360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.

Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.

Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.

3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.

White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

Specifications

Performance
Infrared (IR) cut-off filterYes
TypeIP security camera
Connectivity technologyWired
Placement supportedIndoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
Dynamic range120 dB
Design
WeatherproofYes
IK codeIK10
Product colourWhite
Mounting typeCeiling/wall
Protection featuresWeatherproof
International Protection (IP) codeIP67
Housing materialMetal
Camera
Minimum illumination0 lx
Camera shutter speed1/3 - 1/10000 s
Lens viewing angle, horizontal180°
Lens viewing angle, vertical180°
Lens viewing angle, diagonal180°
Number of Privacy masking areas4
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Panoramic camera
Sensor type (panoramic camera)CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)52 dB
Digital Wide Dynamic Range (DWDR) (panoramic camera)Yes
Lens system
Maximum aperture number2
Detect distance28.8 m
Observe distance12 m
Recognize distance5.7 m
Identify distance2.8 m
Fixed focal length1.44 mm
Night vision
Night visionYes
Night vision distance10 m
LED typeIR
Number of illumination LEDs4
Infra-red wavelength850 nm
Video
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Smart IRYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate64 Kbps to 6 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+
Maximum resolution2560 x 1920 pixels
Supported graphics resolutions320 x 240, 640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920
Frame rate30 fps
Video streamingYes
Total megapixels5 MP
Audio
Built-in speaker(s)Yes
Sample rate8 kHz
Signal-to-Noise Ratio (SNR)52 dB
Built-in microphoneYes
Audio system2-way
Bit rate range0 - 64 Kbit/s
Number of microphones1
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Client interoperabilityUtility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Number of simultaneous live view channels6 channels
Storage
Maximum memory card size512 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Privacy protectionYes
Alert notification typeE-mail, Push notification
Motion sensorYes
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
Digest authenticationYes
Management features
Web browserYes
Reset buttonYes
Cloud-managedYes
Power
Power source typeDC, PoE
Power consumption (max)11.76 W
Power consumption (Power over Ethernet (PoE))12.14 W
DC output voltage12
Certificates
CertificationCE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Height56 mm
Diameter13.2 cm
Weight440 g
Packaging content
Number of cameras1
Technical details
Lens mount interfaceM12
Other features
Video compression formatsH.264, H.264+, H.265, H.265+
