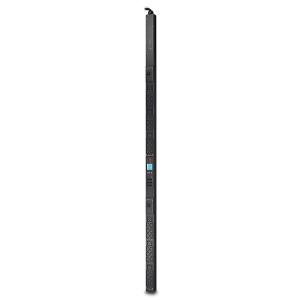

APC AP8841 APC Rack PDU 2G metered Zero U 30A,200/208V,(36)C13+(6)C19 - AP8841

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

AP8841 APC Rack PDU 2G metered Zero U 30A,200/208V,(36)C13+(6)C19 - AP8841

Part No:AP8841

Stock:1 In Stock

EAN Code:0731304277002

£688.40 Excl. VAT

£826.08 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Rack PDU 2G metered Zero U 30A,200/208V,(36)C13+(6)C19 - AP8841

Introduction

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable

Specifications

Design
Product colourBlack
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS,REACH
Ports & interfaces
Output connections36x IEC 320 C13 6x IEC 320 C19
Input connection typeNEMA L6-30P
Features
Cable length3 m
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS,REACH
Ergonomics
Cable length3 m
Power
Maximum total current draw per phase30 A
Maximum input current per phase30 A
AC input frequency50 - 60 Hz
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDE RoHS,REACH
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Dimensions (WxDxH)56 x 44 x 1791 mm
Weight6.84 kg
Width56 mm
Depth44 mm
Height1791 mm
Package width162 mm
Package depth107 mm
Package height2000 mm
Package weight8.47 kg
Package dimensions (WxDxH)162 x 107 x 2000 mm
Packaging data
Package width162 mm
Package depth107 mm
Package height2000 mm
Package weight8.47 kg
Package dimensions (WxDxH)162 x 107 x 2000 mm
Technical details
Total carbon footprint (kg of CO2e)27252.29
Logistics data
Total carbon footprint (kg of CO2e)27252.29
