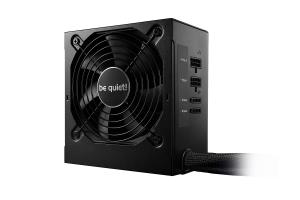

BE QUIET BN301 BE QUIET be quiet! SYSTEM POWER 9 500W PSU, 80 PLUS Bronze, Temperature-Controlled 120mm Fan, 2 Strong 12V-Rails, 3 Year Warranty

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

BN301 BE QUIET be quiet! SYSTEM POWER 9 500W PSU, 80 PLUS Bronze, Temperature-Controlled 120mm Fan, 2 Strong 12V-Rails, 3 Year Warranty

Part No:BN301

Stock:50 In Stock

EAN Code:4260052187227

£39.72 Excl. VAT

£47.66 Incl. VAT

Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

be quiet! SYSTEM POWER 9 500W PSU, 80 PLUS Bronze, Temperature-Controlled 120mm Fan, 2 Strong 12V-Rails, 3 Year Warranty

Introduction

Proven Reliability and Good Efficiency

Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 500W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.

Specifications

Cooling
Fan diameter12 cm
Number of fans1 fan(s)
Cooling typeActive
Design
80 PLUS certification80 PLUS Bronze
CertificationCE, CB, TÜV, RCM, CU
Product colourBlack
Fan diameter12 cm
Number of fans1 fan(s)
Cooling typeActive
Power
Total power500 W
AC input voltage200 - 240 V
AC input frequency50 Hz
Input current4 A
Power factor0.95
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)110 W
Combined power (+12V)456 W
Combined power (+5V)110 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V1)24 A
Max output current (+12V2)20 A
Max output current (+5V)15 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Hold time17 ms
Efficiency89%
Ports & interfaces
Motherboard power cable length55 cm
SATA power cable length550,670 mm
PCI Express power cable length50 cm
CPU power cable length60 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Number of PATA power connectors2
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular
Performance
Power supply unit (PSU) form factorATX
Noise level (quiet mode, 50%)11.5 dB
Noise level (silent mode, <30%)9.7 dB
Noise level (full-load mode, 100%)24.4 dB
80 PLUS certification80 PLUS Bronze
PurposePC
ATX version2.51
CertificationCE, CB, TÜV, RCM, CU
Bearing technologySleeve
Compatible productsIntel C6/C7
Harmonized System (HS) code84733020
Packaging content
Cables includedPCIe, SATA
Screws includedYes
ManualYes
Weight & dimensions
Width150 mm
Depth140 mm
Height86 mm
Weight1.56 kg
Packaging data
Cables includedPCIe, SATA
Screws includedYes
Package depth268 mm
Package width97 mm
Package height195 mm
Package typeBox
Package weight2.22 kg
ManualYes
Technical details
Sustainability certificatesENERGY STAR
Compliance certificatesRoHS
Certificates
80 PLUS certification80 PLUS Bronze
CertificationCE, CB, TÜV, RCM, CU
Logistics data
Master (outer) case width311 mm
Master (outer) case length215 mm
Master (outer) case height556 mm
Products per master (outer) case6 pc(s)
Master (outer) case gross weight14 kg
Harmonized System (HS) code84733020
Other features
Screws includedYes
Noise level (quiet mode, 50%)11.5 dB
Noise level (silent mode, <30%)9.7 dB
Noise level (full-load mode, 100%)24.4 dB
ManualYes
Harmonized System (HS) code84733020
