DAHUA DH-PFT1500 DAHUA 5-PORT PoE EXTENDER 4 OUT / 1 IN - DIN MODULE

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

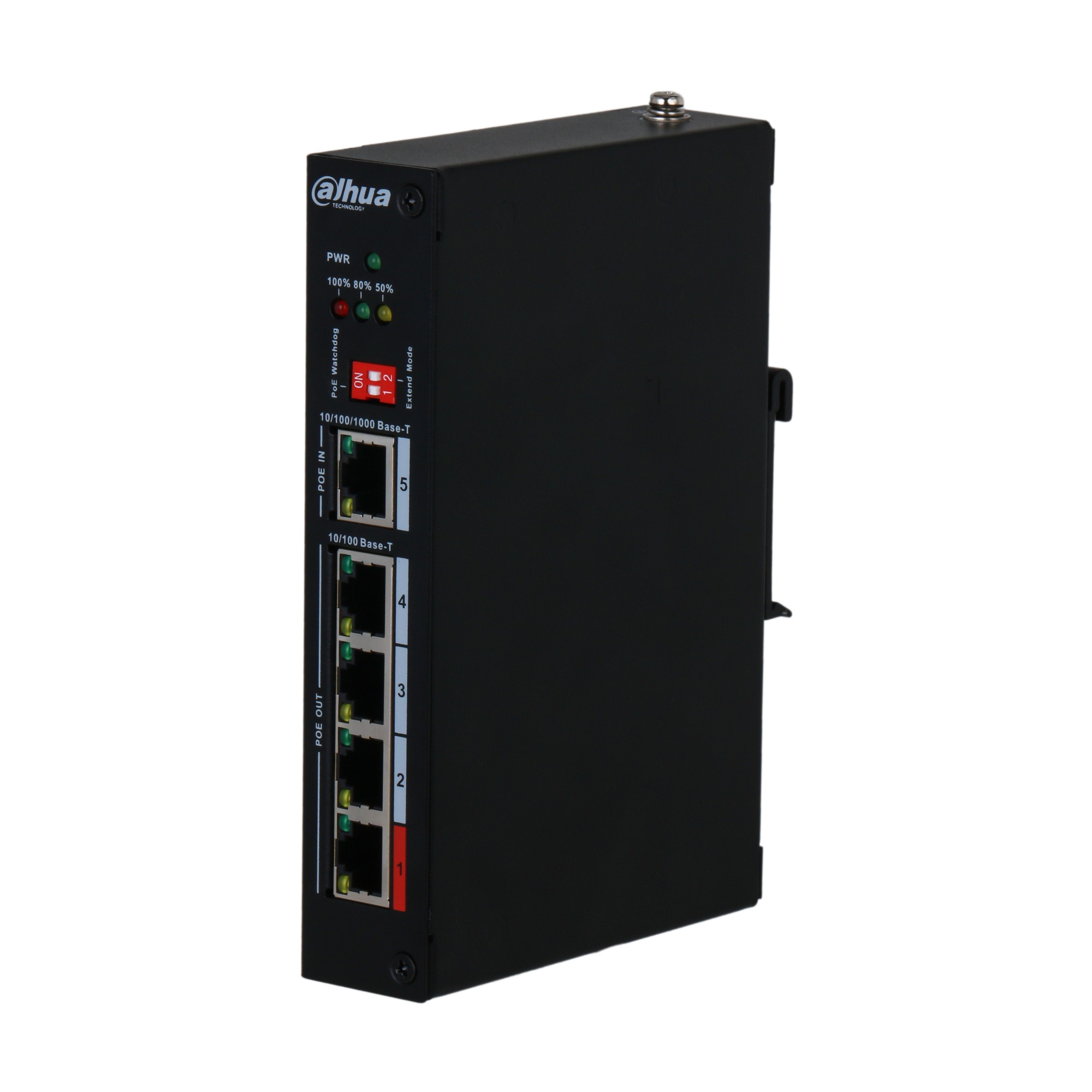

DH-PFT1500 DAHUA 5-PORT PoE EXTENDER 4 OUT / 1 IN - DIN MODULE

Part No:DH-PFT1500

Stock:26 In Stock

EAN Code:6923172531926

£64.48 Excl. VAT

£77.38 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

5-PORT PoE EXTENDER 4 OUT / 1 IN - DIN MODULE

Introduction

The Device is a hardened PoE extender. It works together with conventional PoE devices to extend their maximum base transmission distance to 350 meters.

Specifications

Performance
Jumbo frames supportYes
MTBF (transmitter)66.37 h
MAC address table4000 entries
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
TypeNetwork transmitter
Maximum transfer distance250 m
Power over Ethernet (PoE)Yes
Data transfer rate1000 Mbit/s
Technical details
Jumbo frames supportYes
Mounting typeDesk
MAC address table4000 entries
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
LED indicatorsPoE
TypeNetwork transmitter
Maximum transfer distance250 m
Power over Ethernet (PoE)Yes
Data transfer rate1000 Mbit/s
Sustainability complianceYes
Compliance certificatesCE, Federal Communications Commission (FCC)
Network
Cabling technology10/100/1000Base-T(X)
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports & interfaces
Power over Ethernet (PoE) ports quantity4
Ethernet LAN (RJ-45) ports5
Host interfaceRJ-45
Design
Housing materialMetal
Mounting typeDesk
LED indicatorsPoE
Product colourBlack
Quantity per pack1 pc(s)
Power
Power consumption (transmitter) (max)90 W
Power over Ethernet (PoE)Yes
Power consumption (typical)5 W
Total Power over Ethernet (PoE) budget90 W
Operational conditions
Operating relative humidity (transmitter)5 - 95%
Operating temperature (T-T)-30 - 65 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width150 mm
Depth100 mm
Height30 mm
Weight470 g
Colour
Product colourBlack
Endurance
MTBF (transmitter)66.37 h
Packaging data
Package typeBox
Package width265 mm
Package depth238 mm
Package height76 mm
Package weight650 g
