INTELLINET/MANHATTAN 507486 INTELLINET/MANHATTAN Gigabit SFP Tranceiver LWL 1000Base Mini Gbic

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

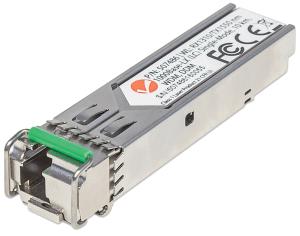

507486 INTELLINET/MANHATTAN Gigabit SFP Tranceiver LWL 1000Base Mini Gbic

Part No:507486

Stock:1 In Stock

EAN Code:0766623507486

£34.66 Excl. VAT

£41.59 Incl. VAT

price matchPrice Match
Guarantee
Delivery7-12 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

Gigabit SFP Tranceiver LWL 1000Base Mini Gbic

Introduction

Gigabit Fibre SFP Optical Transceiver Module _x000D_
_x000D_
The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. _x000D_
_x000D_
Small Size for High-Density Fibre Connections _x000D_
The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. _x000D_
_x000D_
Compatibility _x000D_
Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 507486) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-BX-D, compatibility to your Cisco gear is provided. _x000D_
_x000D_
Hot-Pluggable _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. _x000D_
_x000D_
Digital Diagnostics Monitoring (DDM) _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module (model 507486) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time. _x000D_
_x000D_
WDM (bi-directional wavelength division multiplexing) Technology Advantage _x000D_
The Intellinet Network Solutions Gigabit Fibre WDM Bi-Directional SFP Optical Transceiver Module utilizes a single strand of fibre to transmit network traffic on separate receive and transmit wavelengths (1310/1550 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without laying a second fibre cable. Note that this transceiver (model 507486) must be used in conjunction with item 507509.

Specifications

Performance
SFP transceiver typeFiber optic
Ethernet LANYes
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Link budget16 dB
Fiber optic connectorLC
Networking standardsIEEE 802.3z
Maximum transfer distance10000 m
Fiber ports quantity1
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Duplex systemFull
Cabling technology1000Base-LX
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Product colourMetallic
Hot-Plug supportYes
Harmonized System (HS) code85369010
Features
Product colourMetallic
Hot-Plug supportYes
RX sensitivity-24 dB
Power
Power consumption (typical)1 W
Certificates
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Network
SFP transceiver typeFiber optic
Fiber optic connectorLC
Networking standardsIEEE 802.3z
Fiber ports quantity1
Cabling technology1000Base-LX
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Weight & dimensions
Width14 mm
Depth57 mm
Height12 mm
Weight37 g
Packaging content
Quantity per pack1 pc(s)
Technical details
Hot-Plug supportYes
Maximum transfer distance10000 m
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Duplex systemFull
Cabling technology1000Base-LX
Ethernet LANYes
Compliance certificatesRoHS
Ports & interfaces
Fiber ports quantity1
Logistics data
Quantity per pack1 pc(s)
Harmonized System (HS) code85369010
Other features
RX sensitivity-24 dB
