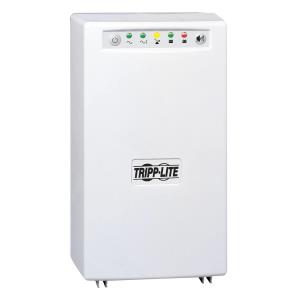

EATON CORPORATION SMX1200XLHG EATON CORPORATION SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order

SMX1200XLHG EATON CORPORATION SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

Part No:SMX1200XLHG

Stock:1 In Stock

EAN Code:0037332140425

£772.74 Excl. VAT

£927.29 Incl. VAT

price matchPrice Match
Guarantee
Delivery1-2 days delivery
customer satisfaction100% Customer
Satisfaction
secure paymentSecure Payment
Options
Accept Purchase orders
We accept Purchase Orders from Education Sector, Hospitals, Police, Councils and more.Choose Payment Option "Purchase Order" While placing your order online.

Any Questions?

If you have any questions about price and availability of the product, please drop us a query below:

SmartPro 230V 1kVA 750W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, Expandable Runtime

Introduction

The SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout.

Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output, without drawing battery power. The SMX1200XLHG’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps.

This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15-centimeter (six-inch) dongle. All six outlets provide both backup protection and surge protection, rated to 340 joules.

The SMX1200XLHG also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with included PowerAlert® software for safe, unattended system shutdown in the event of a prolonged power failure.

This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty.

Specifications

Power
Output power750 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)230 V
Output operation voltage (max)230 V
Surge energy rating340 J
Maximum current10 A
Output power capacity1 kVA
Performance
LED indicatorsYes
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Country of originChina
Output power750 W
Input operation voltage (min)230 V
Input operation voltage (max)230 V
Output operation voltage (min)230 V
Output operation voltage (max)230 V
Surge energy rating340 J
Maximum current10 A
EMI/RFI noise filteringYes
Surge protectionYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity6 AC outlet(s)
AC outlet typesC13 coupler
Power plugC14 coupler
Battery
Battery recharge time4.5 h
Typical backup time at half load27.5 min
Typical backup time at full load11 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Form factorTower
LED indicatorsYes
Product colourWhite
CertificationCE, IEC 60601-1
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Harmonized System (HS) code85078000
Weight & dimensions
Package width309.9 mm
Package depth339.9 mm
Package height469.9 mm
Weight20.6 kg
Width190.5 mm
Package weight22.1 kg
Height323 mm
Depth231 mm
Packaging data
Package width309.9 mm
Package depth339.9 mm
Package height469.9 mm
Package weight22.1 kg
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width309.9 mm
Master (outer) case length339.9 mm
Master (outer) case height469.9 mm
Master (outer) case gross weight22.1 kg
Harmonized System (HS) code85078000
Certificates
CertificationCE, IEC 60601-1
Other features
InterfaceUSB; DB9
