EU Product - LevelOne Panel Antenne direkti./Dual-Polariz.15dBi 5GHz
Introduction

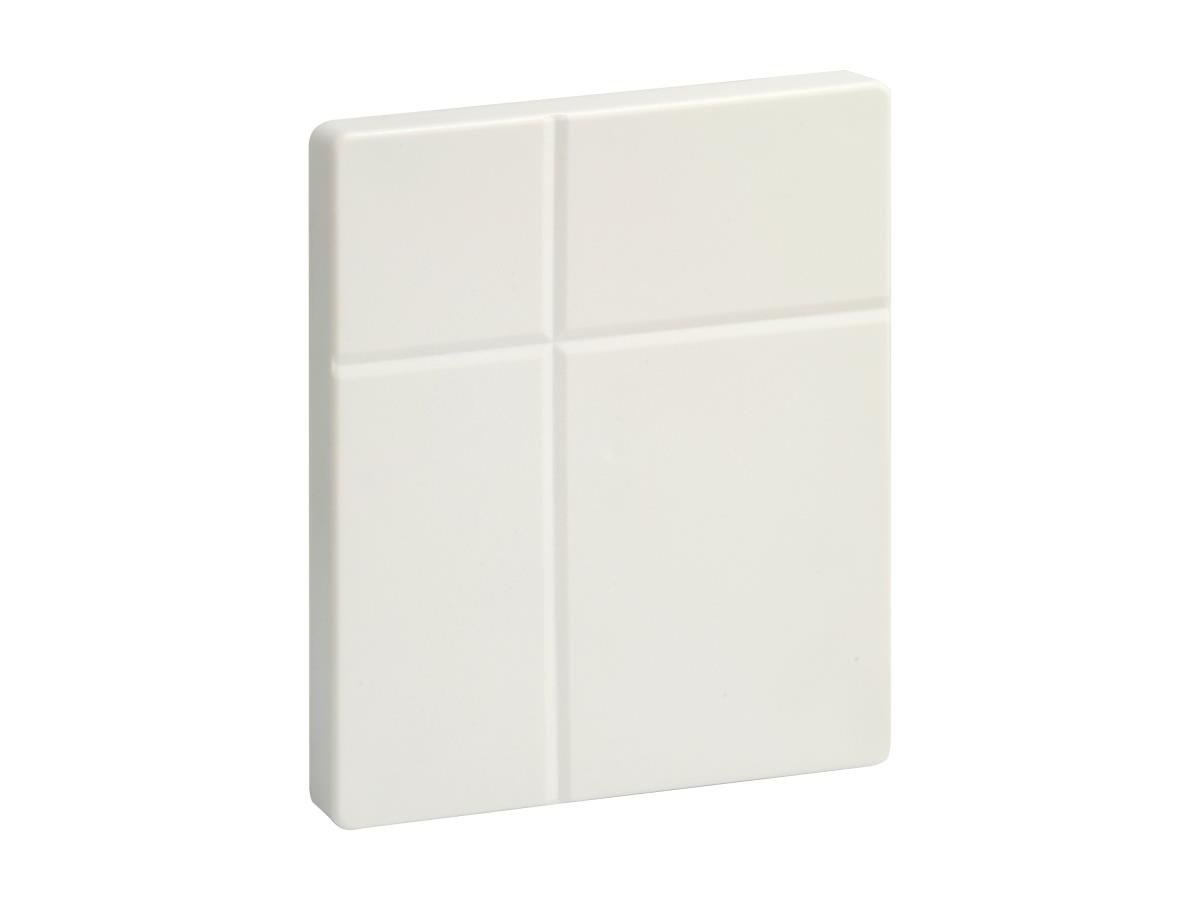

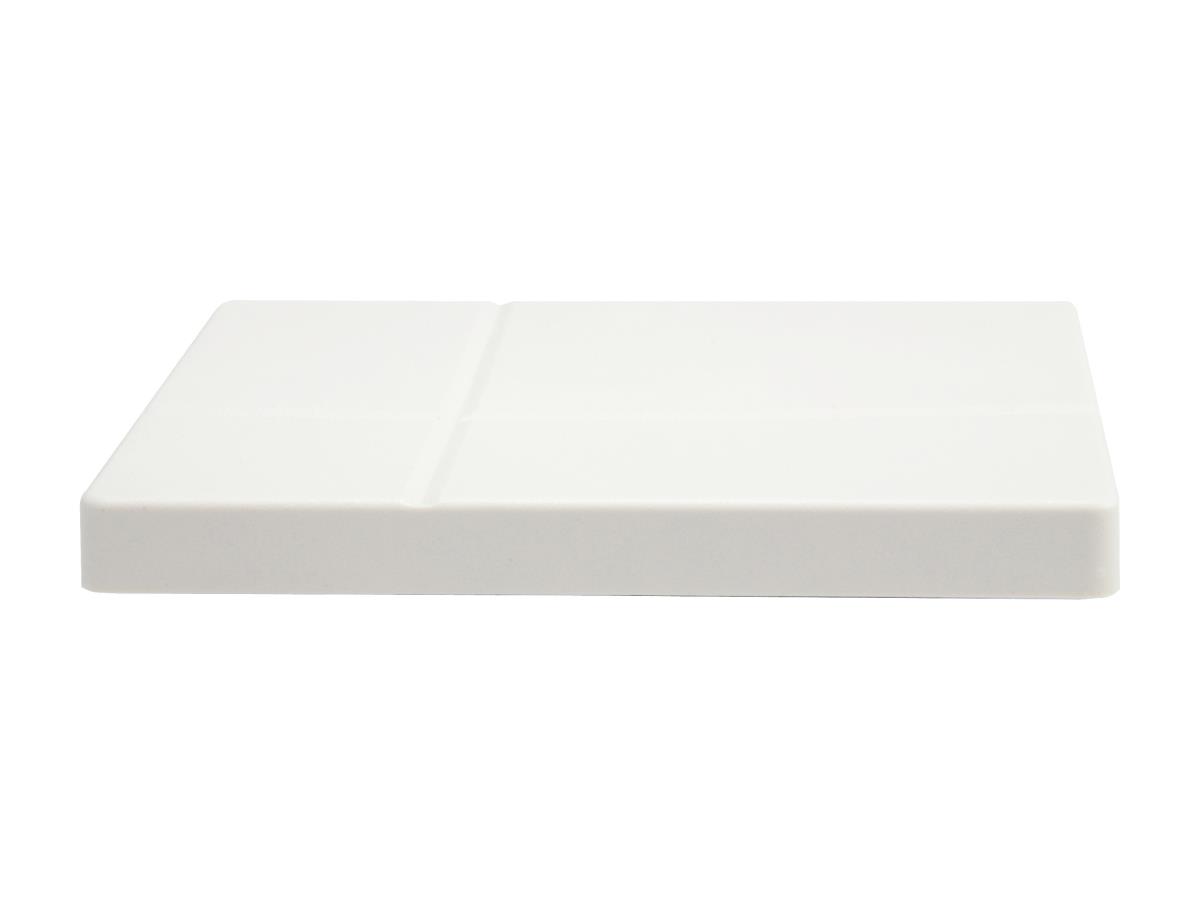

The LevelOne WAN-9151 is a directional, dual-polarization antenna that can be mounted either indoors or outside. Dual-polarization offers the flexibility of two different communication channels receiving simultaneously, while a high gain of 15dBi offers better range and signal strength. If mounted outdoors the IP65-rated weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.
- Provides 15dBi directional operation
- Directional operation provides extended point to point coverage
- For IEEE 802.11a/n Wireless applications in 5 GHz frequency range
- Dual-Polarization to avoid interference
- Low wind loading
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 15 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Frequency band | 5.1 ~ 5.9 GHz |
| Vertical beam width | 15° |
| Impedance | 50 O |
| Horizontal beam width | 22° |
| Features | |
| Survival wind speed | 180 km/h |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Maximum cable loss with connectors | -10 dB |
| Country of origin | Taiwan |
| Antenna gain level (max) | 15 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Frequency band | 5.1 ~ 5.9 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Vertical beam width | 15° |
| Purpose | Indoor & outdoor |
| Polarization | Dual polarization |
| Impedance | 50 O |
| Horizontal beam width | 22° |
| Product colour | Grey |

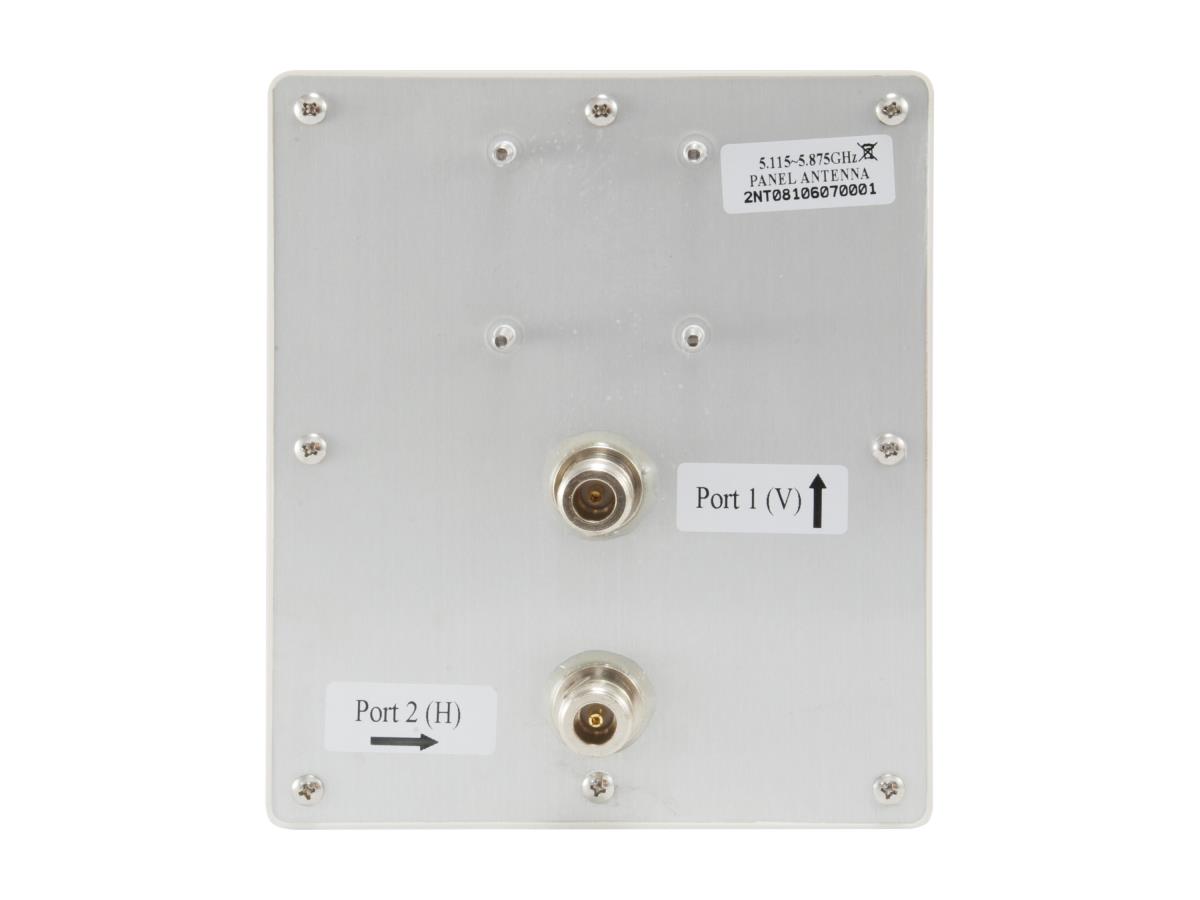

| Antenna connector type | N-type |
| Technical details | |
| Antenna gain level (max) | 15 dBi |
| Frequency band | 5.1 ~ 5.9 GHz |
| Antenna type | Directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Vertical beam width | 15° |
| Purpose | Indoor & outdoor |
| Polarization | Dual polarization |
| Impedance | 50 O |
| Horizontal beam width | 22° |
| Antenna connector type | N-type |
| Harmonized System (HS) code | 85177100 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Colour | |
| Product colour | Grey |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Package width | 161 mm |
| Package depth | 218 mm |
| Package height | 74 mm |
| Package weight | 726 g |
| Weight | 208 g |
| Width | 137.5 mm |
| Depth | 162.5 mm |
| Height | 16 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Logistics data | |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 340 mm |
| Master (outer) case gross weight | 15.5 kg |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85177100 |
