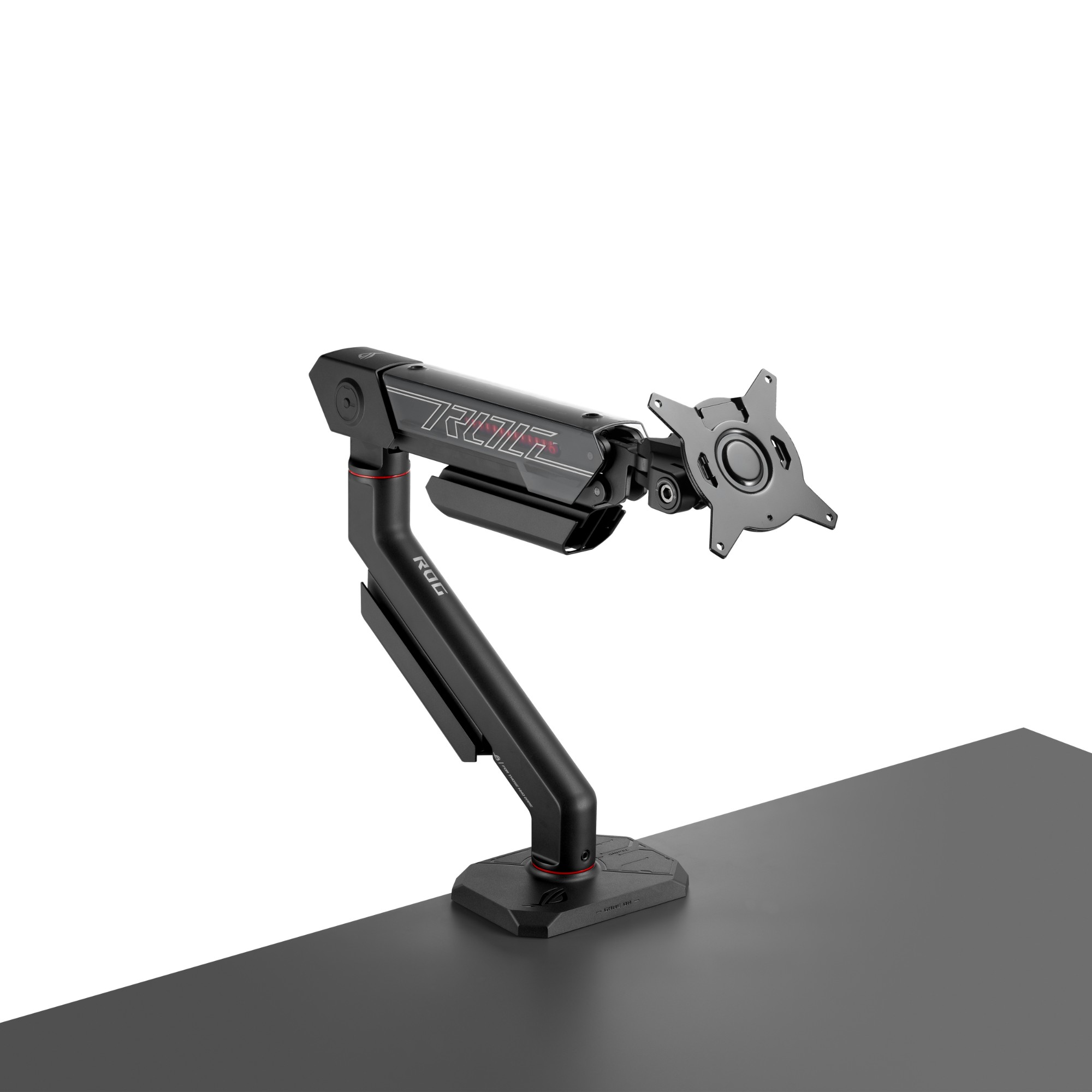

EU Product - AAS01R ROG Ergo Arm
Introduction
ROG ERGO MONITOR ARM
FREEDOM TO MOVE, FREEDOM TO GAME
Precision and Comfort
for Your Battlestation
Level up your gaming experience with the ROG Ergo Monitor Arm. Its compact bracket design maximizes desk space and provides perfect viewing angles with extensive height, tilt, and swivel adjustments for ultimate ergonomic comfort.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 13.5 kg |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity | 13.5 kg |
| Maximum screen size | 124.5 cm (49") |
| Extension arm (max) | 63.8 cm |
| Clamp mount desk thickness (max) | 8 cm |
| Mounting hole range | 10 - 45 mm |
| Maximum weight capacity (per curved/ultra-wide display) | 10.5 kg |
| Ergonomics | |
| Cable management | Yes |
| Height adjustment | Yes |
| Pivot angle | 0 - 360° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -25 - 80° |
| Angle of rotation | 360° |
| Pan range | 0 - 360° |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Design | |
| Product colour | Black |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 578 mm |
| Depth | 656 mm |
| Height | 154 mm |
| Weight | 5.1 kg |
| Package width | 775 mm |
| Package depth | 135 mm |
| Package height | 232 mm |
| Package type | Box |
| Package weight | 6.6 kg |
| Packaging data | |
| Package width | 775 mm |
| Package depth | 135 mm |
| Package height | 232 mm |
| Package type | Box |
| Package weight | 6.6 kg |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
