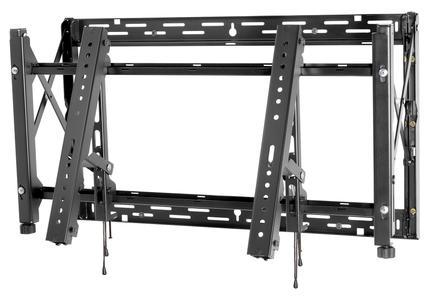

DS-VW765LAND
Introduction

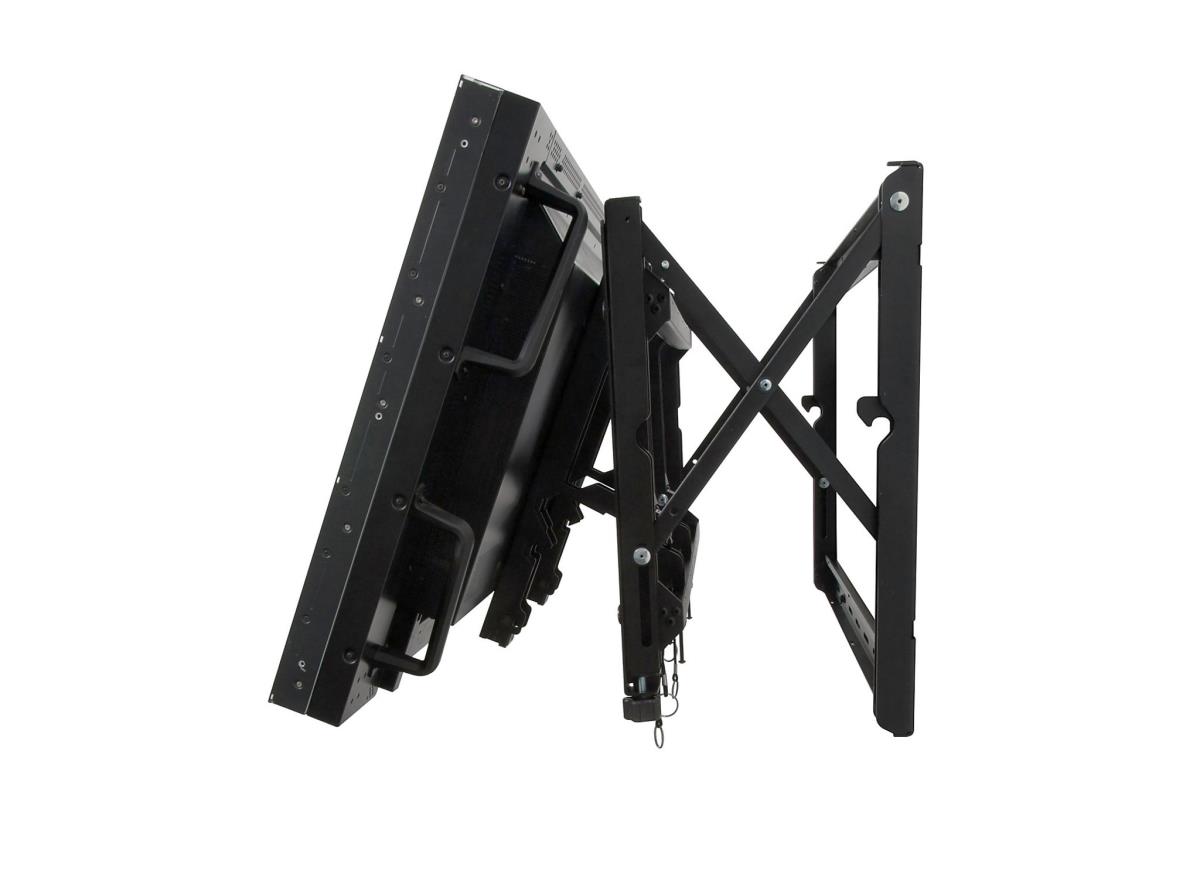

Video walls should be easy to configure, quick to install, and a snap to maintain. No, it’s not a dream, it’s the DS-VW765-LAND Full-Service Video Wall Mount from Peerless-AV. Create any configuration imaginable, but leave the tedious calculations to the custom wall plate spacers. Just install the first mount. Then use the custom wall plate spacers to perfectly place each additional mount on the wall. No measuring, no guessing, no mistakes. It couldn’t be simpler. The innovative design combined with a mount that is ready-to-install right out of the box makes this the fastest installing video wall system ever. Now in a design that is 2% lighter than previous models and loaded with time saving features like no-tool-required micro-adjustments and easy-access to any display for quick serviceability it’s the ultimate video wall mounting solution.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 101.6 cm (40") |
| Maximum weight capacity | 56.8 kg |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 700 x 400 mm |
| Maximum screen size | 165.1 cm (65") |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 890 mm |
| Depth | 97 mm |
| Height | 508 mm |
| Weight | 15 kg |
| Weight (imperial) | 17.7 kg (39 lbs) |
| Package width | 943 mm |
| Package depth | 108 mm |
| Package height | 565 mm |
| Package weight | 17.2 kg |
| Packaging data | |
| Package width | 943 mm |
| Package depth | 108 mm |
| Package height | 565 mm |
| Package weight | 17.2 kg |
| Technical details | |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Compliance certificates | RoHS |
| Other features | |
| Screen size compatibility | 1016 - 1651 mm (40 - 65") |
| Dimensions (WxDxH) | 890 x 97 x 508 mm |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
