*Image accuracy is not guaranteed. Please do not rely on the image for your purchase.. ** All heavy items above 25KG will be charged shipping cost as per actual. Please contact us for a shipping quote before placing order
Part No:FPMA-D860BLACK
Stock:1 In Stock
EAN Code:8717371446710

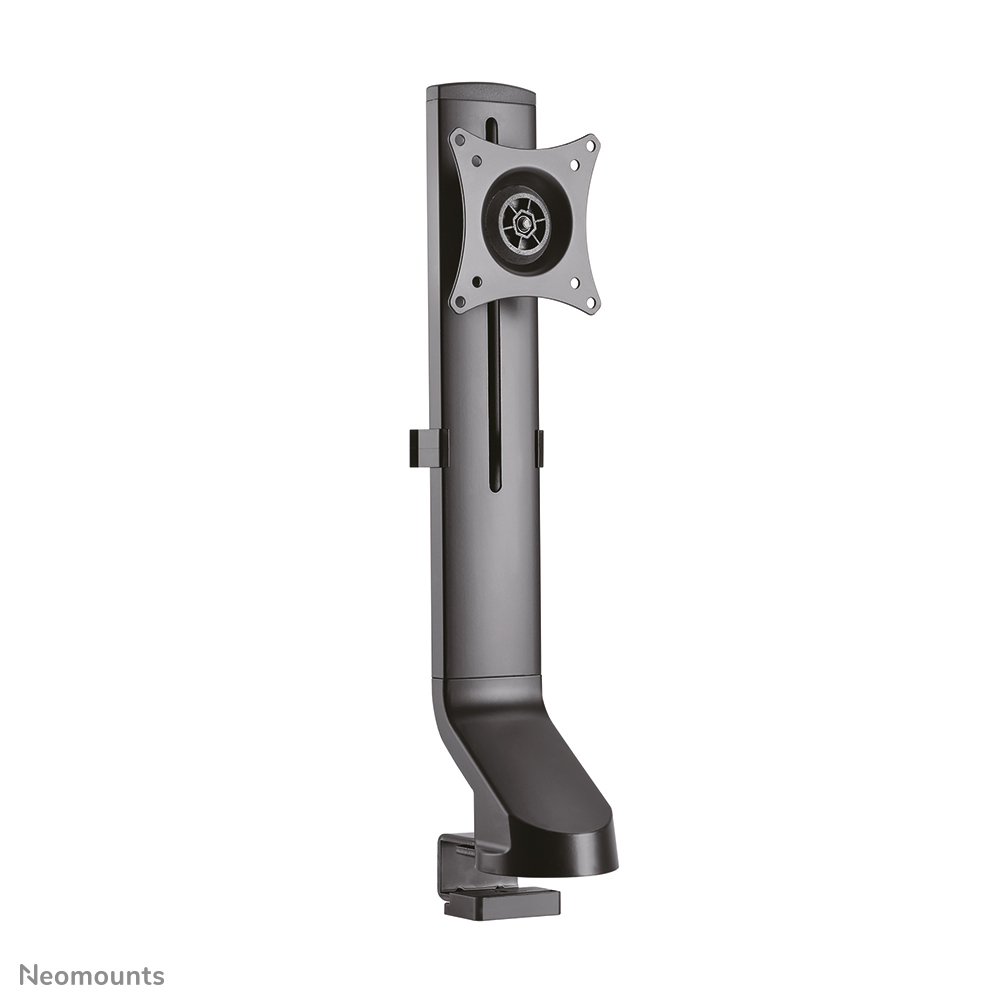

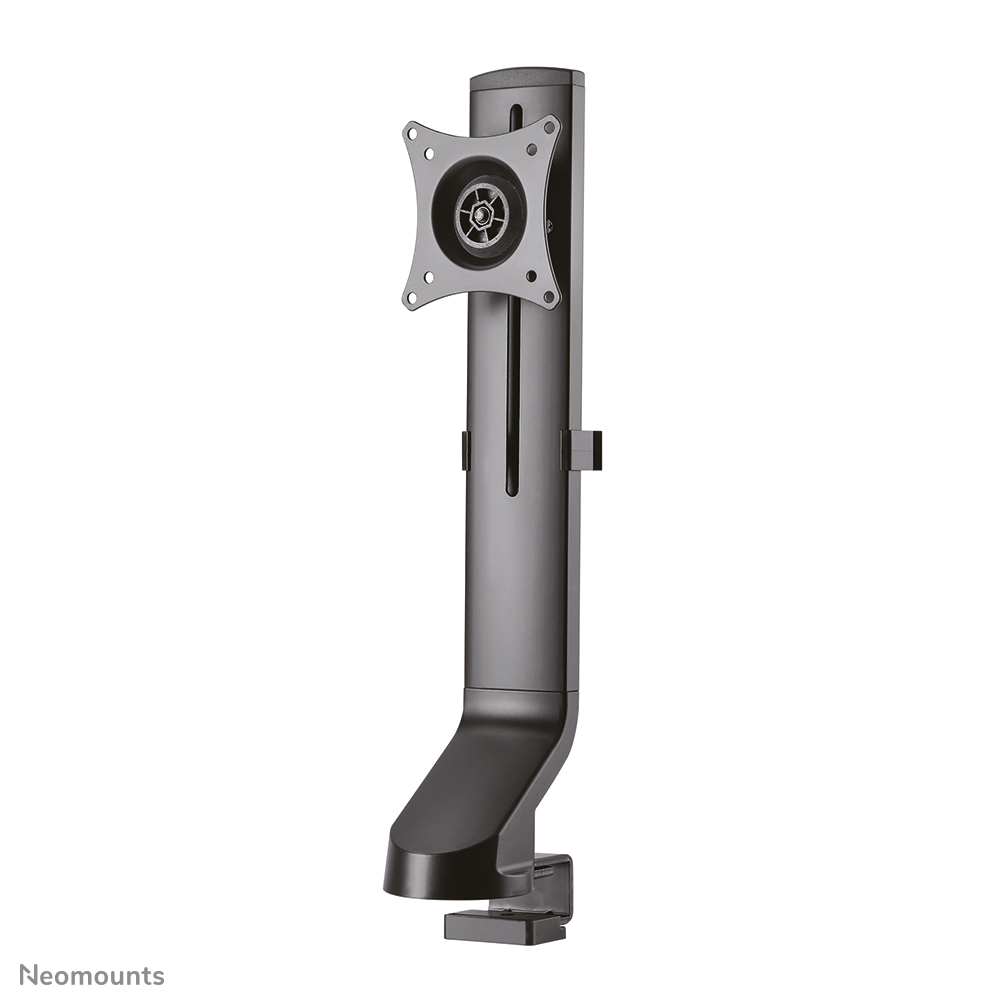

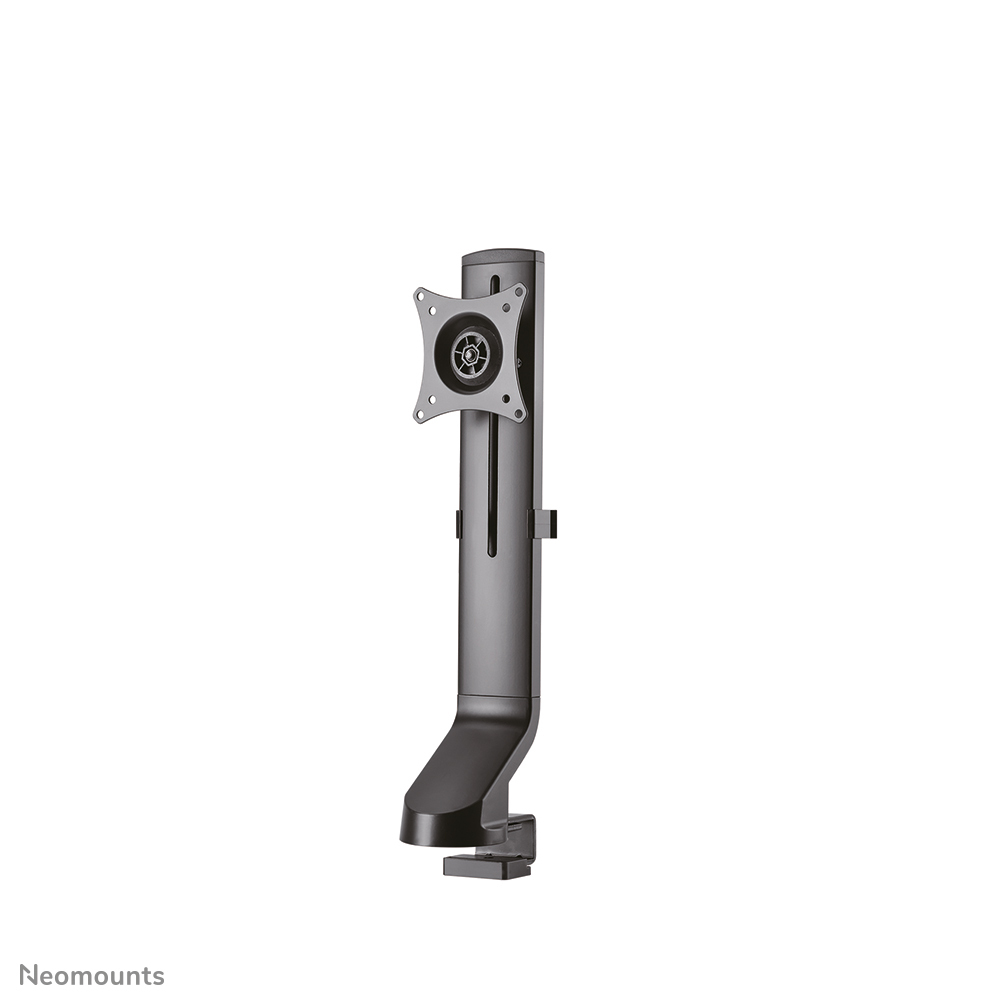

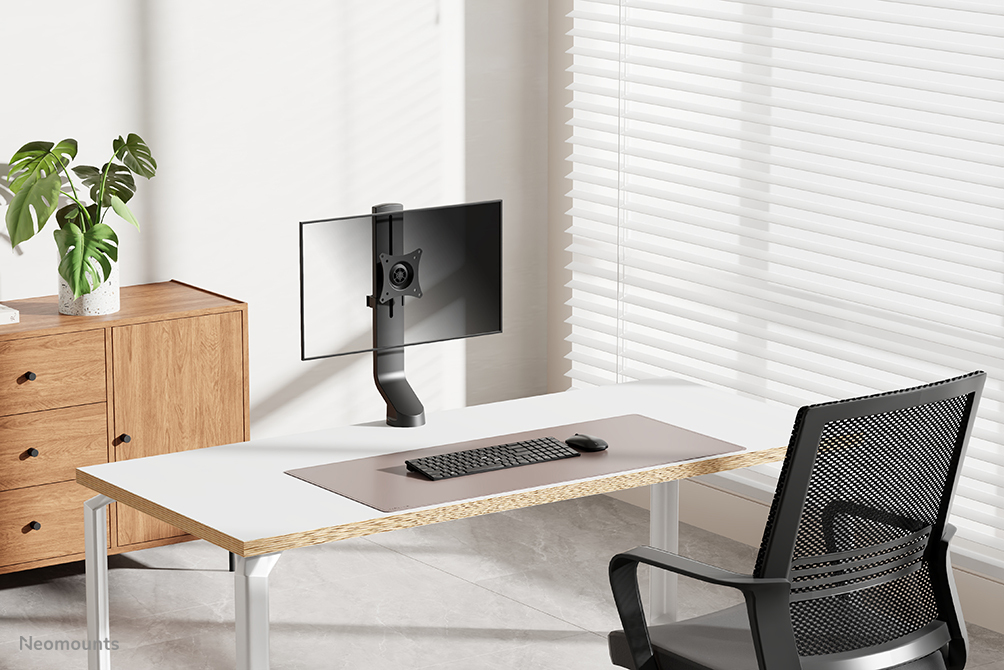

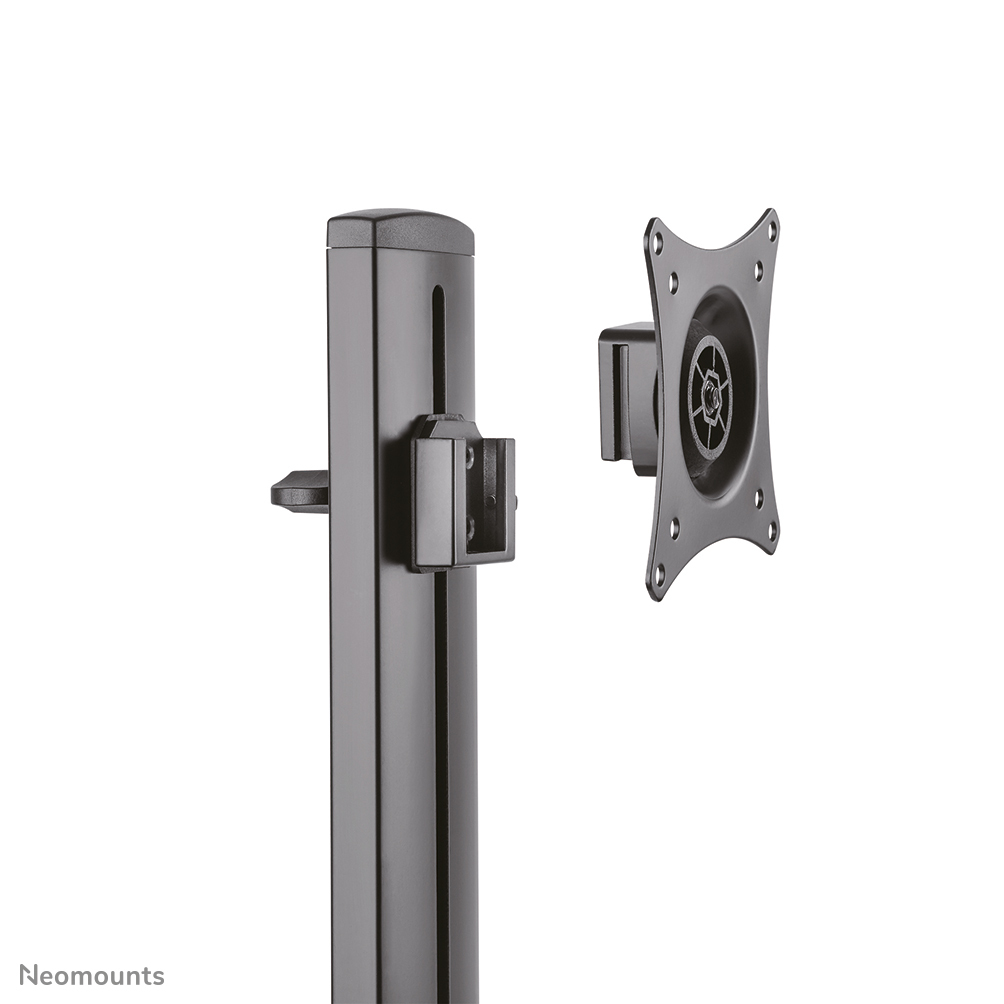

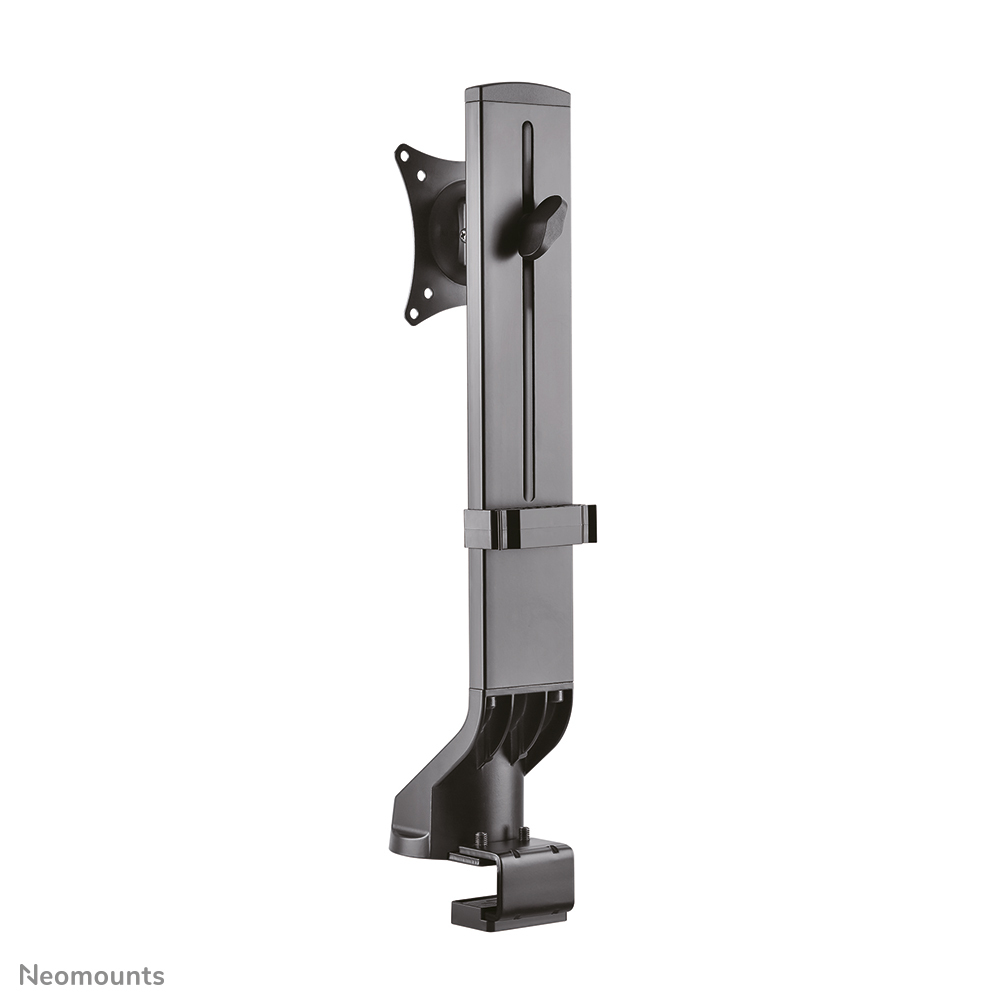

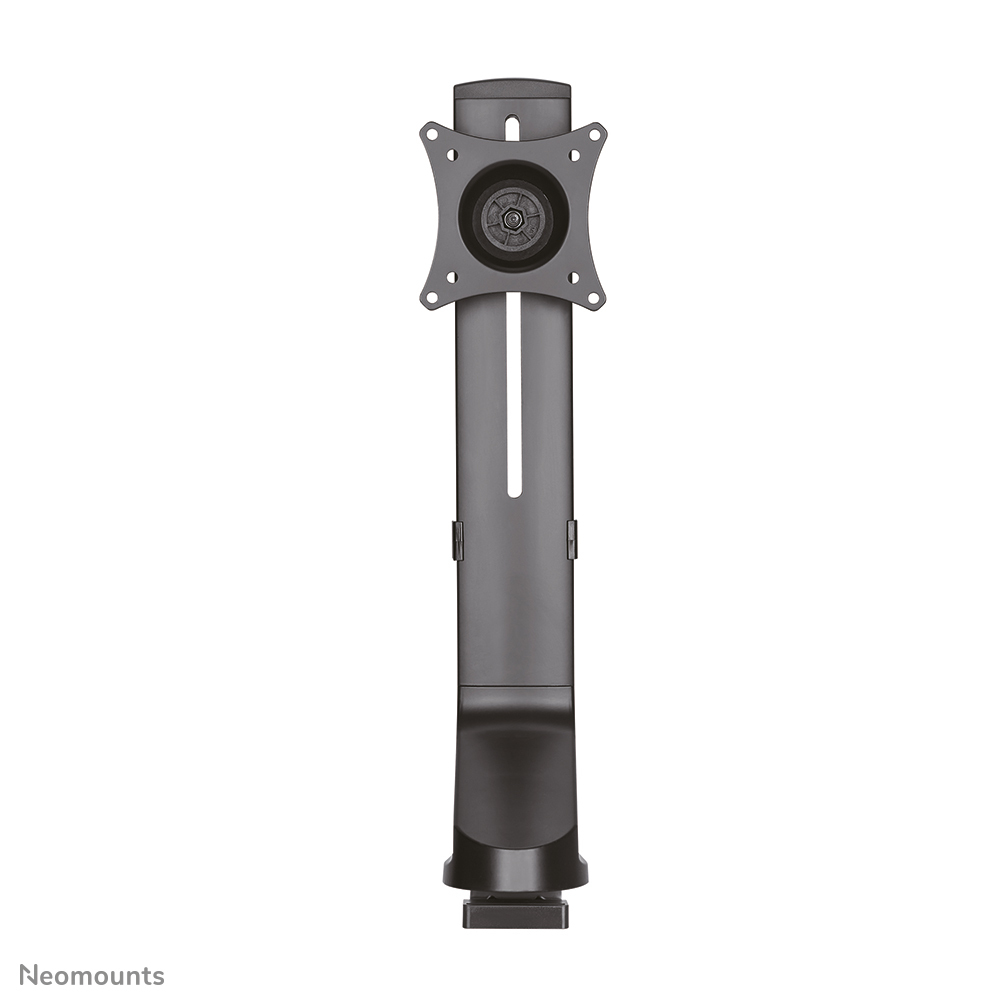

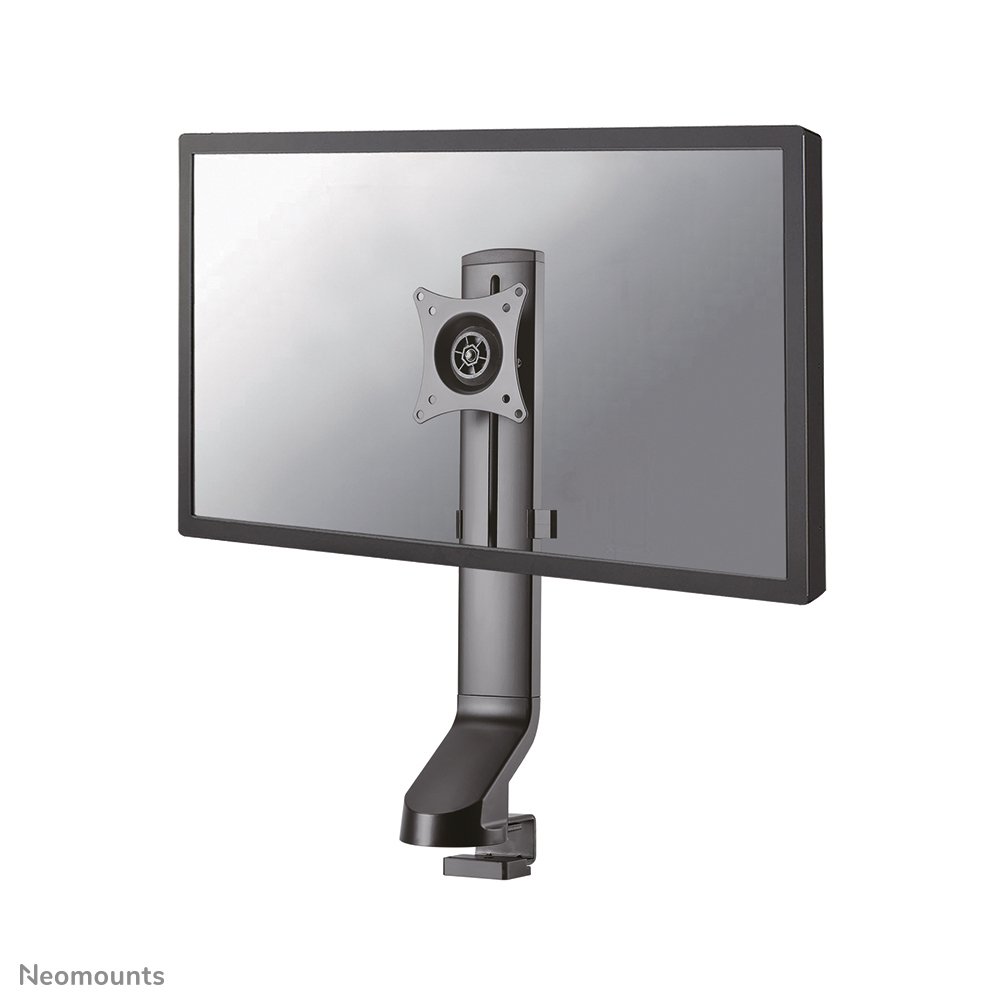

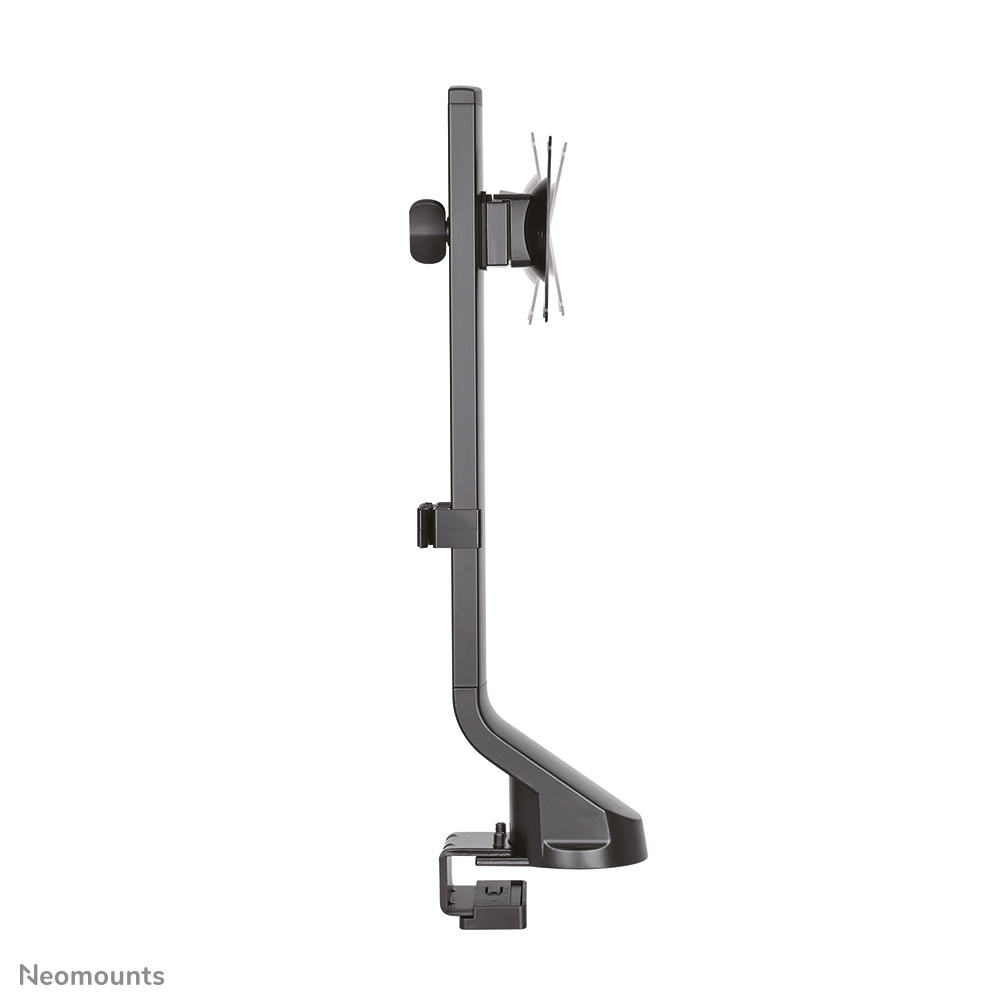

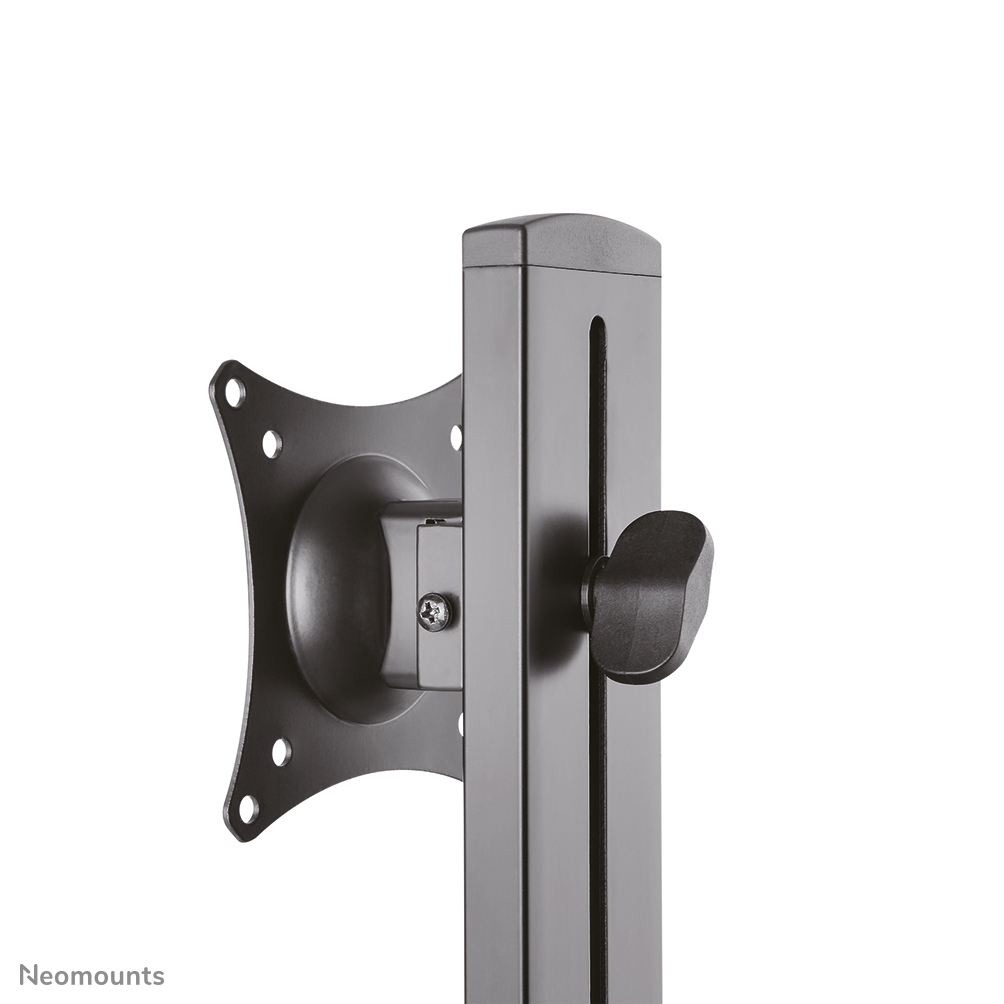

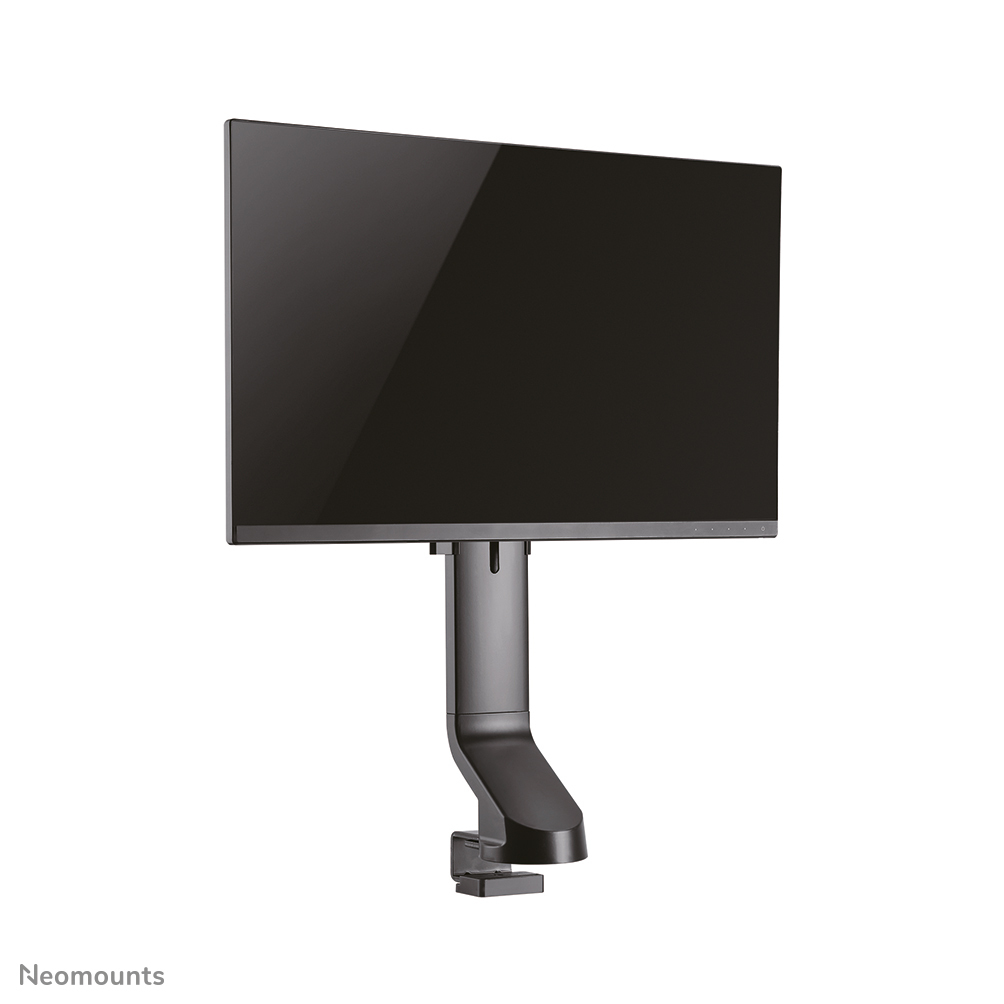

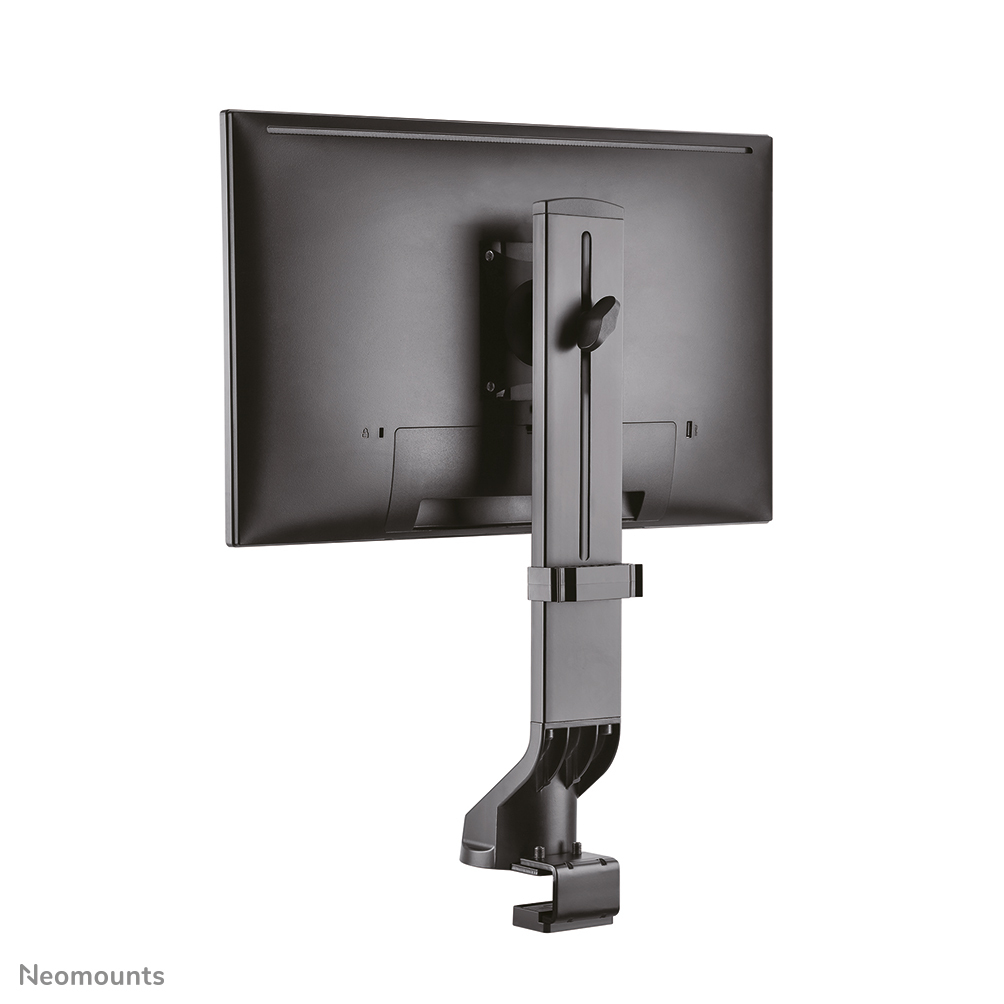

The Neomounts desk mount, model FPMA-D860BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks.

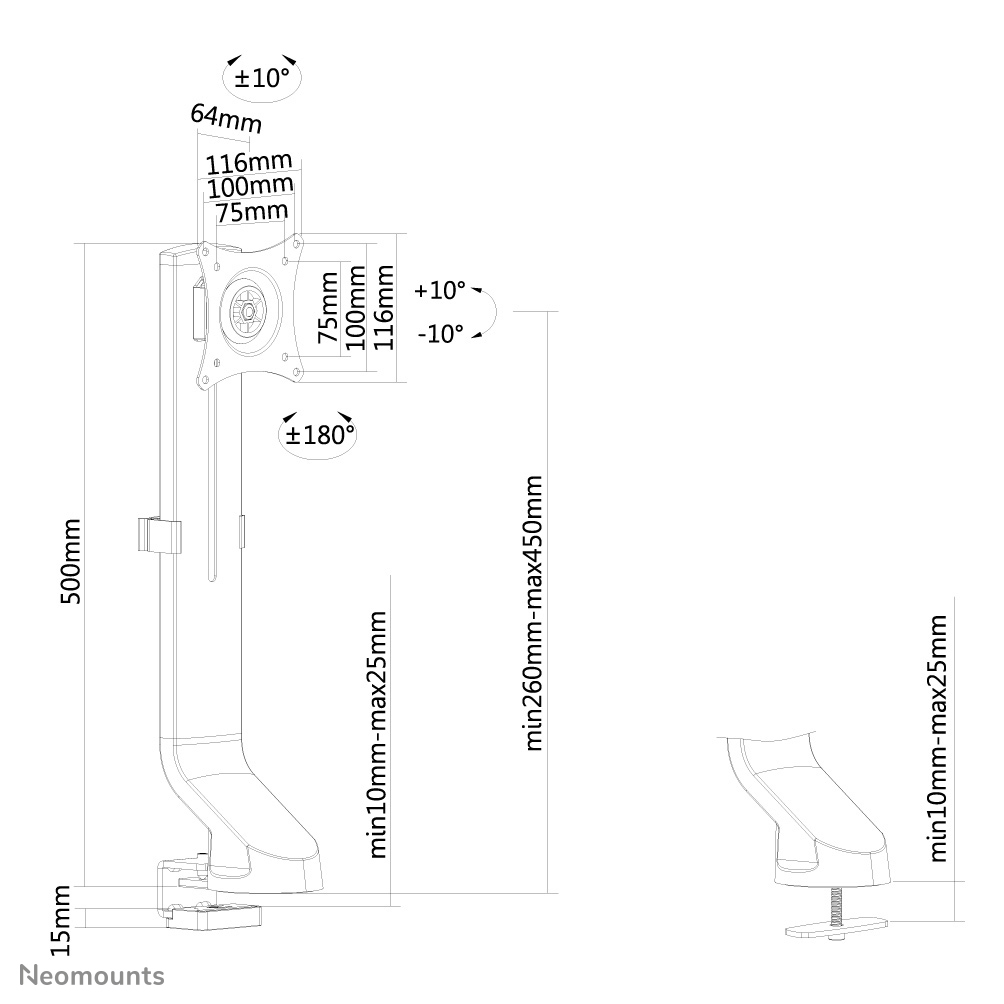

Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres.

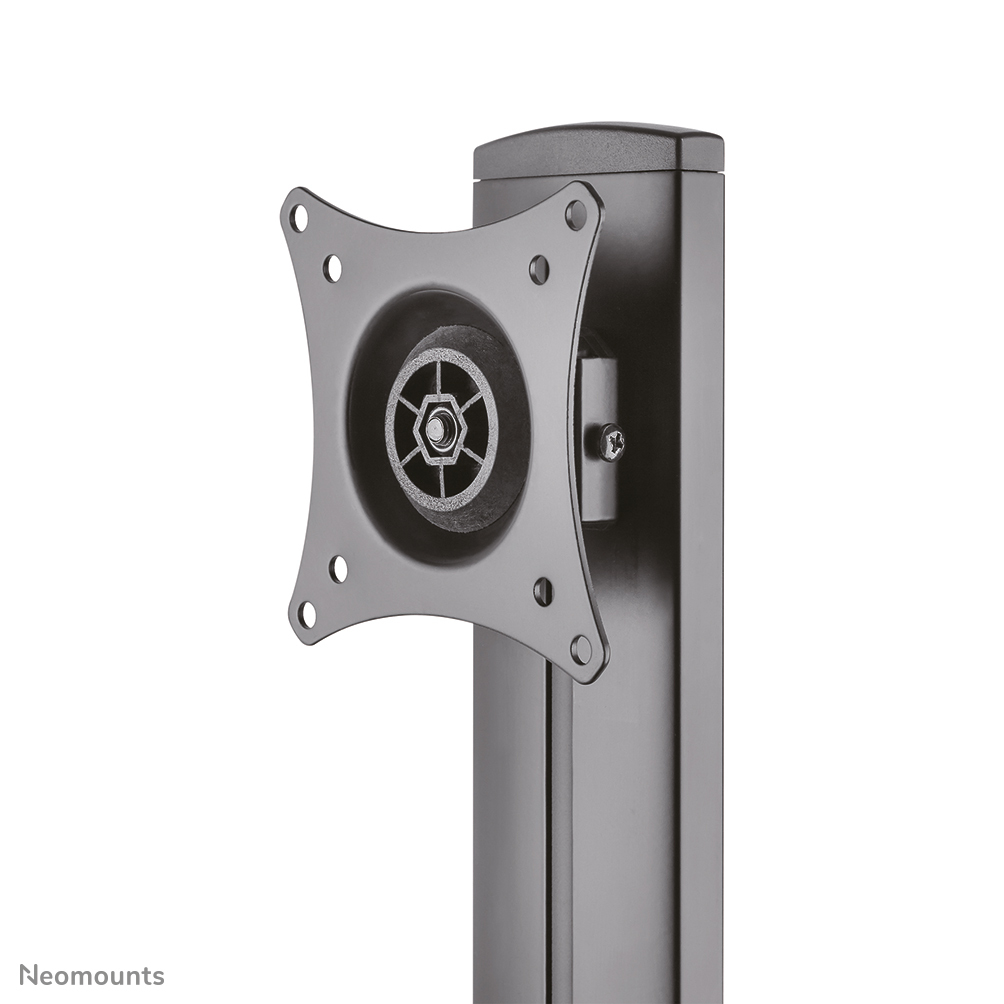

Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

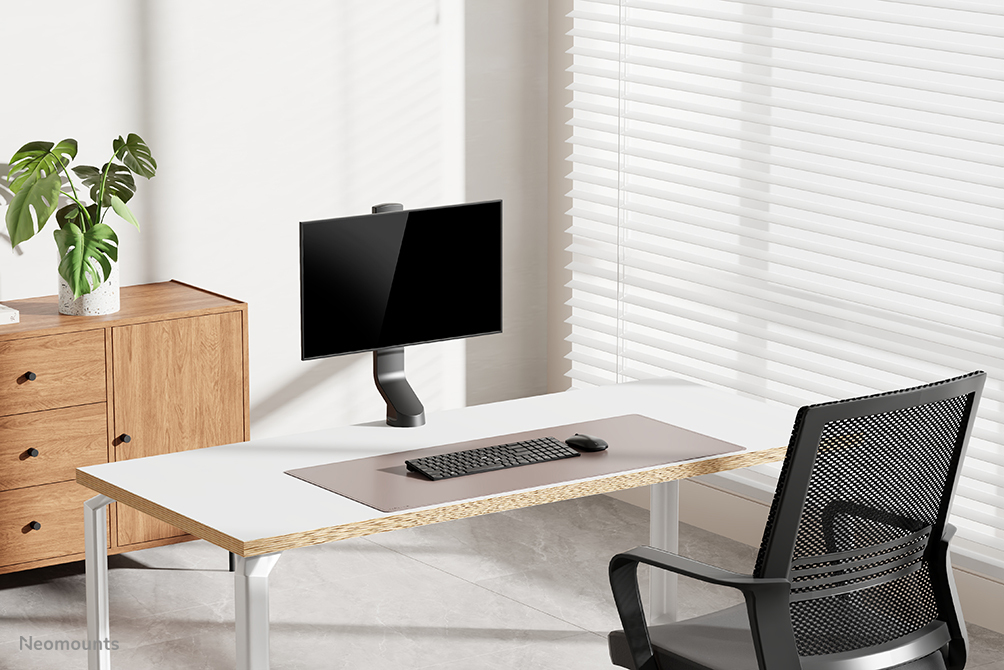

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Mounting | |
---|---|
Desk thickness (max) | 2.5 cm |
Minimum screen size | 25.4 cm (10") |
Panel mounting interface | 75 x 75,100 x 100 mm |
Number of displays supported | 1 |
Mounting type | Desk |
Minimum VESA mount | 75 x 75 mm |
Maximum VESA mount | 100 x 100 mm |

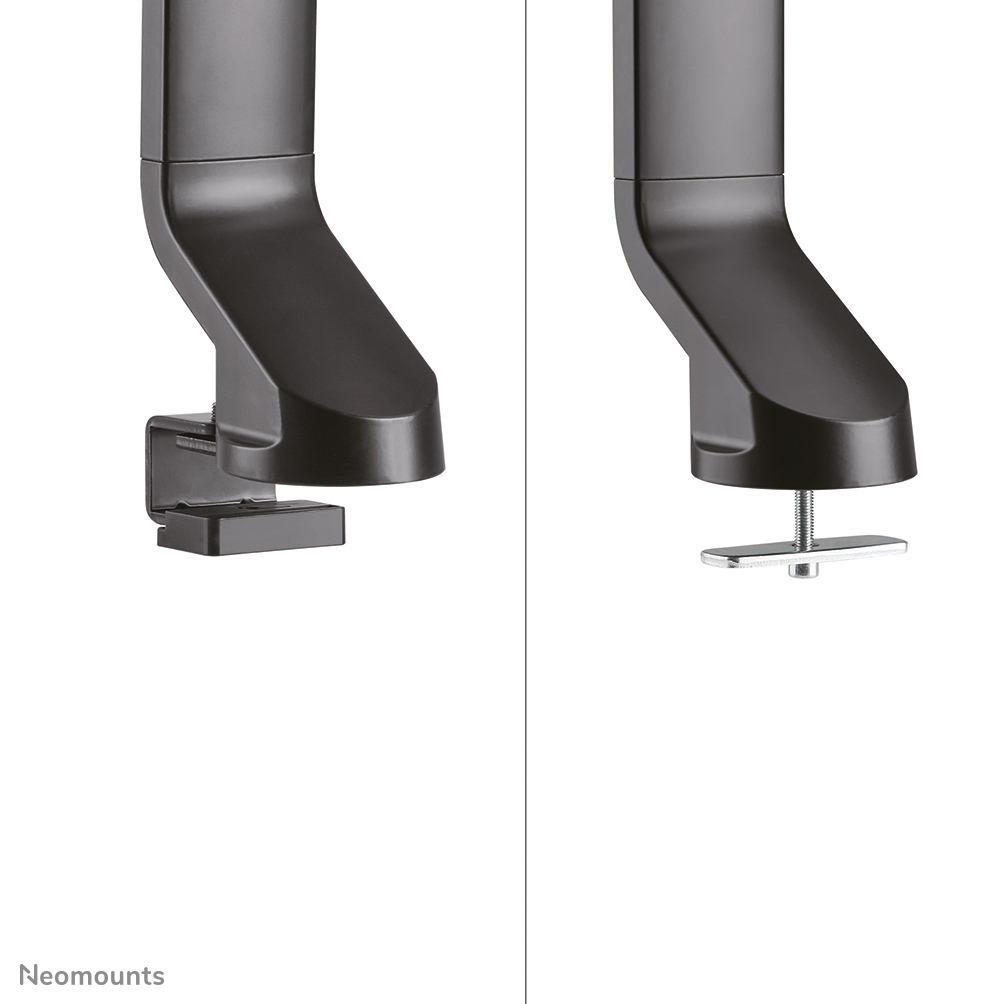

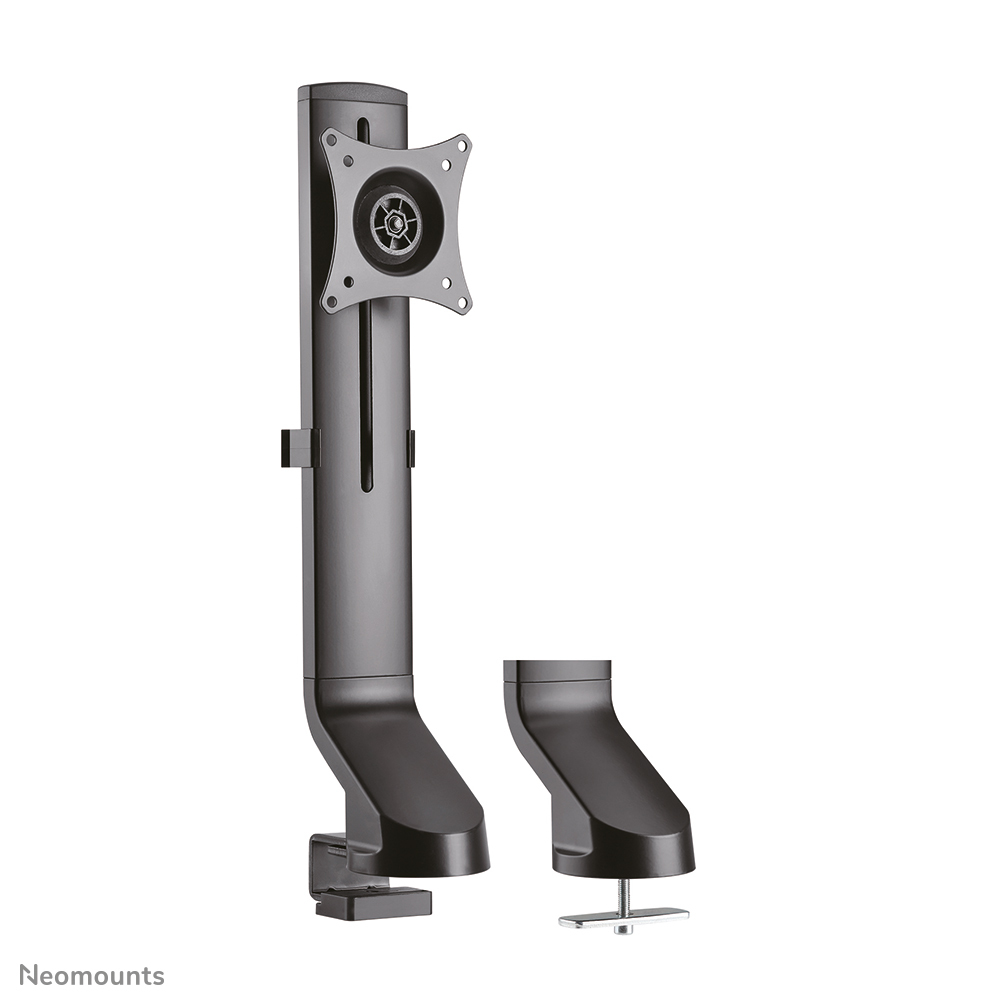

Mounting | Clamp/Grommet |
Maximum weight capacity | 8 kg |
Maximum screen size | 81.3 cm (32") |
Ergonomics | |

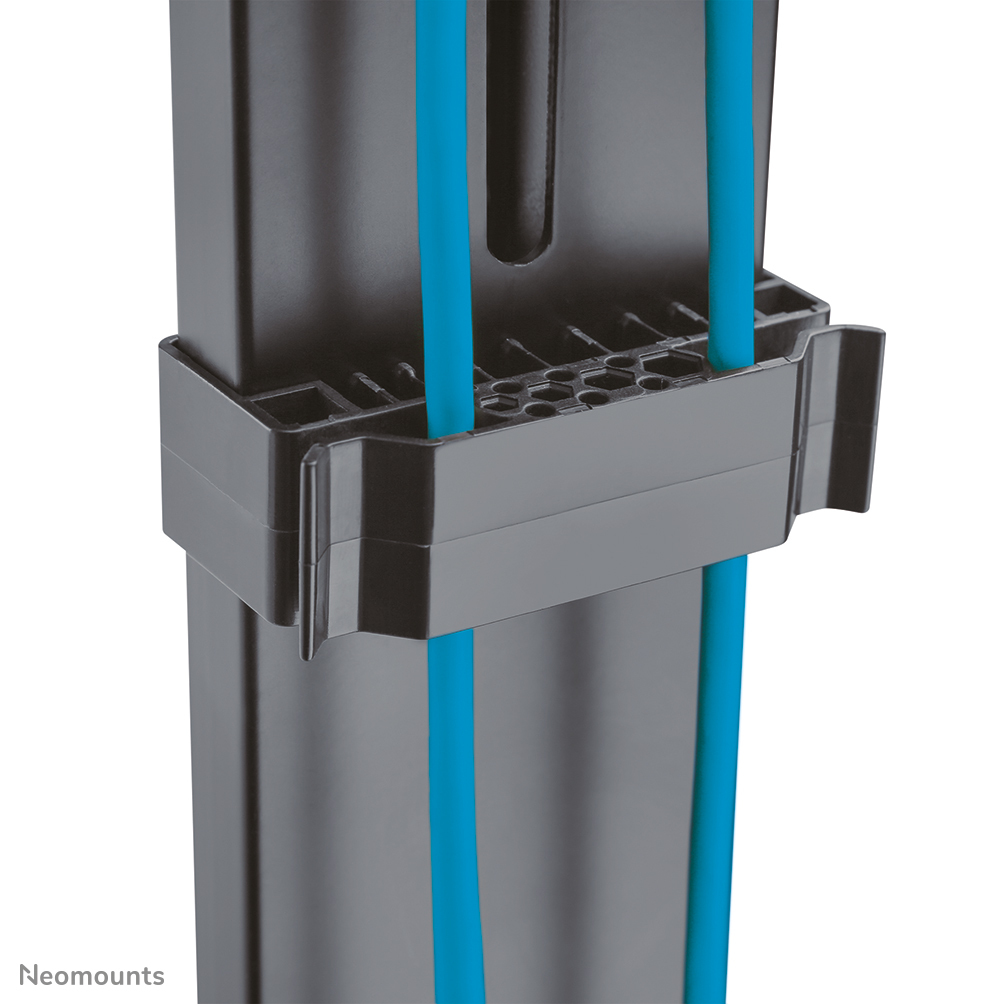

Cable management | Yes |
Depth adjustment range | 0 - 50 mm |
Height adjustment | Yes |
Height adjustment range | 260 - 450 mm |
Swivel angle range | -10 - 10° |
Swivel angle | 20° |
Tilt angle range | -10 - 10° |
Angle of rotation | 360° |
Number of pivot points | 1 |
Height adjustment type | Manual |
Rotating | Yes |
Tilt adjustment | Yes |
Swivelling | Yes |
Technical details | |
Number of pivot points | 1 |
Mounting type | Desk |
Product colour | Black |
Cable management | Yes |
Design | |
Product colour | Black |
Housing material | Steel |
Weight & dimensions | |
Package width | 130 mm |
Package depth | 90 mm |
Package height | 405 mm |
Depth | 50 mm |
Height | 450 mm |
Logistics data | |
Master (outer) case width | 540 mm |
Master (outer) case length | 320 mm |
Master (outer) case height | 445 mm |
Master (outer) case gross weight | 12.5 kg |
Products per master (outer) case | 8 pc(s) |
Products per pallet (EU) | 176 pc(s) |
Master (outer) case net weight | 10 kg |
Harmonized System (HS) code | 7326909890 |
Other features | |
Mounting type | Desk |
Mounting | Clamp/Grommet |
Country of origin | China |
