Kramer Electronics Stereo Power Amplifier (10 Watts per Channel) (900xl)
Introduction
The 900XL is a high performance power amplifier for line level stereo audio signals. The unit accepts unbalanced audio signals on either two RCA or 3.5mm connectors and delivers a speaker output of 10 watts RMS per channel into a 4 ohm load.
Features

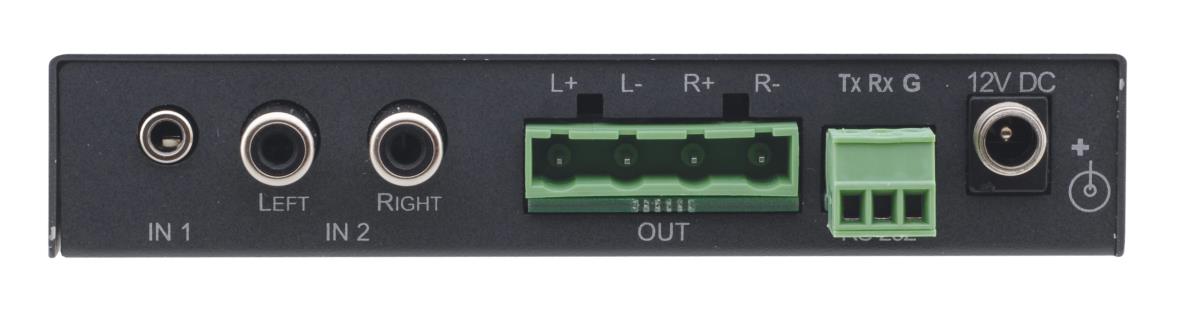

- Inputs - 2 RCA and 3.5mm phone jack.
- Output - 4-pin terminal block.

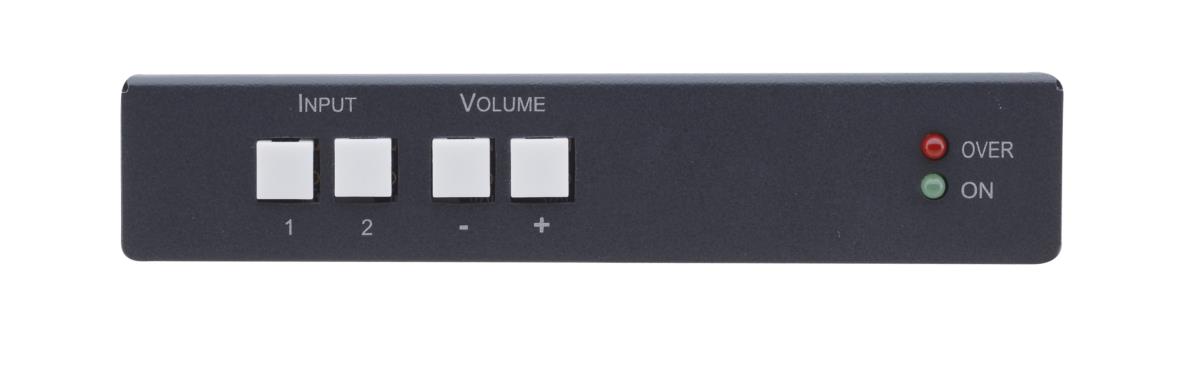

- Control - Volume & input selection from front panel & RS-232.
- Compact Kramer TOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Specifications
| INPUTS: |
1. Stereo audio on a
3.5mm mini-jack connector 2. Stereo audio on RCA connectors |
| OUTPUTS: | 1 stereo differential speaker output |
| MAX. OUTPUT LEVEL: | 18.4Vpp, 10 RMS per channel |
| BANDWIDTH (-3dB): | 25kHz |
| S/N RATIO: | 60dB |
| CONTROLS: |
Gain range: -14.8 to +32dB at high-gain -21.3 to +20.2dB at low-gain |
| COUPLING: | Input: AC; Output: DC |
| AUDIO THD + NOISE: | 2.2% |
| AUDIO 2nd HARMONIC: | 1.2% |
| POWER SOURCE: | 12V DC x 2.3A DC Fuse:4A/16V |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7" x 3.0" x 1.0") W, D, H |
| WEIGHT: | 0.2kg (0.4lbs) |
| ACCESSORIES: | Power supply |
